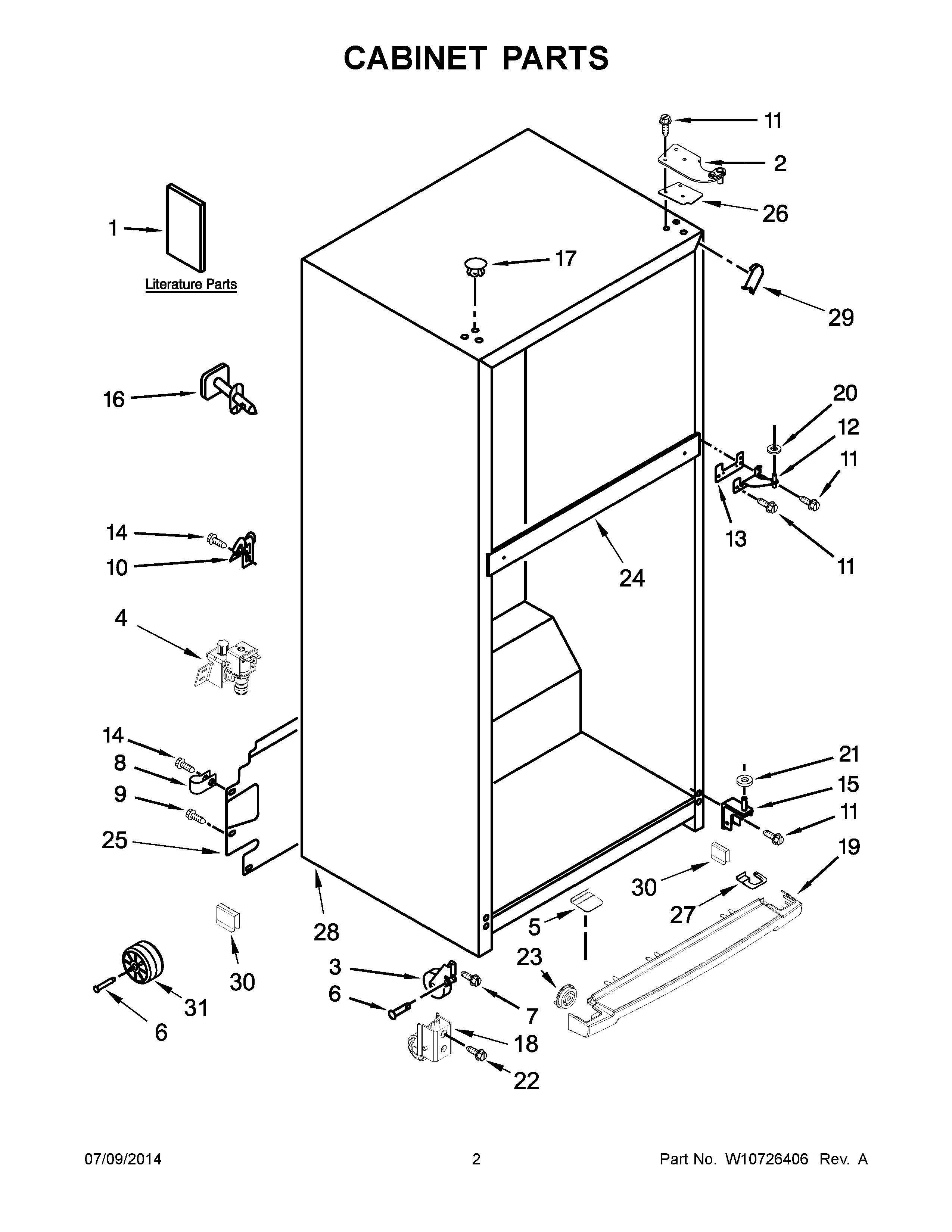

WRT3L1SZYW01 02 – CABINET PARTS

WRT3L1SZYW01 02 – CABINET PARTS

Written by

in

WRT3L1SZYW01 02 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1SERVICE AND WIRING SHEET
1USE AND CARE GUIDE
2WPW10300065 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WPW10279909 Whirlpool Refrigerator Inlet Valve
5W10353930 Whirlpool Refrigerator Grill End Cap
5WPW10339257 Whirlpool Refrigerator Toe Grille Cover
6W11594405 Whirlpool Axle
7W10850698 Whirlpool Refrigerator Screw
8W11456069 Whirlpool Refrigerator Clamp
9WP489427 Whirlpool Refrigerator Screw
10549193 Whirlpool Refrigerator Power Clamp
11WP489497 Whirlpool Screw
12WP2254618 Whirlpool Center Door Hinge
13WP2183852 Whirlpool Refrigerator Shim
14WP488729 Whirlpool Refrigerator Door Screw
15WP2254473 Whirlpool Refrigerator Door Hinge
17WPW10520305 Whirlpool Refrigerator Button Plug
17WPW10520304 Whirlpool Refrigerator Button Plug
18W10849386 Whirlpool Refrigerator CAB Roller
19WPW10300129 Whirlpool Refrigerator Grille
19WPW10353939 Whirlpool Refrigerator Grille
20WP489467 Whirlpool Hinge Shim
21WP487576 Whirlpool Washer
22BOLT
23W10331226 Whirlpool Refrigerator Clip
25WPW10384414 Whirlpool Refrigerator Unit Cover
26W10883637 Whirlpool Refrigerator Hinge Shim
27WPL W10381060
27W10381059 Whirlpool Refrigerator End Cap – GRL
28CABINET (NOT A SERVICEABLE PART)
29WPW10283959 Whirlpool Refrigerator Filler
29W11252732 Whirlpool Refrigerator Filler
30WP2174706 Whirlpool Refrigerator Pin Hitch
31WPW10475495 Whirlpool Roller Assembly
