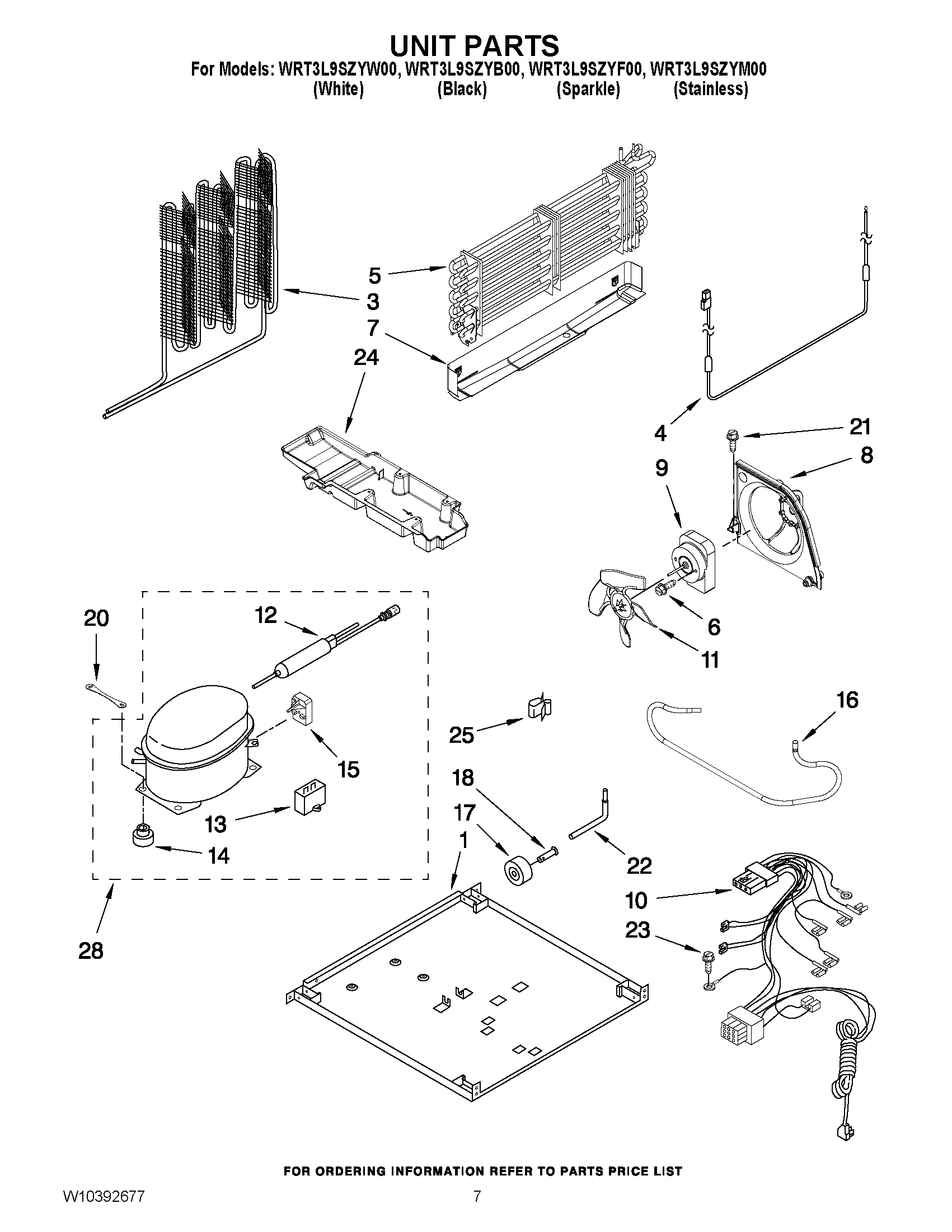

WRT3L9SZYB00 04 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	W10300116 Whirlpool Refrigerator Base Plate
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
8	WP2315541 Whirlpool Refrigerator Air Baffle
9	WP2188874 Whirlpool Refrigerator Condenser Motor
10	W11625681 Whirlpool Refrigerator Wire Harness
11	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
12	WPW10143759 Whirlpool Dryer Filter
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	876811 Whirlpool Grommet
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WPW10194431 Whirlpool Start Device
16	TUBE, SUCTION
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
20	W10236396 Whirlpool Refrigerator Strap
22	W11676464 Whirlpool Tube
23	WP489128 Whirlpool Refrigerator Screw
24	W10890667 Whirlpool Refrigerator Drip Pan
25	W10812038 Whirlpool Refrigerator Clip
28	W10233960 Whirlpool Refrigerator Compressor
