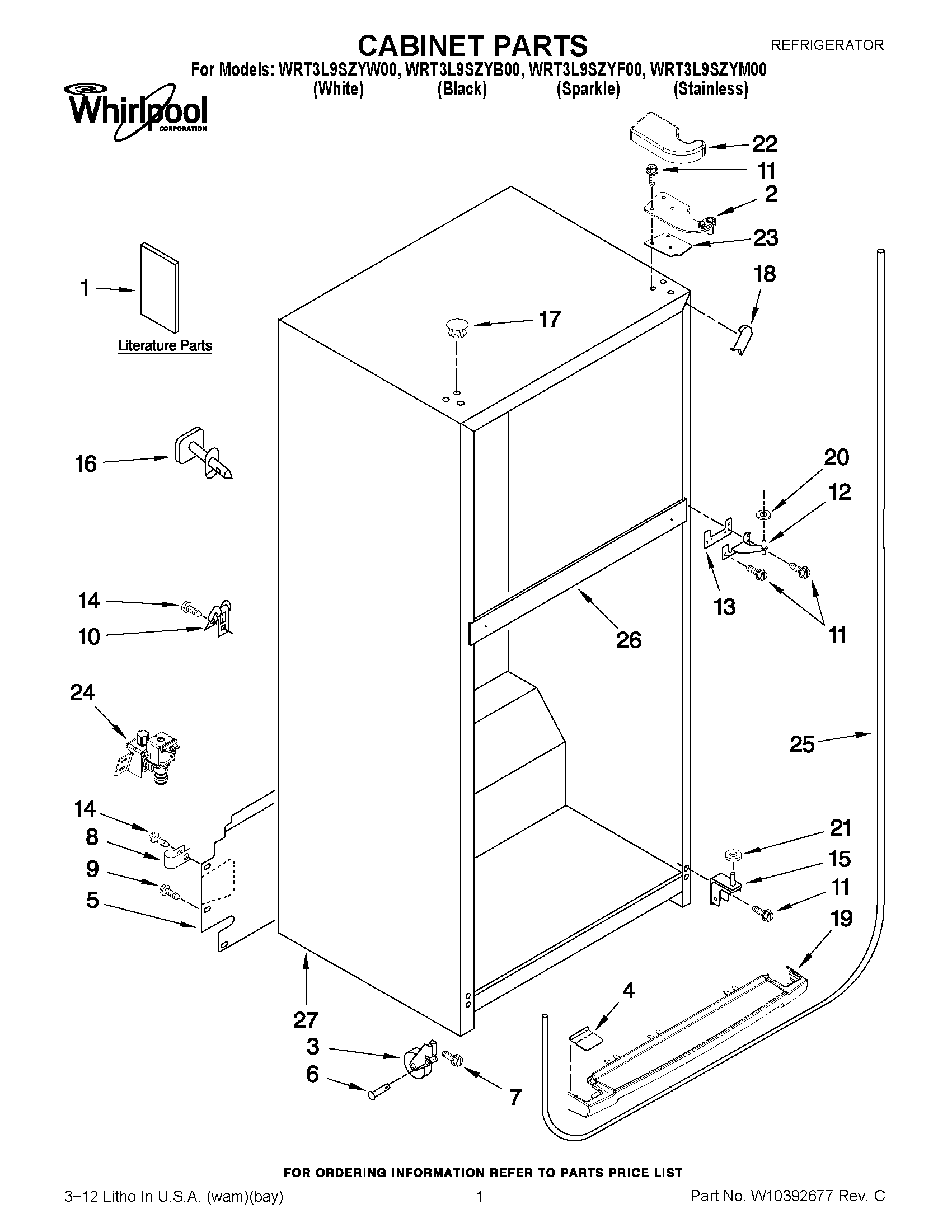

WRT3L9SZYM00 01 – CABINET PARTS

WRT3L9SZYM00 01 – CABINET PARTS

Written by

in

WRT3L9SZYM00 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	SERVICE AND WIRING SHEET
1	USE & CARE GUIDE
1	ENERGY LABEL
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WPW10353932 Whirlpool Refrigerator Grille Endcap
4	W10353930 Whirlpool Refrigerator Grill End Cap
4	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
5	W10636716 Whirlpool Refrigerator Cover Unit
6	W11594405 Whirlpool Axle
7	W10850698 Whirlpool Refrigerator Screw
8	WP488366 Whirlpool Refrigerator Clamp
9	WP489427 Whirlpool Refrigerator Screw
10	549193 Whirlpool Refrigerator Power Clamp
11	WP489497 Whirlpool Screw
12	WP2254618 Whirlpool Center Door Hinge
13	WP2183852 Whirlpool Refrigerator Shim
14	WP489464 Whirlpool Refrigerator Screw
15	WP2254473 Whirlpool Refrigerator Door Hinge
17	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
17	WP2183998 Whirlpool Refrigerator Button Plug
17	WP2151652 Whirlpool Refrigerator Button Plug
18	WPW10283959 Whirlpool Refrigerator Filler
18	W10851579 Whirlpool Refrigerator Filler
18	W11252732 Whirlpool Refrigerator Filler
19	WPW10300127 Whirlpool Refrigerator Grille
19	WPW10353935 Whirlpool Refrigerator Grille
19	WPW10353933 Whirlpool Refrigerator Grille
20	WP489467 Whirlpool Hinge Shim
21	WP487576 Whirlpool Washer
22	W10353947A Whirlpool Refrigerator Cover
22	W10353950A Whirlpool Refrigerator Cover
22	COVER, HINGE (WHITE LS)
22	W10331560A Whirlpool Refrigerator Cover
22	W10353948A Whirlpool Refrigerator Cover
22	W10353945A Whirlpool Refrigerator Cover
23	W10883637 Whirlpool Refrigerator Hinge Shim
24	WPW10279909 Whirlpool Refrigerator Inlet Valve
25	W10823511 Whirlpool Refrigerator Water Tube
27	CABINET (NOT A SERVICEABLE PART)
