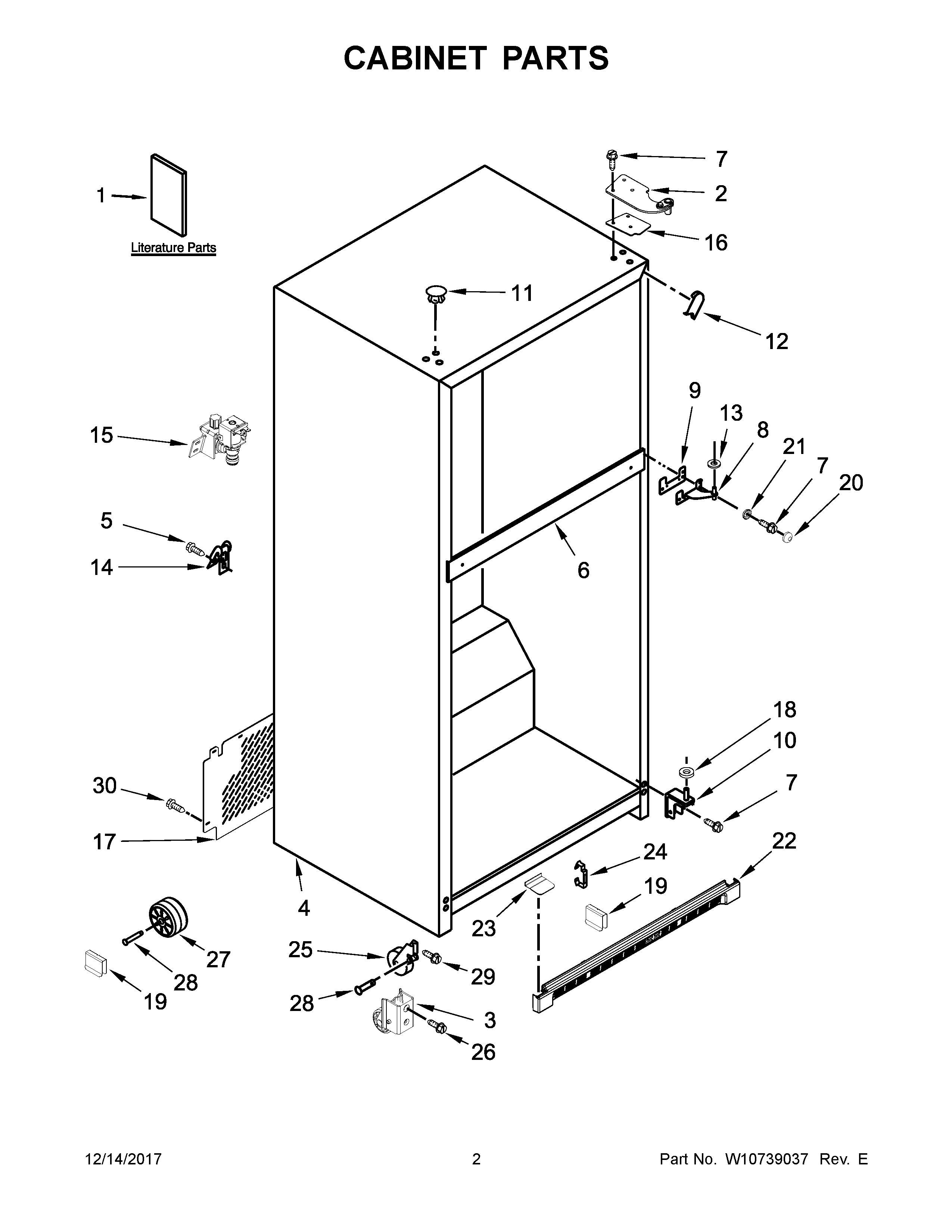

WRT511SZDB00 02 – CABINET PARTS

WRT511SZDB00 02 – CABINET PARTS

Written by

in

WRT511SZDB00 02 – CABINET PARTS

Products

PositionProduct
1BENERGY LABEL
1AUSE & CARE GUIDE
1SERVICE & WIRING SHEET
2WPW10300065 Whirlpool Refrigerator Door Hinge
3W10849386 Whirlpool Refrigerator CAB Roller
5WP489442 Whirlpool Refrigerator Screw
6CABINET (NOT A SERVICEABLE PART)
7WP489497 Whirlpool Screw
8WP2254618 Whirlpool Center Door Hinge
9WP2183852 Whirlpool Refrigerator Shim
10WP2254473 Whirlpool Refrigerator Door Hinge
11WPW10520304 Whirlpool Refrigerator Button Plug
11BWPW10520307 Whirlpool Refrigerator Replacement Plug Button
11AWPW10520305 Whirlpool Refrigerator Button Plug
12BW10851579 Whirlpool Refrigerator Filler
12AW11252732 Whirlpool Refrigerator Filler
12WPW10283959 Whirlpool Refrigerator Filler
13WP489467 Whirlpool Hinge Shim
14549193 Whirlpool Refrigerator Power Clamp
15WPW10279909 Whirlpool Refrigerator Inlet Valve
16W10883637 Whirlpool Refrigerator Hinge Shim
17W11307290 Whirlpool Unit Cover
18WP487576 Whirlpool Washer
19WP2174706 Whirlpool Refrigerator Pin Hitch
20BW10849198 Whirlpool Refrigerator Cap Screw
20W10846529 Whirlpool Refrigerator Screw Cap
20AW10853677 Whirlpool Refrigerator Screw Cap
21W10847959 Whirlpool Refrigerator Washer
22AW10860799 Whirlpool Refrigerator Grille
22BW10860791 Whirlpool Refrigerator Grille
22W10839426 Whirlpool Refrigerator Grille
23AW10468609 Whirlpool Refrigerator End Cap
23W10600071 Whirlpool Refrigerator Endcap
23BW10468611 Whirlpool Refrigerator Endcap
242254385 Whirlpool Refrigerator Clip
25WP2166108 Whirlpool Refrigerator Cabinet Roller
26BOLT
27WPW10475495 Whirlpool Roller Assembly
28W11594405 Whirlpool Axle
29W10850698 Whirlpool Refrigerator Screw
30WP488729 Whirlpool Refrigerator Door Screw
