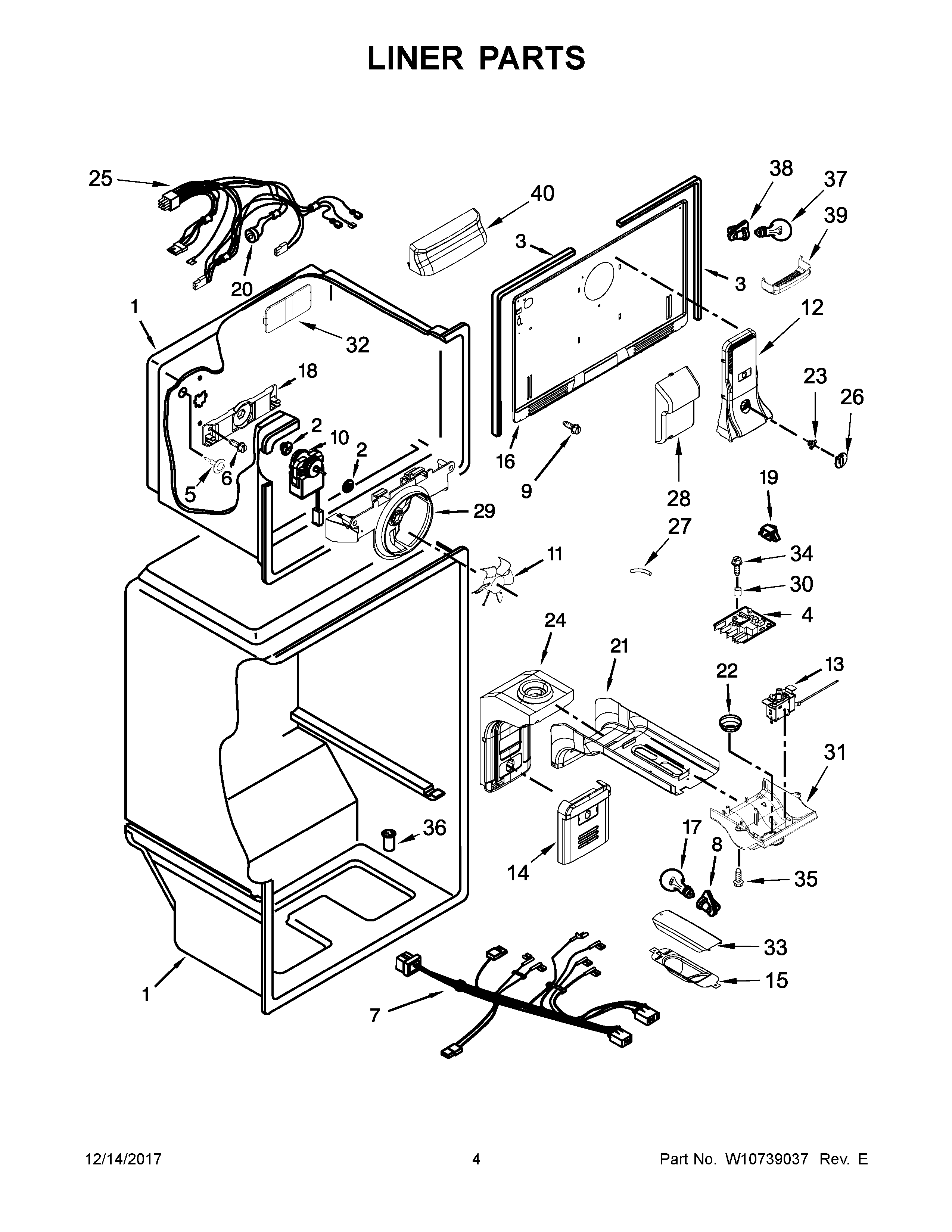

WRT511SZDB00 03 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WPW10352689-includeCORE Whirlpool WPW10352689 Refrigerator Electronic Control Board + Core
5	WP941839 Whirlpool Refrigerator Button Plug
6	WP488163 Whirlpool Refrigerator Screw
7	W10576428 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10142283 Whirlpool Refrigerator Screw
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W11126274 Whirlpool Refrigerator Air Tower
13	W10866230 Whirlpool Refrigerator Thermostat
14	W10609502 Whirlpool Refrigerator Cover
15	W10300161 Whirlpool Refrigerator Shield
16	W10616173 Whirlpool Refrigerator Evaporator Cover
17	W11216993 Whirlpool Refrigerator Light Bulb
18	2254454 Whirlpool Refrigerator Bracket
19	W11384469 Whirlpool Door Switch
20	WPW10392132 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
21	WPW10305175 Whirlpool Refrigerator Cover
22	W10716304 Whirlpool Refrigerator Thermostat Knob
23	W11206112 Whirlpool Refrigerator Control
24	W11188815 Whirlpool Refrigerator Diffuser
25	W11161901 Whirlpool Refrigerator Wire Harness
26	W11026417 Whirlpool Refrigerator Air Damper
27	WP2196003 Whirlpool Refrigerator Bar Riser
28	WPW10339203 Whirlpool Refrigerator Tube Cover
29	W10850162 Whirlpool Refrigerator Orifice
30	W10418502 Whirlpool Refrigerator Spacer
31	W10316941 Whirlpool Refrigerator Control Box
32	W10336009 Whirlpool Refrigerator Cover
33	WPW10348614 Whirlpool Refrigerator Cover
34	W10141596 Whirlpool Screw Assembly
35	WP489174 Whirlpool Refrigerator Screw
36	WP2210509 Whirlpool Refrigerator Tub Valve
37	W11518235 Whirlpool LED Light
38	W11661565 Whirlpool Refrigerator Socket
39	WPW10313918 Whirlpool Refrigerator Light Lens
40	WPW10313917 Whirlpool Refrigerator Housing
