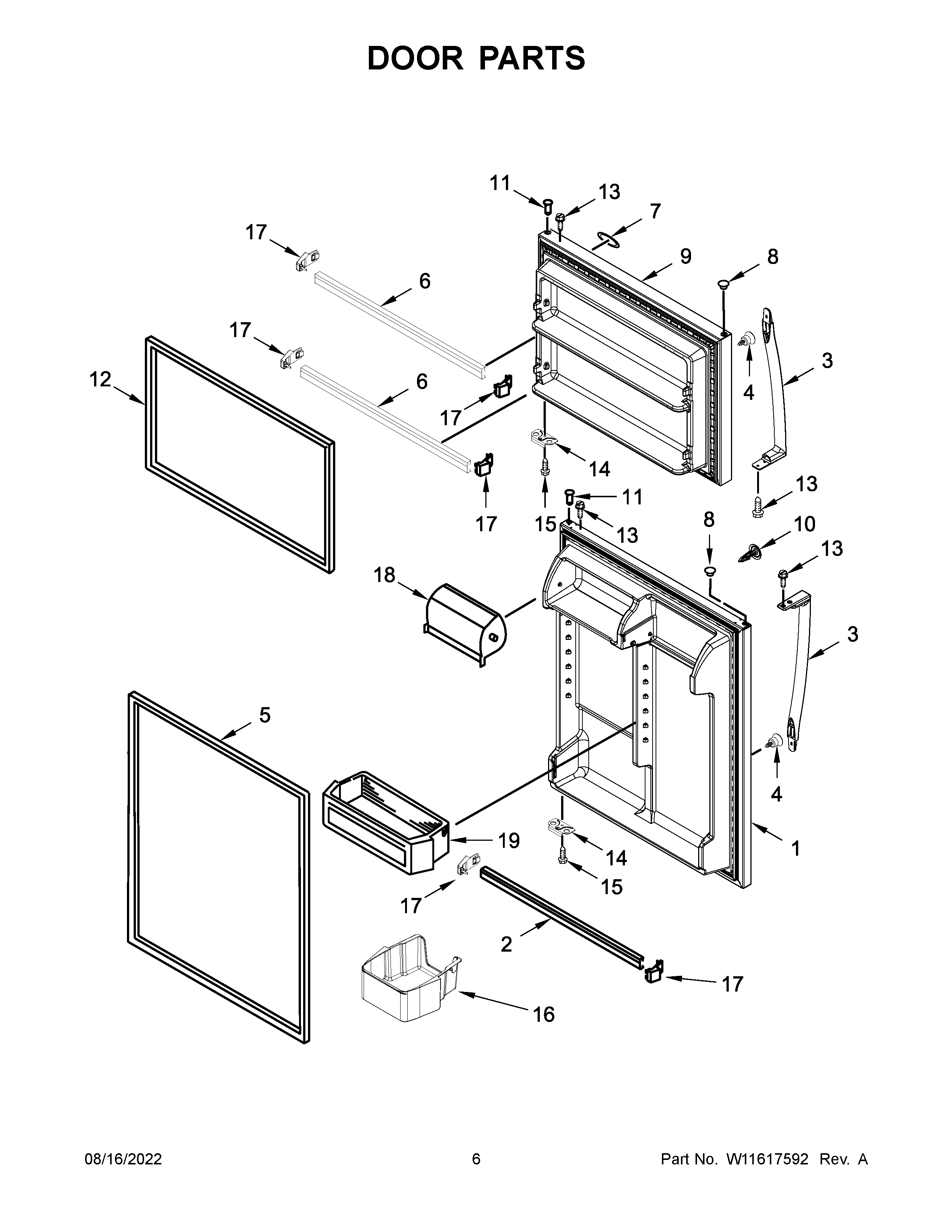

WRT511SZDB02 04 – DOOR PARTS

Products

Position	Product
1	LW10646224 Whirlpool Refrigerator Door FIP
1A	LW10648575 Whirlpool Refrigerator Door FIP
1B	LW10648584 Whirlpool Refrigerator Door FIP
2	W11126062 Whirlpool Refrigerator Door Trim
3	W10837577 Whirlpool Refrigerator Door Handle
3A	W10839425 Whirlpool Refrigerator Handle
3B	W10837029 Whirlpool Refrigerator Stainless Steel Door Handle
4	WP489357 Whirlpool Recessed Screw
5A	2177311 Whirlpool Refrigerator Magnetic Door Gasket
5	W10860480 Whirlpool Refrigerator Door Gasket
5B	W10249195 Whirlpool Refrigerator Door Gasket
6	W10592150 Whirlpool Refrigerator Door Trim
7	W11178521 Whirlpool Dishwasher Nameplate
8A	WP2212651 Whirlpool Refrigerator Button Plug
8	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8B	PLUG, HINGE SLEEVE (GREY)
9	LW10646225 Whirlpool Refrigerator FIP Door
9B	LW10648583 Whirlpool Refrigerator DOR FIP
9A	LW10648577 Whirlpool Refrigerator Door Flip
10	W10830984 Whirlpool Handle Plug
10A	W10830983 Whirlpool Refrigerator Handle Plug
10B	W10830982 Whirlpool Handle Plug
11	WP2314293 Whirlpool Refrigerator Thimble
12A	2177310 Whirlpool Refrigerator Door Gasket
12	W10741118 Whirlpool Refrigerator Door Gasket
12B	W10249196 Whirlpool Refrigerator Gasket FIP
13	WP8281206 Whirlpool Refrigerator Screw
14	W11745278 Whirlpool Bracket
15	WP681249 Whirlpool Screw Assembly
16	WPW10308869 Whirlpool Door Bin
17	W10838039 Whirlpool Shelf Retainer Bar
18	W11675283 Whirlpool Comp Door
19	WPW10308868 Whirlpool Refrigerator Door Bin
