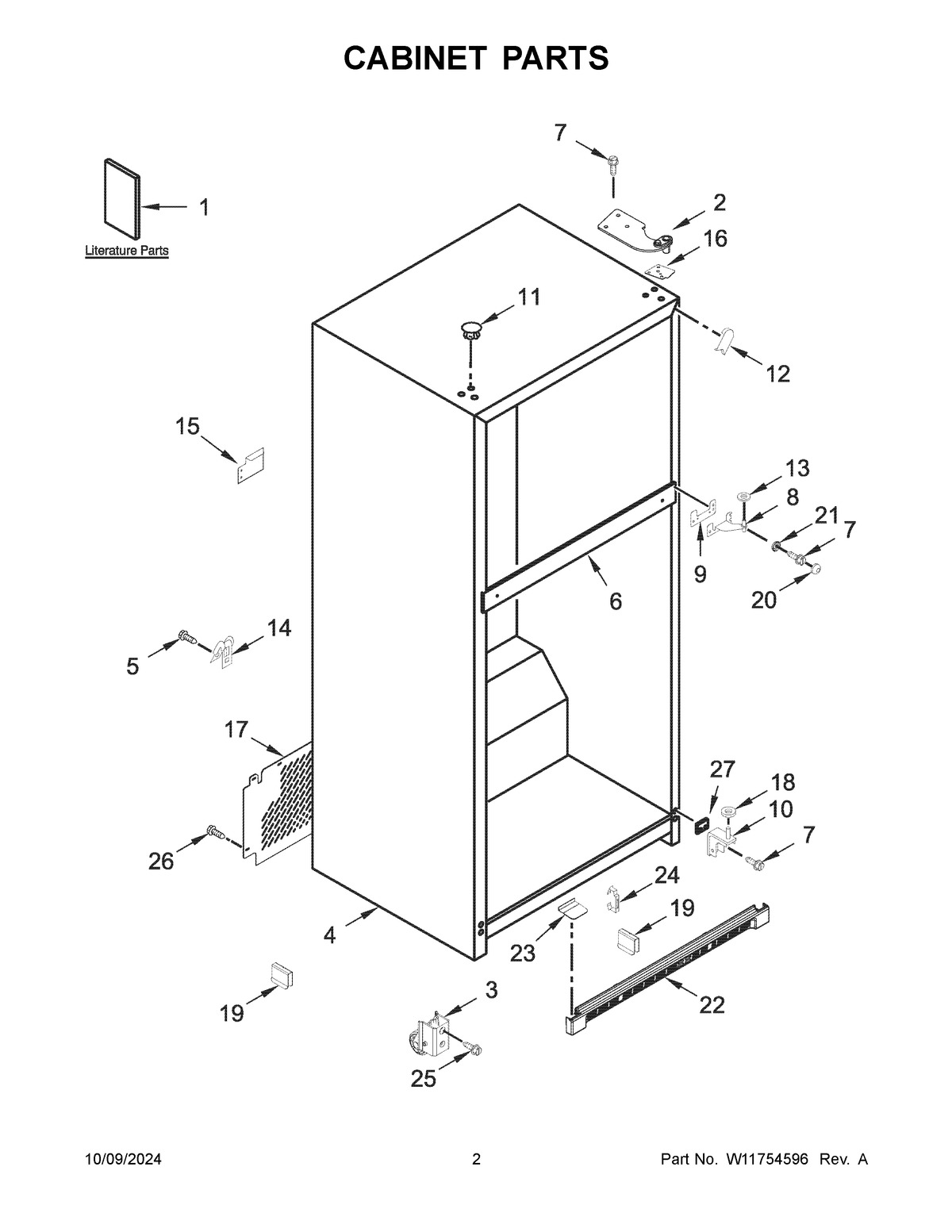

WRT511SZDM04 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE & CARE GUIDE
1BW11714879 Whirlpool Door Hinge
3W10849386 Whirlpool Refrigerator CAB Roller
4CABINET (NOT SERVICED)
5WP489442 Whirlpool Refrigerator Screw
6RAIL, CENTER (NOT SERVICED)
7WP489497 Whirlpool Screw
8WP2254618 Whirlpool Center Door Hinge
9WP2183852 Whirlpool Refrigerator Shim
10WP2254473 Whirlpool Refrigerator Door Hinge
11WPW10520307 Whirlpool Refrigerator Replacement Plug Button
12W11219642 Whirlpool Refrigerator Filler
13WP489467 Whirlpool Hinge Shim
14W11234470 Whirlpool Refrigerator Clamp
15ACCESS COVER, VALVE
17W11307290 Whirlpool Unit Cover
18WP487576 Whirlpool Washer
19WP2174706 Whirlpool Refrigerator Pin Hitch
20W10849198 Whirlpool Refrigerator Cap Screw
21W10847959 Whirlpool Refrigerator Washer
22W10860791 Whirlpool Refrigerator Grille
23W10468611 Whirlpool Refrigerator Endcap
242254385 Whirlpool Refrigerator Clip
25BOLT
26WP488729 Whirlpool Refrigerator Door Screw
27WP2201567 Whirlpool Hinge Shim
