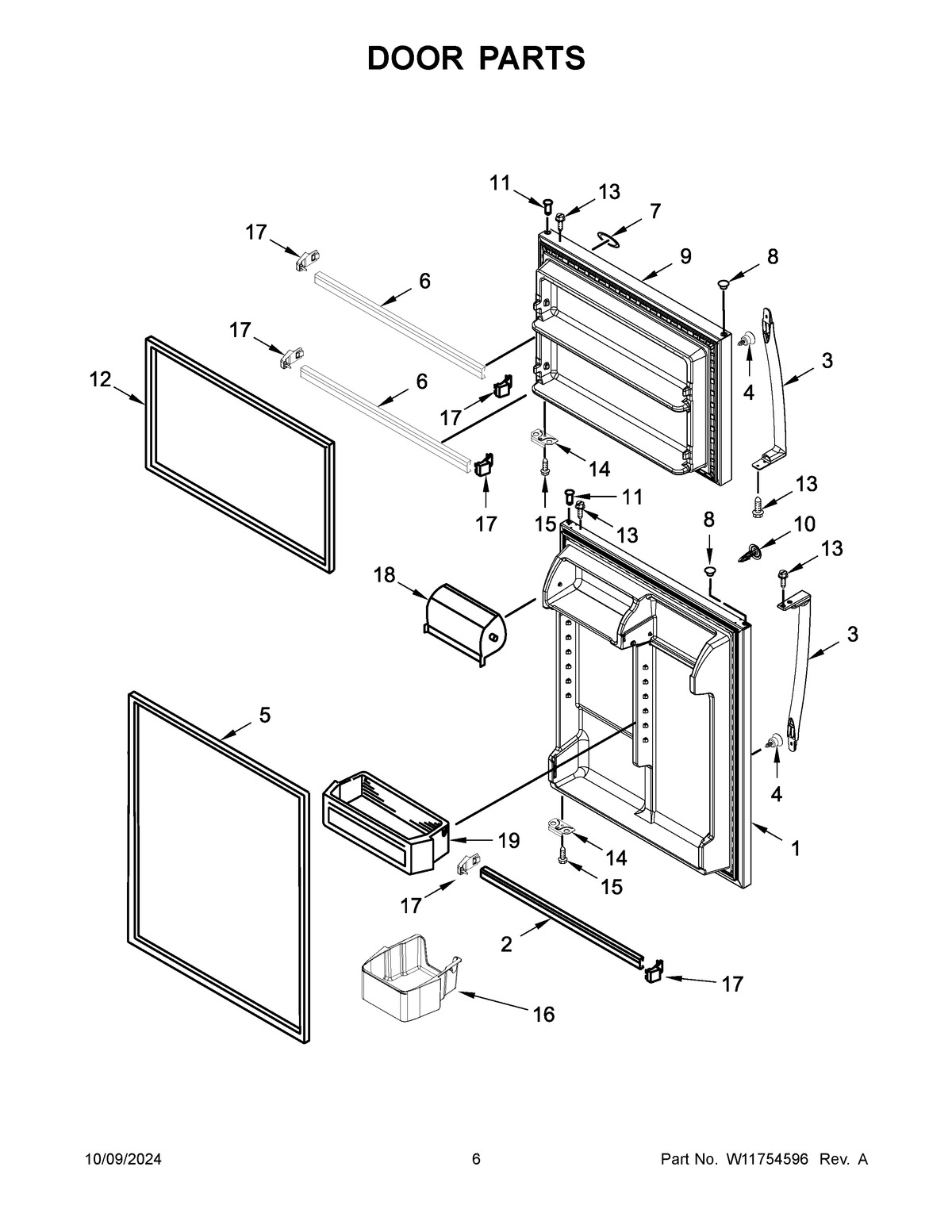

WRT511SZDM04 04 – DOOR PARTS

WRT511SZDM04 04 – DOOR PARTS

Written by

in

WRT511SZDM04 04 – DOOR PARTS

Products

PositionProduct
1LW10648584 Whirlpool Refrigerator Door FIP
2W11126062 Whirlpool Refrigerator Door Trim
3W10837029 Whirlpool Refrigerator Stainless Steel Door Handle
4WP489357 Whirlpool Recessed Screw
5W10249195 Whirlpool Refrigerator Door Gasket
6W10592150 Whirlpool Refrigerator Door Trim
7W11178521 Whirlpool Dishwasher Nameplate
8PLUG, HINGE SLEEVE (GREY)
9LW10648583 Whirlpool Refrigerator DOR FIP
10W10830982 Whirlpool Handle Plug
11WP2314293 Whirlpool Refrigerator Thimble
12W10249196 Whirlpool Refrigerator Gasket FIP
13WP8281206 Whirlpool Refrigerator Screw
14W11745278 Whirlpool Bracket
15WP681249 Whirlpool Screw Assembly
16WPW10308869 Whirlpool Door Bin
17W10838039 Whirlpool Shelf Retainer Bar
18W11675283 Whirlpool Comp Door
19WPW10308868 Whirlpool Refrigerator Door Bin
