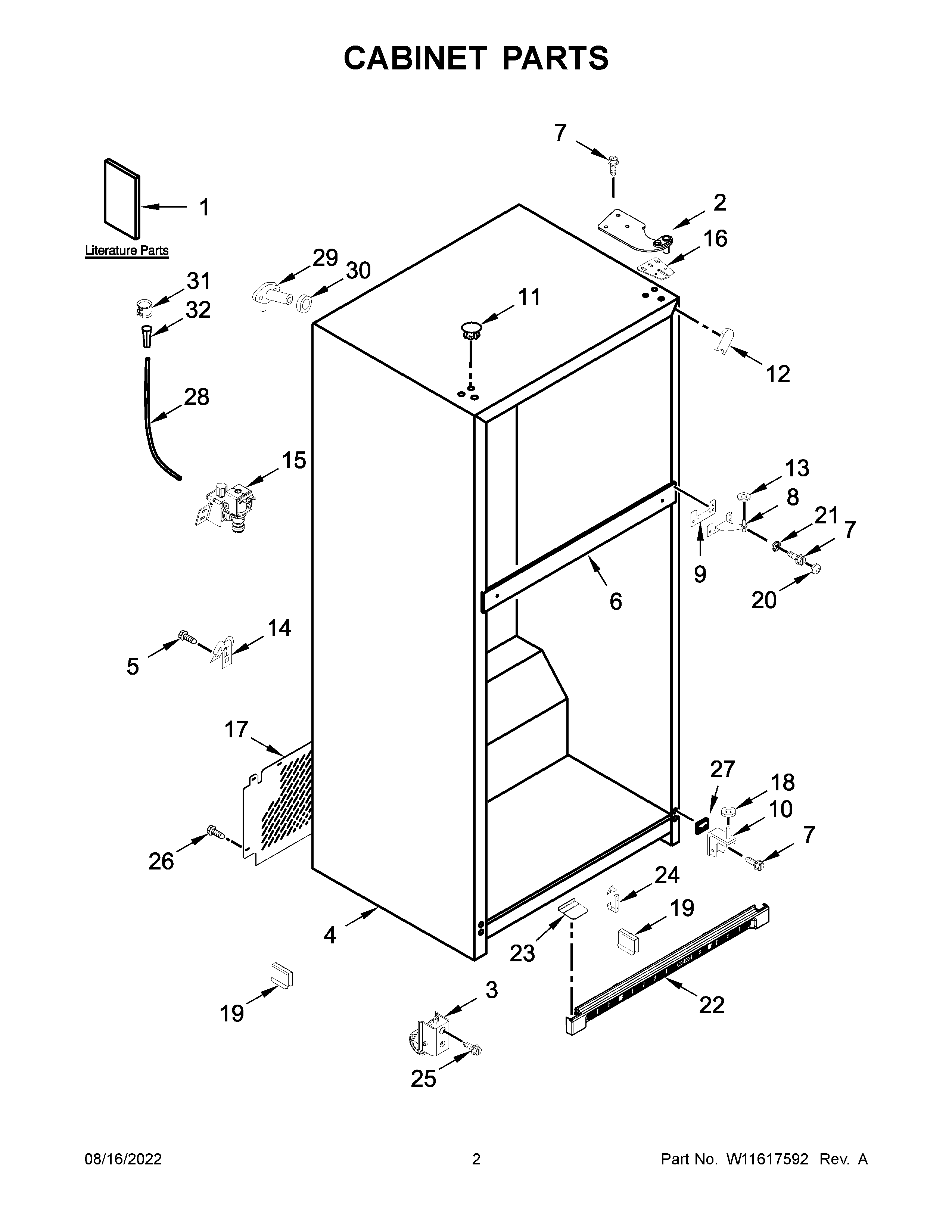

WRT511SZDW02 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1A	USE AND CARE GUIDE
1	SERVICE & WIRING SHEET
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	W10849386 Whirlpool Refrigerator CAB Roller
5	WP489442 Whirlpool Refrigerator Screw
6	CABINET (NOT A SERVICEABLE PART)
7	WP489497 Whirlpool Screw
8	WP2254618 Whirlpool Center Door Hinge
9	WP2183852 Whirlpool Refrigerator Shim
10	WP2254473 Whirlpool Refrigerator Door Hinge
11B	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
11A	WPW10520305 Whirlpool Refrigerator Button Plug
11	WPW10520304 Whirlpool Refrigerator Button Plug
12A	W11219641 Whirlpool Refrigerator Filler
12B	W11219642 Whirlpool Refrigerator Filler
12	W11219639 Whirlpool Refrigerator Filler
13	WP489467 Whirlpool Hinge Shim
14	W11234470 Whirlpool Refrigerator Clamp
15	WPW10279909 Whirlpool Refrigerator Inlet Valve
16	W10883637 Whirlpool Refrigerator Hinge Shim
17	W11307290 Whirlpool Unit Cover
18	WP487576 Whirlpool Washer
19	WP2174706 Whirlpool Refrigerator Pin Hitch
20	W10846529 Whirlpool Refrigerator Screw Cap
20A	W10853677 Whirlpool Refrigerator Screw Cap
20B	W10849198 Whirlpool Refrigerator Cap Screw
21	W10847959 Whirlpool Refrigerator Washer
22B	W10860791 Whirlpool Refrigerator Grille
22	W10839426 Whirlpool Refrigerator Grille
22A	W10860799 Whirlpool Refrigerator Grille
23B	W10468611 Whirlpool Refrigerator Endcap
23	W10600071 Whirlpool Refrigerator Endcap
23A	W10468609 Whirlpool Refrigerator End Cap
24	2254385 Whirlpool Refrigerator Clip
25	BOLT
26	WP488729 Whirlpool Refrigerator Door Screw
27	WP2201567 Whirlpool Hinge Shim
28	TUBE, WATER INLET
29	W11292468 Whirlpool Refrigerator Fitting
30	WP1106508 Whirlpool Refrigerator Gasket
31	W10861184 Whirlpool Refrigerator Clamp
32	4387491 Whirlpool Refrigerator Insert
