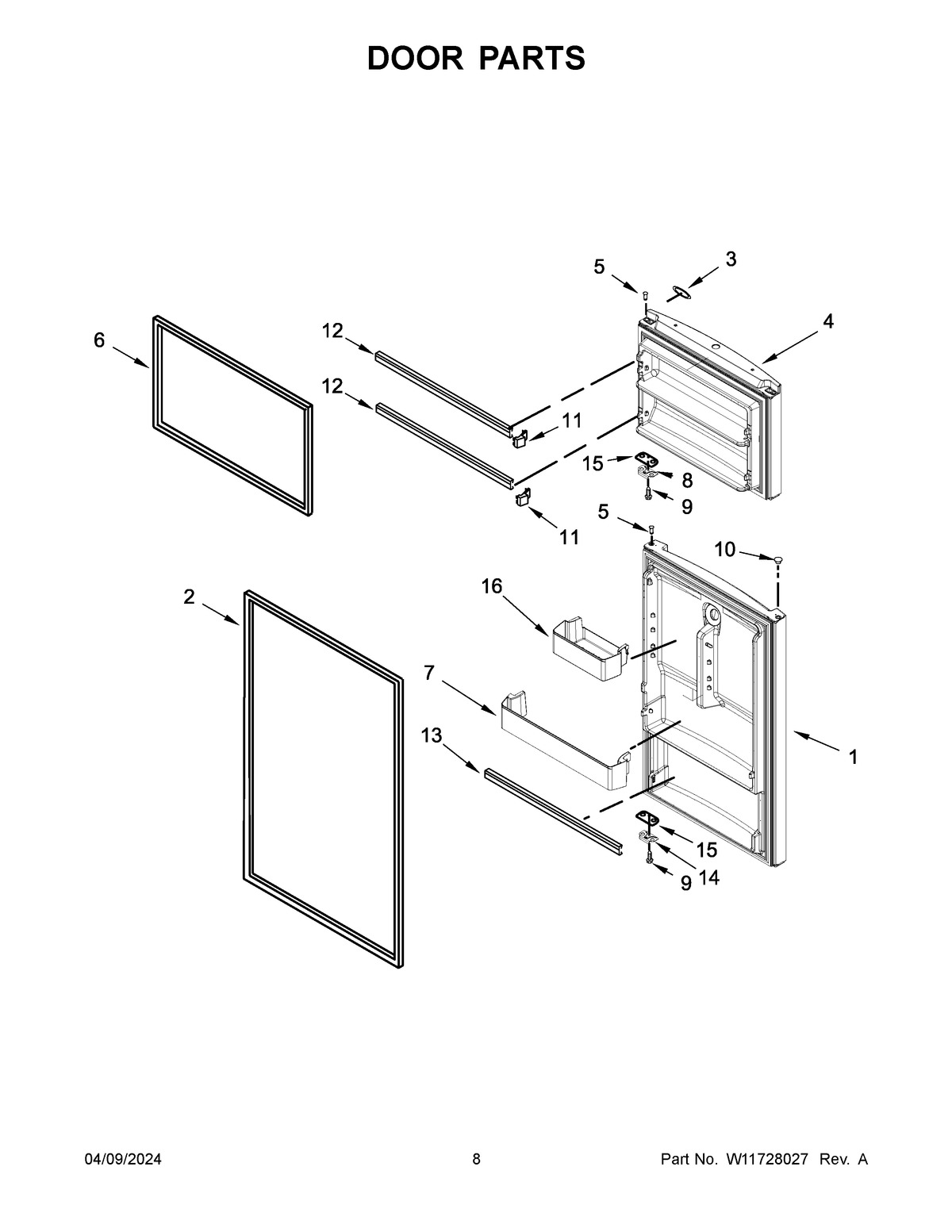

WRT518SZFB04 05 – DOOR PARTS

WRT518SZFB04 05 – DOOR PARTS

Written by

in

WRT518SZFB04 05 – DOOR PARTS

Products

PositionProduct
1LW10852095 Whirlpool Refrigerator Door FIP
1ALW10803934 Whirlpool Refrigerator DOR-FIP
1BLW10803941 Whirlpool Refrigerator Door FIP
2WP2319264W Whirlpool Refrigerator FIP Gasket
2BW11578847 Whirlpool Refrigerator FIP Gasket
2AWP2319264B Whirlpool Door Gasket
3W11178521 Whirlpool Dishwasher Nameplate
4ALW10803963 Whirlpool Refrigerator Door Frame Inner Panel
4LW10852088 Whirlpool Refrigerator FIP Door
4BLW10803965 Whirlpool Refrigerator Freezer Door Assembly (Stainless Steel)
5BW11676573 Whirlpool Thimble
5THIMBLE
5AW11189115 Whirlpool Refrigerator Thimble
6BW11661186 Whirlpool Door Gasket
6AWP2319263B Whirlpool Refrigerator Black Door Gasket
6GASKET-FIP
7W11230940 Whirlpool Refrigerator Door Shelf Rail
8W11745278 Whirlpool Bracket
9WP488921 Whirlpool Refrigerator Screw
10WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
10AWP2212651 Whirlpool Refrigerator Button Plug
11WP2156003 Whirlpool Refrigerator Door Shelf End Cap
12WP2266727 Whirlpool Refrigerator Door Trim
13WPW10234241 Whirlpool Door Shelf Trim
14W10492012 Whirlpool Refrigerator Bracket
15WP2258681W Whirlpool Refrigerator Shim
16W11190821 Whirlpool Refrigerator Bin
