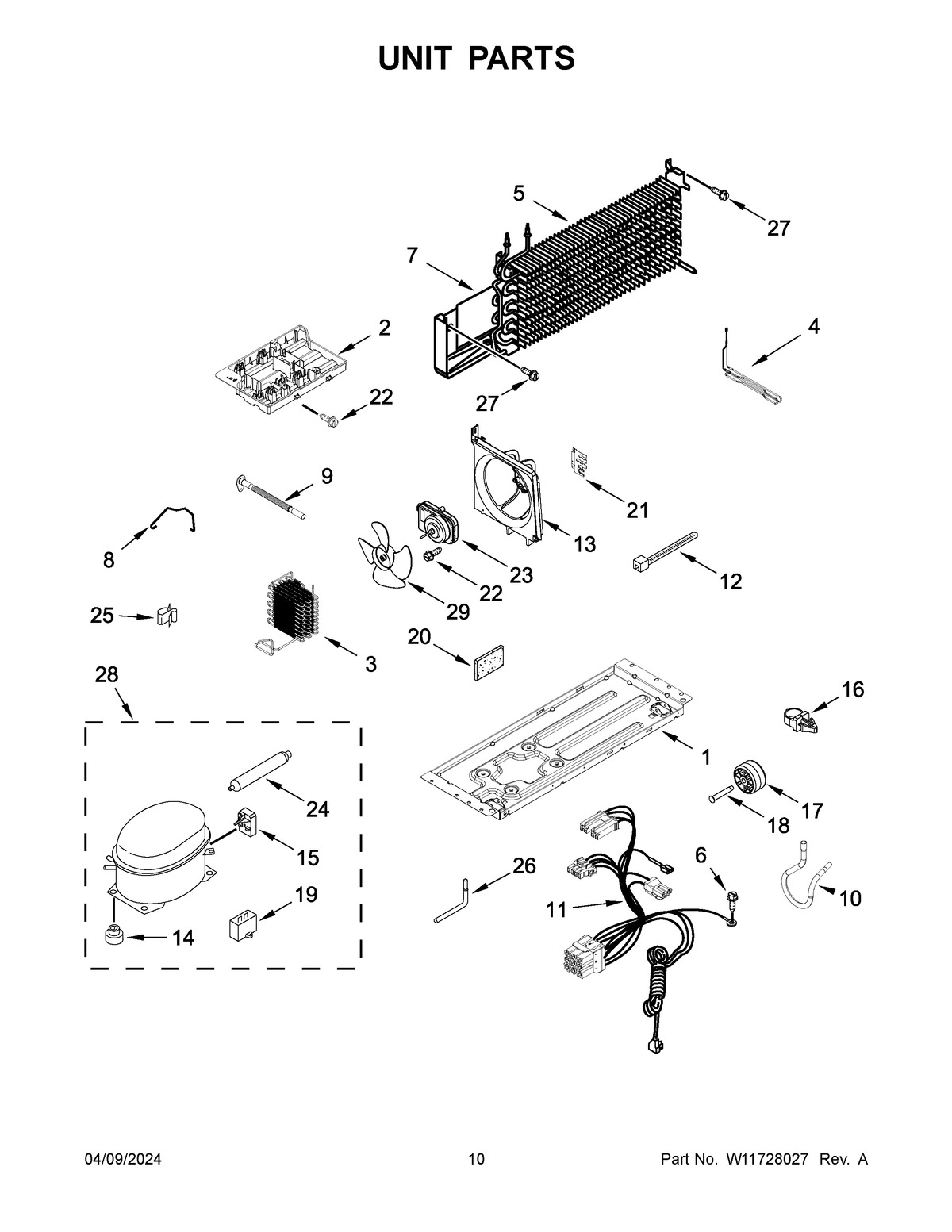

WRT518SZFB04 06 – UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 56 GRAMS (R600A)
1	SUPPORT PLATE, COMPRESSOR
2	W10565417 Whirlpool Refrigerator Evaporator Tray
3B	W11504432 Whirlpool Refrigerator Coupler
3	CONDENSER
4	W11579349 Whirlpool Refrigerator Heater
5A	W11504450 Whirlpool Refrigerator Coupler
5	W11579351 Whirlpool Refrigerator Evaporator
5B	W11506620 Whirlpool Refrigerator Coupler
6	SCREW
7	W10570572 Whirlpool Refrigerator Shield
8	W11577799 Whirlpool Refrigerator Clip
9	W10582029 Whirlpool Refrigerator Extension
10	W11518247 Whirlpool Tube Assembly
11	W11677726 Whirlpool Wire Harness
12	WPW10339879 Whirlpool Wire Tie
13	WPW10570380 Whirlpool Refrigerator Air Baffle
14	W11678963 Whirlpool Grommet
15	W11547180 Whirlpool Refrigerator Start Device
16	2219077 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	WPW10662129 Whirlpool Refrigerator Run Capacitor
20	W11553819 Whirlpool Refrigerator Insulation
21	BRACKET, EVAPORATOR
22	WPW10171469 Whirlpool Refrigerator Screw
23	W11127829 Whirlpool Refrigerator Condenser Motor
24A	W11504445 Whirlpool Refrigerator Coupler
24	W11109499 Whirlpool Refrigerator Tube
24B	W11504447 Whirlpool Refrigerator Coupler
25	W10812039 Whirlpool Clip
26	W11461499 Whirlpool Tube
27	WP489442 Whirlpool Refrigerator Screw
28C	COUPLER
28B	W11504430 Whirlpool Refrigerator Coupler
28	COMPRESSOR
28A	W11504415 Whirlpool Refrigerator Coupler
29	W11204896 Whirlpool Refrigerator Fan Blade
