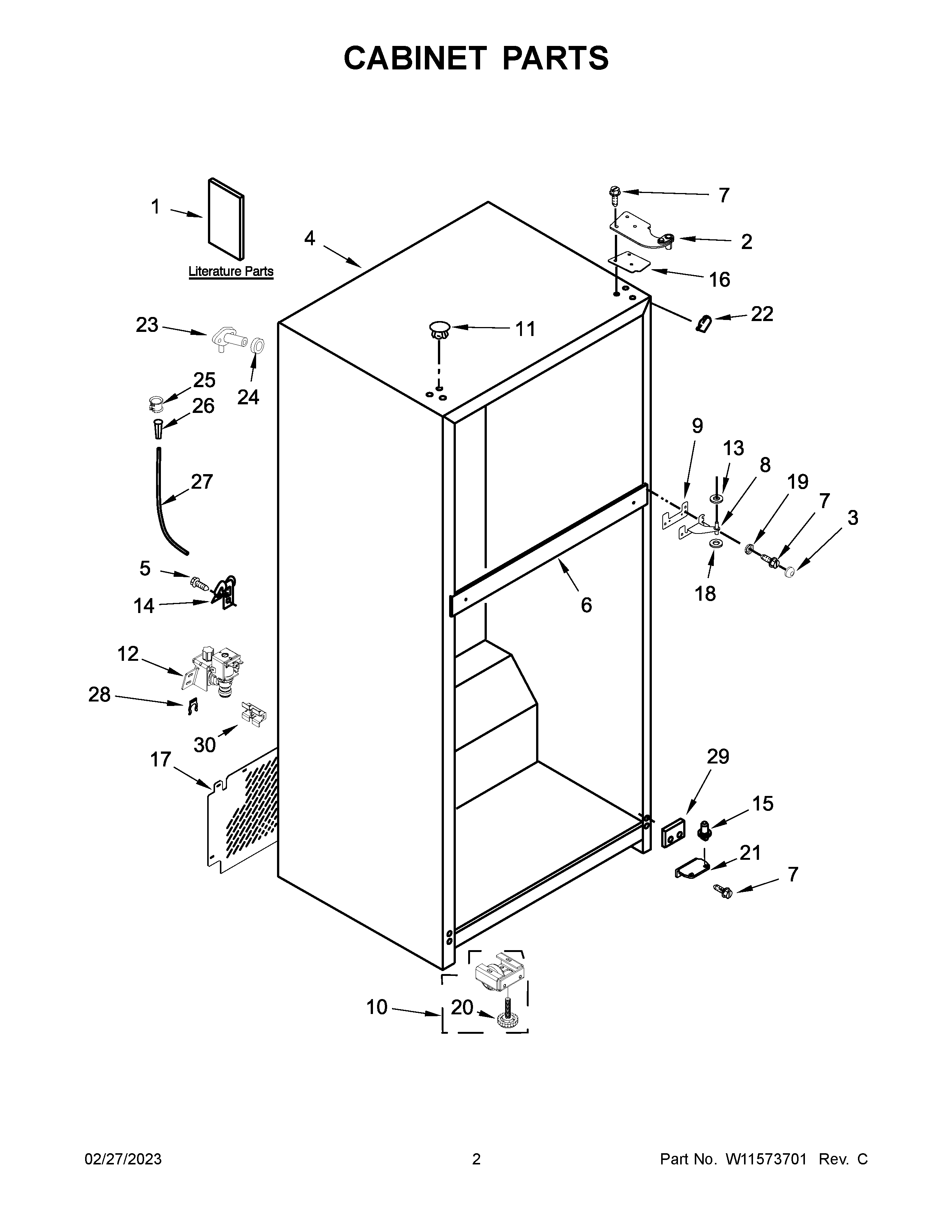

WRT518SZFM02 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1	TECH SHEET
1A	USE AND CARE GUIDE
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3B	W10849198 Whirlpool Refrigerator Cap Screw
3A	W10853677 Whirlpool Refrigerator Screw Cap
3	W10846529 Whirlpool Refrigerator Screw Cap
5	WP489442 Whirlpool Refrigerator Screw
6	CABINET (NOT A SERVICEABLE PART)
7	WP489497 Whirlpool Screw
8	WP2166037 Whirlpool Refrigerator Door Hinge
9A	2215385 Whirlpool Refrigerator Shim
9	2166043 Whirlpool Refrigerator Shim
10	WPW10142530 Whirlpool Refrigerator Cabinet Roller
11	WPW10520304 Whirlpool Refrigerator Button Plug
11B	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
11A	WPW10520305 Whirlpool Refrigerator Button Plug
12	WPW10279909 Whirlpool Refrigerator Inlet Valve
13	WP489467 Whirlpool Hinge Shim
14	W11234470 Whirlpool Refrigerator Clamp
15	W11026307 Whirlpool Refrigerator Hinge Pin
16	W10883637 Whirlpool Refrigerator Hinge Shim
17	W11307292 Whirlpool Refrigerator Unit Cover
18	WP487576 Whirlpool Washer
19	W10847959 Whirlpool Refrigerator Washer
20	WPW10133299 Whirlpool Refrigerator Screw
21	WP2325482 Whirlpool Bottom Hinge
22	W10859322 Whirlpool Refrigerator Filler
22B	W11573591 Whirlpool Refrigerator Filler
22A	W11500943 Whirlpool Refrigerator Filler
23	W11292468 Whirlpool Refrigerator Fitting
24	WP1106508 Whirlpool Refrigerator Gasket
25	W10861184 Whirlpool Refrigerator Clamp
26	4387491 Whirlpool Refrigerator Insert
27	W10823511 Whirlpool Refrigerator Water Tube
28	W11676611 Whirlpool Ring
29	WP2201567 Whirlpool Hinge Shim
30	SPACER, BACK
