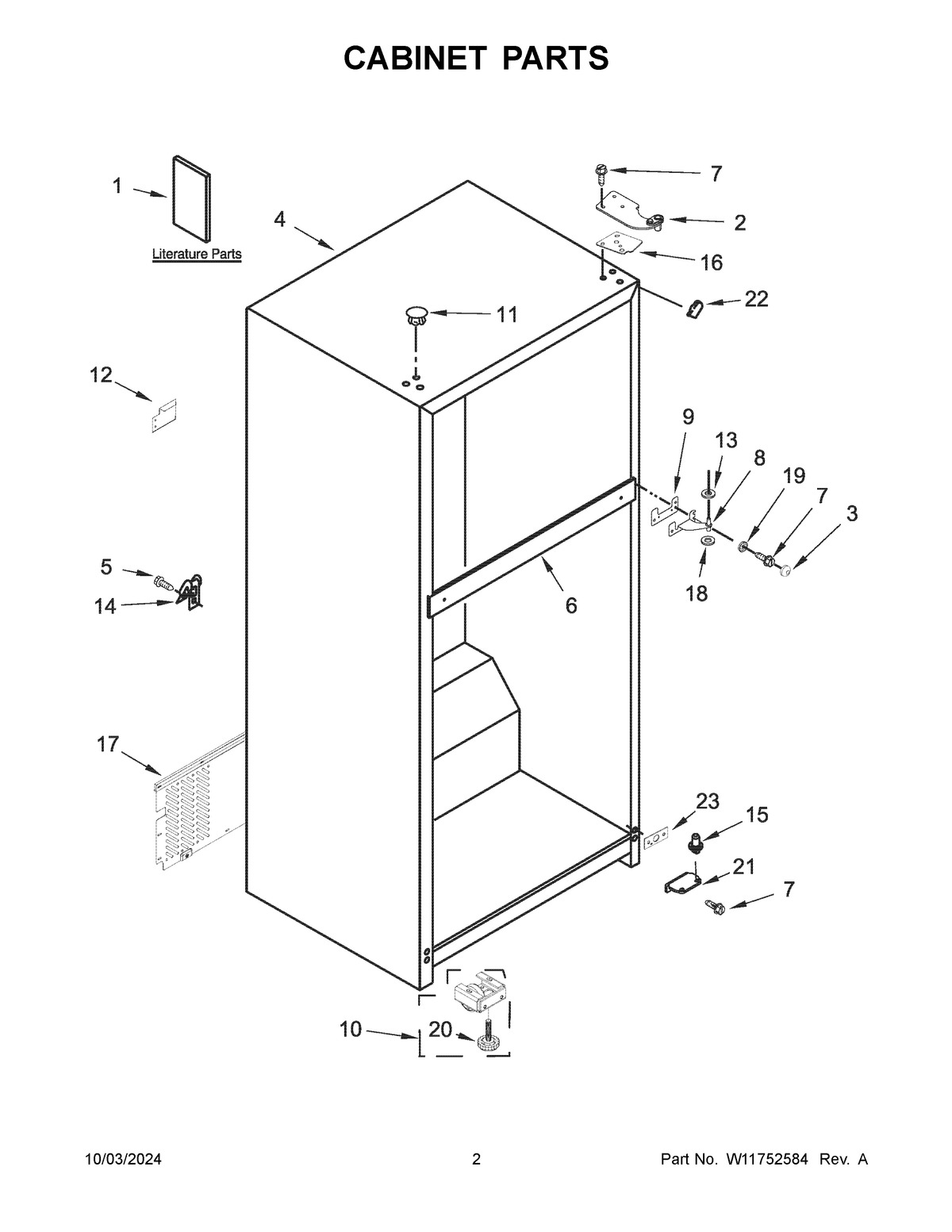

WRT518SZKV03 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	USE & CARE GUIDE
2	W11714879 Whirlpool Door Hinge
3	W10853677 Whirlpool Refrigerator Screw Cap
4	CABINET (NOT SERVICED)
5	WP489442 Whirlpool Refrigerator Screw
6	RAIL, CENTER (NOT SERVICED)
7	WP489497 Whirlpool Screw
8	WP2166037 Whirlpool Refrigerator Door Hinge
9	2215385 Whirlpool Refrigerator Shim
10	WPW10142530 Whirlpool Refrigerator Cabinet Roller
11	WPW10520305 Whirlpool Refrigerator Button Plug
12	ACCESS COVER, VALVE
13	WP489467 Whirlpool Hinge Shim
14	W11234470 Whirlpool Refrigerator Clamp
15	W11026307 Whirlpool Refrigerator Hinge Pin
17	COVER UNIT
18	WP487576 Whirlpool Washer
19	W10847959 Whirlpool Refrigerator Washer
20	WPW10133299 Whirlpool Refrigerator Screw
21	WP2325482 Whirlpool Bottom Hinge
22	W11500943 Whirlpool Refrigerator Filler
23	WP2201567 Whirlpool Hinge Shim
