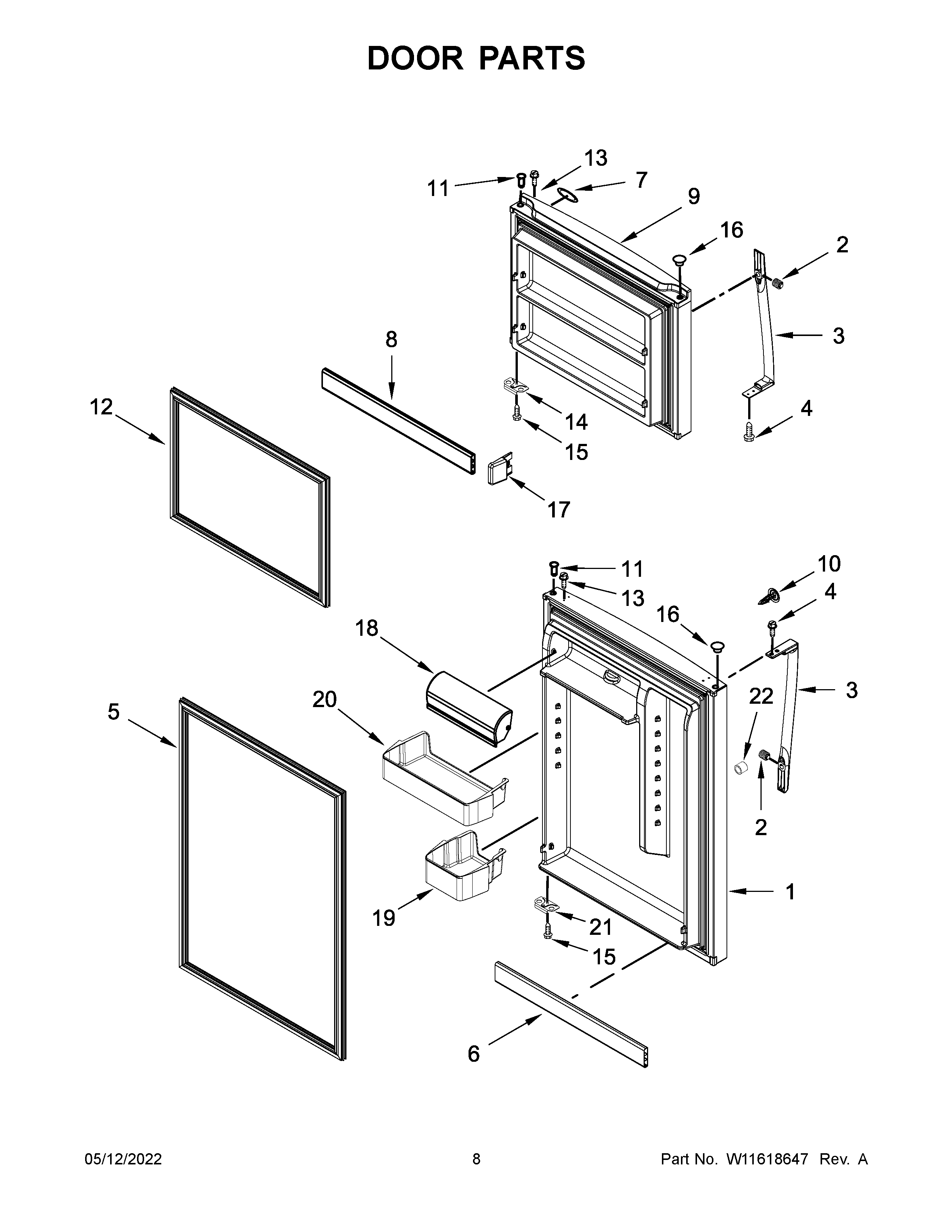

WRT519SZDB07 05 – DOOR PARTS

Products

Position	Product
1A	LW10672972 Whirlpool Refrigerator FIP Door
1	LW10672970 Whirlpool Refrigerator Door FIP
2	WPW10170540 Whirlpool Screw
3A	W10837029 Whirlpool Refrigerator Stainless Steel Door Handle
3	W10839425 Whirlpool Refrigerator Handle
4	WP489357 Whirlpool Recessed Screw
5	W11240749 Whirlpool Refrigerator Door Gasket
5A	GASKET-DOR
6	TRIM-DOOR
7	W11178521 Whirlpool Dishwasher Nameplate
8	W10592151 Whirlpool Refrigerator Door Trim
9	LW10672964 Whirlpool Refrigerator DOR FIP
9A	LW10672966 Whirlpool Refrigerator Duct Over Rack – FIP
10A	W10830982 Whirlpool Handle Plug
10	W10830983 Whirlpool Refrigerator Handle Plug
11	W11189115 Whirlpool Refrigerator Thimble
11A	W11676573 Whirlpool Thimble
12	W11229610 Whirlpool Refrigerator Door Gasket
12A	GASKET DOOR FC GREY
13	WP8281206 Whirlpool Refrigerator Screw
14	W11745278 Whirlpool Bracket
15	SCREW
16A	PLUG, HINGE SLEEVE (GREY)
16	WP2212651 Whirlpool Refrigerator Button Plug
17	W10838039 Whirlpool Shelf Retainer Bar
18	W11675283 Whirlpool Comp Door
19	WPW10308867 Whirlpool Refrigerator Cantilever Bin
20	WPW10308868 Whirlpool Refrigerator Door Bin
21	W11402852 Whirlpool Refrigerator Bracket
22	WPW10511911 Whirlpool Refrigerator Bushing
