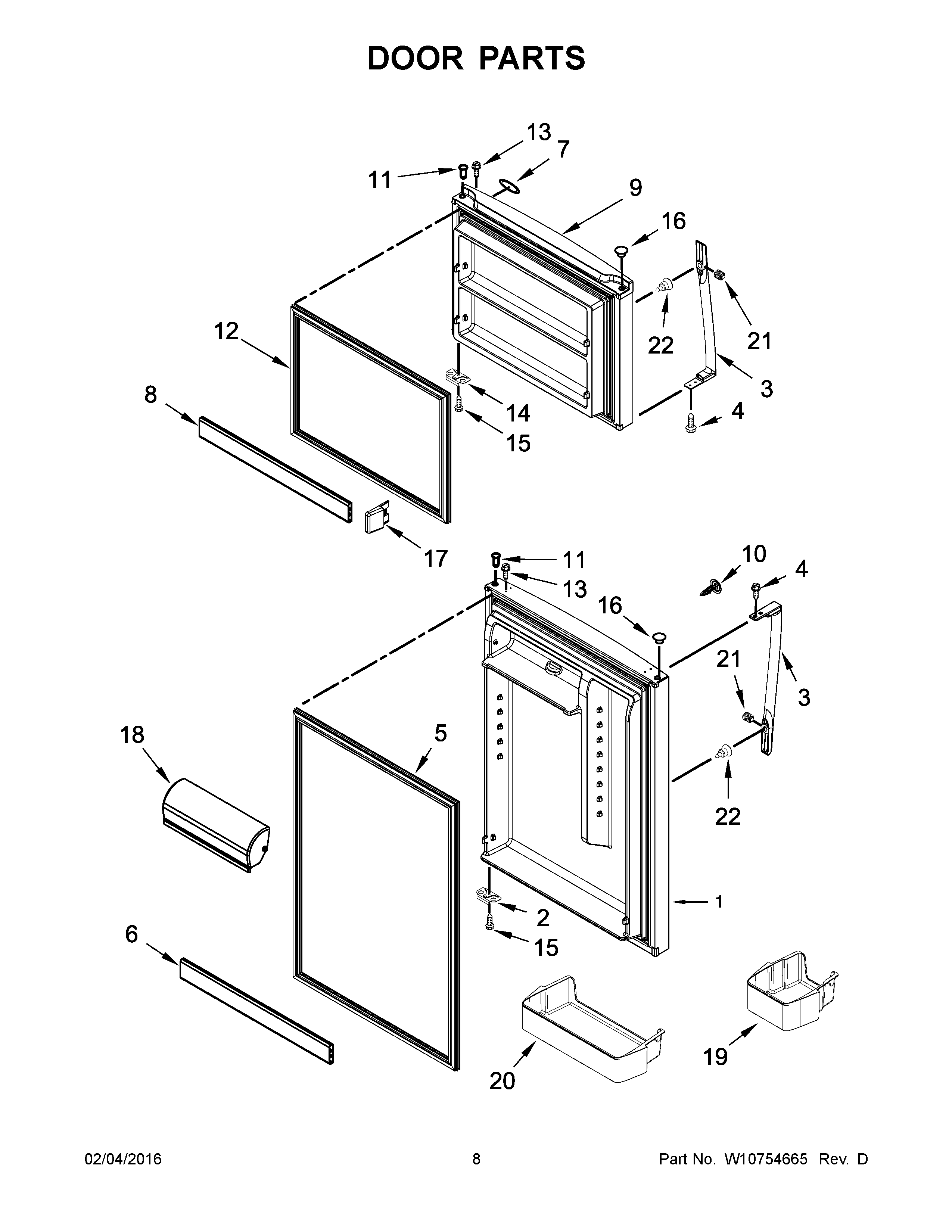

WRT519SZDD00 05 – DOOR PARTS

Products

Position	Product
1	LW10636232 Whirlpool Refrigerator DOR-FIP
1A	LW10672970 Whirlpool Refrigerator Door FIP
1B	LW10685257 Whirlpool Refrigerator DOR-FIP
1D	REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (UNIVERSAL SILVER)
1C	LW10672972 Whirlpool Refrigerator FIP Door
2	W11402852 Whirlpool Refrigerator Bracket
3D	W10706367 Whirlpool Refrigerator Handle
3B	W10656974 Whirlpool Refrigerator Handle
3	W10837577 Whirlpool Refrigerator Door Handle
3C	W10837029 Whirlpool Refrigerator Stainless Steel Door Handle
3A	W10839425 Whirlpool Refrigerator Handle
4	WP489357 Whirlpool Recessed Screw
5	W10838574 Whirlpool Door Gasket
5A	W11240749 Whirlpool Refrigerator Door Gasket
5B	W11625057 Whirlpool Door Gasket
5C	W11028007 Whirlpool Refrigerator Door Gasket
6	TRIM-DOOR
7A	W11178521 Whirlpool Dishwasher Nameplate
8	W10592151 Whirlpool Refrigerator Door Trim
9D	LW10685226 Whirlpool Refrigerator Door FIP
9B	LW10685227 Whirlpool Refrigerator DOR-FIP
9A	LW10672964 Whirlpool Refrigerator DOR FIP
9	LW10636404 Whirlpool Refrigerator Door FIP
9C	LW10672966 Whirlpool Refrigerator Duct Over Rack – FIP
10A	W10830983 Whirlpool Refrigerator Handle Plug
10B	W10830981 Whirlpool Refrigerator Plug Handle
10	W10830984 Whirlpool Handle Plug
10C	W10830982 Whirlpool Handle Plug
11A	W11189115 Whirlpool Refrigerator Thimble
11C	W11676573 Whirlpool Thimble
11B	THIMBLE (BISCUIT)
11	THIMBLE
12	W10861499 Whirlpool Door Gasket
12C	W11036546 Whirlpool Refrigerator Door Gasket
12A	W11229610 Whirlpool Refrigerator Door Gasket
12B	W11625056 Whirlpool Refrigerator Door Gasket
13	WP8281206 Whirlpool Refrigerator Screw
14	W11745278 Whirlpool Bracket
15	SCREW
16C	PLUG, HINGE SLEEVE (GREY)
16A	WP2212651 Whirlpool Refrigerator Button Plug
16B	WP2212649 Whirlpool Refrigerator Button Plug
16	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17	W10838039 Whirlpool Shelf Retainer Bar
18	W11675283 Whirlpool Comp Door
19	WPW10308867 Whirlpool Refrigerator Cantilever Bin
20	WPW10308868 Whirlpool Refrigerator Door Bin
21	WPW10511911 Whirlpool Refrigerator Bushing
22	WPW10170540 Whirlpool Screw
