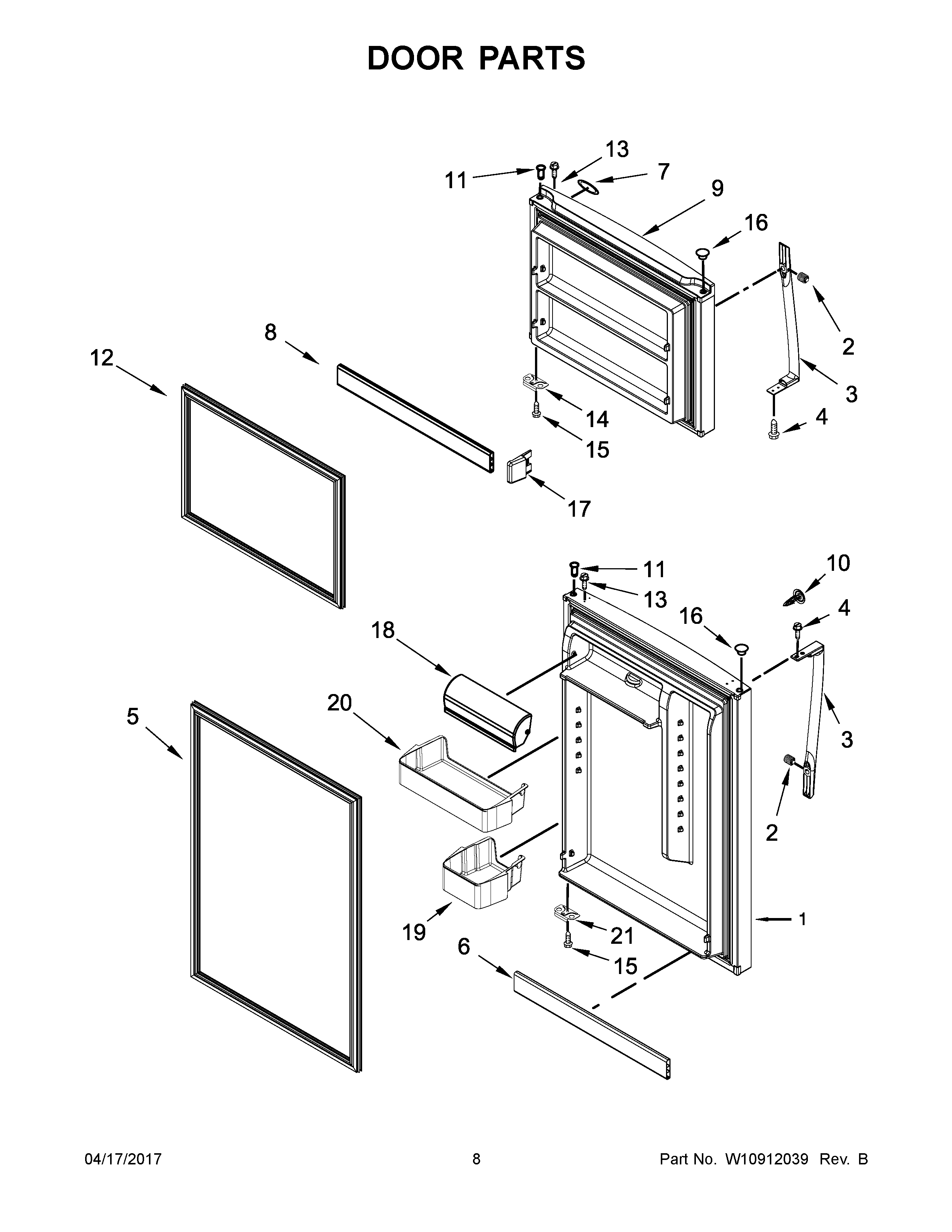

WRT519SZDD01 05 – DOOR PARTS

WRT519SZDD01 05 – DOOR PARTS

Written by

in

WRT519SZDD01 05 – DOOR PARTS

Products

PositionProduct
1ALW10672970 Whirlpool Refrigerator Door FIP
1LW10636232 Whirlpool Refrigerator DOR-FIP
1BLW10685257 Whirlpool Refrigerator DOR-FIP
1CLW10672972 Whirlpool Refrigerator FIP Door
1DREFRIGERATOR DOOR (INCLUDES DOOR GASKET) (UNIVERSAL SILVER)
2WPW10170540 Whirlpool Screw
3DW10706367 Whirlpool Refrigerator Handle
3BW10656974 Whirlpool Refrigerator Handle
3CW10837029 Whirlpool Refrigerator Stainless Steel Door Handle
3AW10839425 Whirlpool Refrigerator Handle
3W10837577 Whirlpool Refrigerator Door Handle
4WP489357 Whirlpool Recessed Screw
5W10838574 Whirlpool Door Gasket
5CGASKET-DOR
5BW11030687 Whirlpool Refrigerator Door Gasket
5AW11240749 Whirlpool Refrigerator Door Gasket
6TRIM-DOOR
7AW11178521 Whirlpool Dishwasher Nameplate
8W10592151 Whirlpool Refrigerator Door Trim
9DLW10685226 Whirlpool Refrigerator Door FIP
9CLW10672966 Whirlpool Refrigerator Duct Over Rack – FIP
9BLW10685227 Whirlpool Refrigerator DOR-FIP
9ALW10672964 Whirlpool Refrigerator DOR FIP
9LW10636404 Whirlpool Refrigerator Door FIP
10BW10830981 Whirlpool Refrigerator Plug Handle
10W10830984 Whirlpool Handle Plug
10AW10830983 Whirlpool Refrigerator Handle Plug
10CW10830982 Whirlpool Handle Plug
11AW11189115 Whirlpool Refrigerator Thimble
11THIMBLE
11CW11676573 Whirlpool Thimble
11BTHIMBLE (BISCUIT)
12W10861499 Whirlpool Door Gasket
12BGASKET, DOOR (BEIGE)
12CGASKET DOOR FC GREY
12AW11229610 Whirlpool Refrigerator Door Gasket
13WP8281206 Whirlpool Refrigerator Screw
14W11745278 Whirlpool Bracket
15SCREW
16CPLUG, HINGE SLEEVE (GREY)
16BWP2212649 Whirlpool Refrigerator Button Plug
16AWP2212651 Whirlpool Refrigerator Button Plug
16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17W10838039 Whirlpool Shelf Retainer Bar
18W11675283 Whirlpool Comp Door
19WPW10308867 Whirlpool Refrigerator Cantilever Bin
20WPW10308868 Whirlpool Refrigerator Door Bin
21W11402852 Whirlpool Refrigerator Bracket
