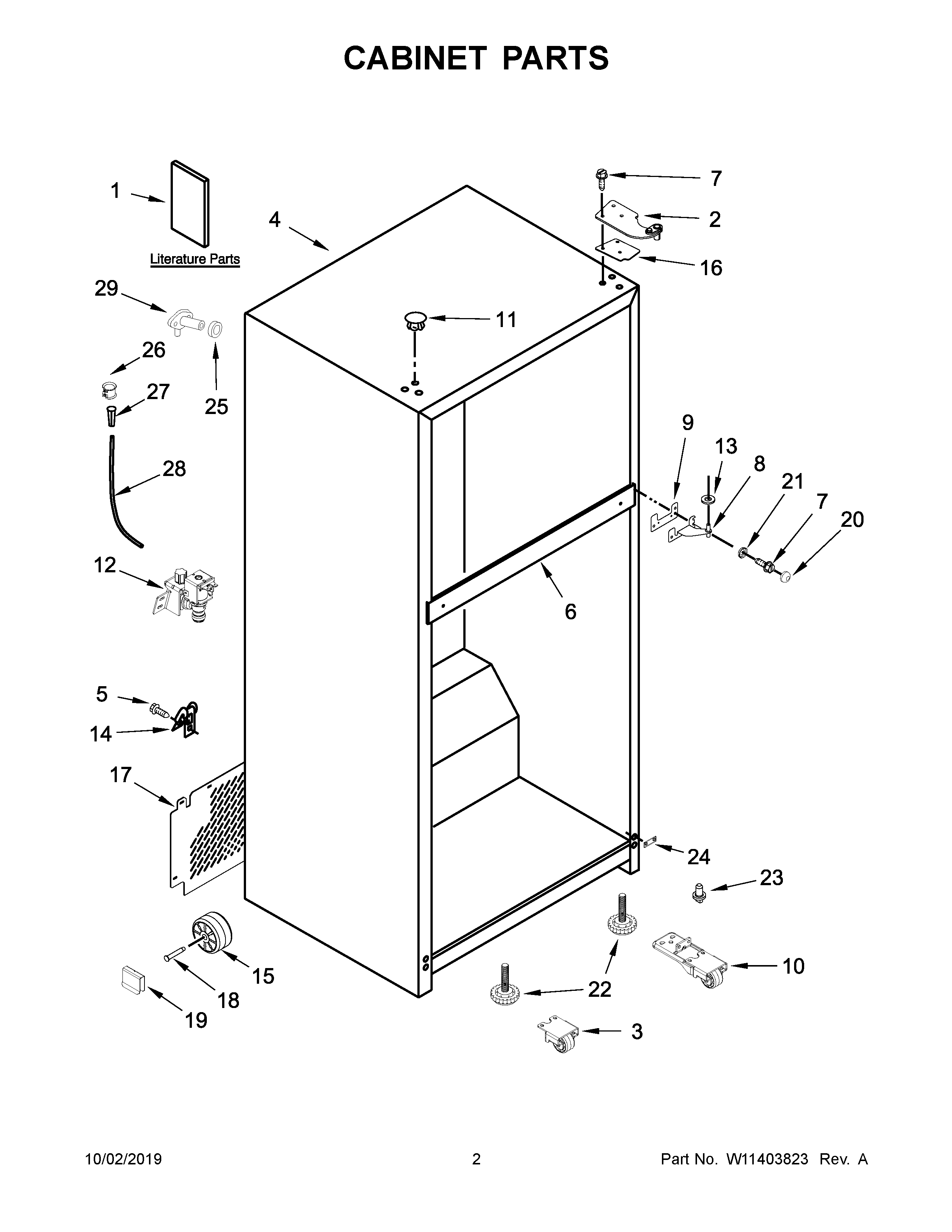

WRT519SZDG03 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1A	USE & CARE GUIDE
1	TECH SHEET
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	W11256723 Whirlpool Refrigerator CAB Roller
5	WP489442 Whirlpool Refrigerator Screw
6	CABINET (NOT A SERVICEABLE PART)
7	WP489497 Whirlpool Screw
8	WP2254618 Whirlpool Center Door Hinge
9	WP2183852 Whirlpool Refrigerator Shim
10	W11096015 Whirlpool Refrigerator Cab Roller
11	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
12	WPW10279909 Whirlpool Refrigerator Inlet Valve
13	WP489467 Whirlpool Hinge Shim
14	549193 Whirlpool Refrigerator Power Clamp
15	WPW10475495 Whirlpool Roller Assembly
16	W10883637 Whirlpool Refrigerator Hinge Shim
17	W11476772 Whirlpool Refrigerator Cover Assembly
18	W11594405 Whirlpool Axle
19	WP2174706 Whirlpool Refrigerator Pin Hitch
20	W10849198 Whirlpool Refrigerator Cap Screw
21	W10847959 Whirlpool Refrigerator Washer
22	W10854419 Whirlpool Refrigerator Leveling Leg
23	W11026307 Whirlpool Refrigerator Hinge Pin
24	W11269192 Whirlpool Refrigerator Hinge Shim
25	WP1106508 Whirlpool Refrigerator Gasket
26	W10861184 Whirlpool Refrigerator Clamp
27	4387491 Whirlpool Refrigerator Insert
28	W10823511 Whirlpool Refrigerator Water Tube
29	W11292468 Whirlpool Refrigerator Fitting
