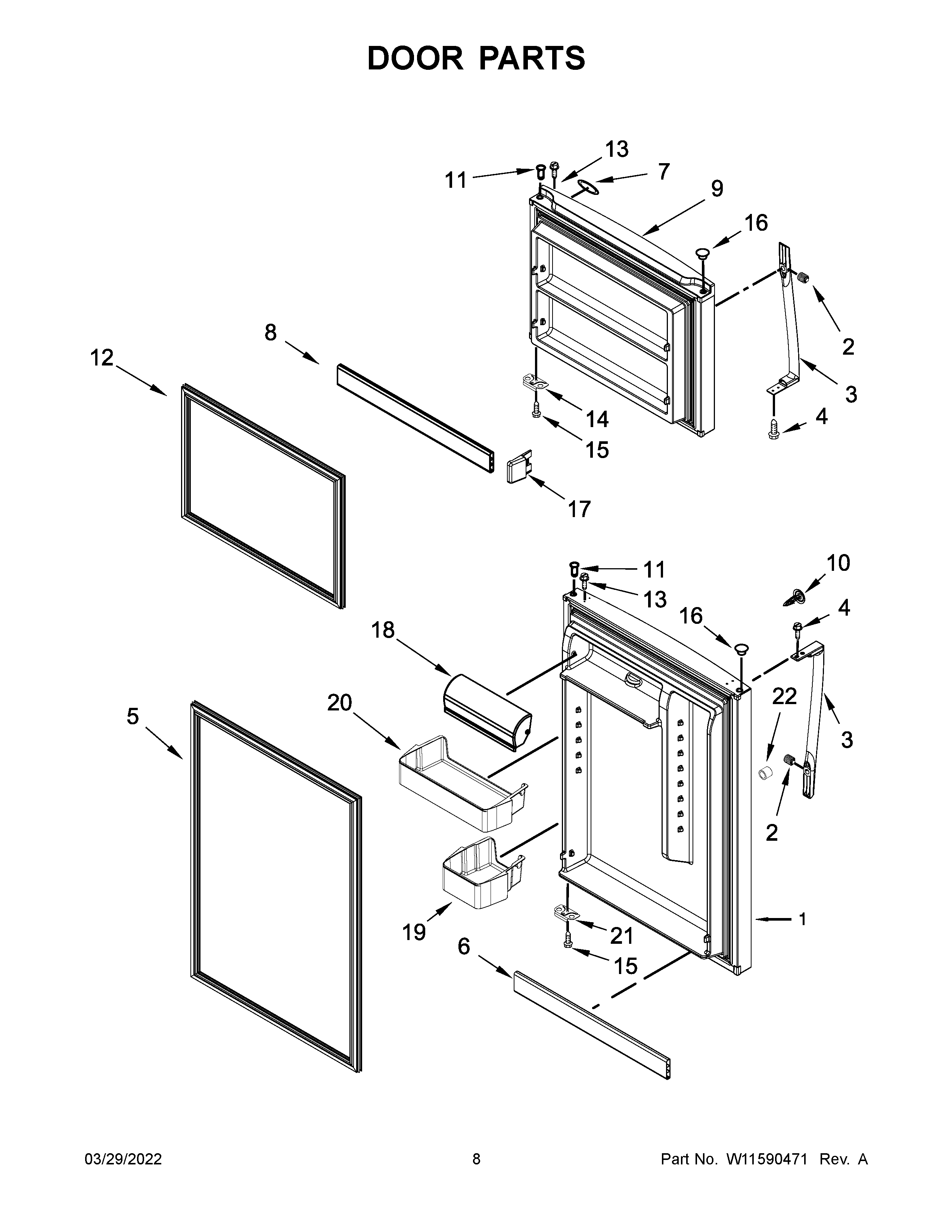

WRT519SZDG07 05 – DOOR PARTS

Products

Position	Product
1	LW10818792 Whirlpool Refrigerator Door FIP
2	WPW10170540 Whirlpool Screw
3	W10837029 Whirlpool Refrigerator Stainless Steel Door Handle
4	WP489357 Whirlpool Recessed Screw
5	GASKET-DOR
6	TRIM-DOOR
7	W11178521 Whirlpool Dishwasher Nameplate
8	W10592151 Whirlpool Refrigerator Door Trim
9	FREEZER DOOR (INCLUDES DOOR GASKET) (DOLOS STEEL)
10	W10830982 Whirlpool Handle Plug
11	W11676573 Whirlpool Thimble
12	GASKET DOOR FC GREY
13	WP8281206 Whirlpool Refrigerator Screw
14	W11745278 Whirlpool Bracket
15	SCREW
16	PLUG, HINGE SLEEVE (GREY)
17	W10838039 Whirlpool Shelf Retainer Bar
18	W11675283 Whirlpool Comp Door
19	WPW10308867 Whirlpool Refrigerator Cantilever Bin
20	WPW10308868 Whirlpool Refrigerator Door Bin
21	W11402852 Whirlpool Refrigerator Bracket
22	WPW10511911 Whirlpool Refrigerator Bushing
