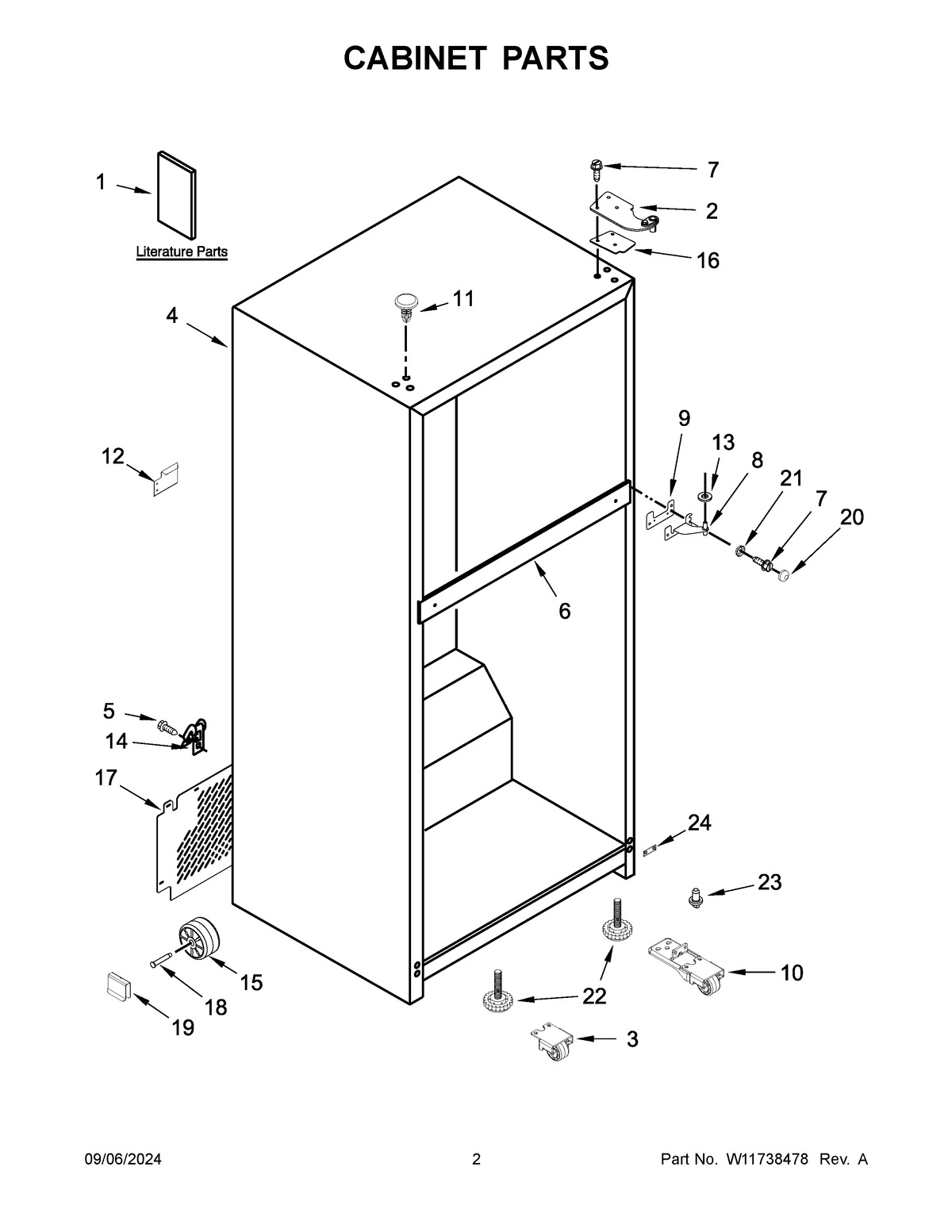

WRT519SZDW11 02 – CABINET PARTS

WRT519SZDW11 02 – CABINET PARTS

Written by

in

WRT519SZDW11 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1TECH SHEET
1AUSE AND CARE GUIDE
2W11714879 Whirlpool Door Hinge
3W11256723 Whirlpool Refrigerator CAB Roller
4CABINET (NOT SERVICED)
5WP489442 Whirlpool Refrigerator Screw
6RAIL, CENTER (NOT SERVICED)
7WP489497 Whirlpool Screw
8WP2254618 Whirlpool Center Door Hinge
9WP2183852 Whirlpool Refrigerator Shim
10W11096015 Whirlpool Refrigerator Cab Roller
11WPW10520304 Whirlpool Refrigerator Button Plug
11CWPW10520307 Whirlpool Refrigerator Replacement Plug Button
11BWPW10520306 Whirlpool Refrigerator Button Plug
11AWPW10520305 Whirlpool Refrigerator Button Plug
12ACCESS COVER, VALVE
13WP489467 Whirlpool Hinge Shim
14W11234470 Whirlpool Refrigerator Clamp
15WPW10475495 Whirlpool Roller Assembly
17W11476772 Whirlpool Refrigerator Cover Assembly
18W11594405 Whirlpool Axle
19WP2174706 Whirlpool Refrigerator Pin Hitch
20W10846529 Whirlpool Refrigerator Screw Cap
20BW10679138 Whirlpool Screw Cap
20CW10849198 Whirlpool Refrigerator Cap Screw
20AW10853677 Whirlpool Refrigerator Screw Cap
21W10847959 Whirlpool Refrigerator Washer
22W10854419 Whirlpool Refrigerator Leveling Leg
23W11026307 Whirlpool Refrigerator Hinge Pin
24W11528669 Whirlpool Hinge Shim
