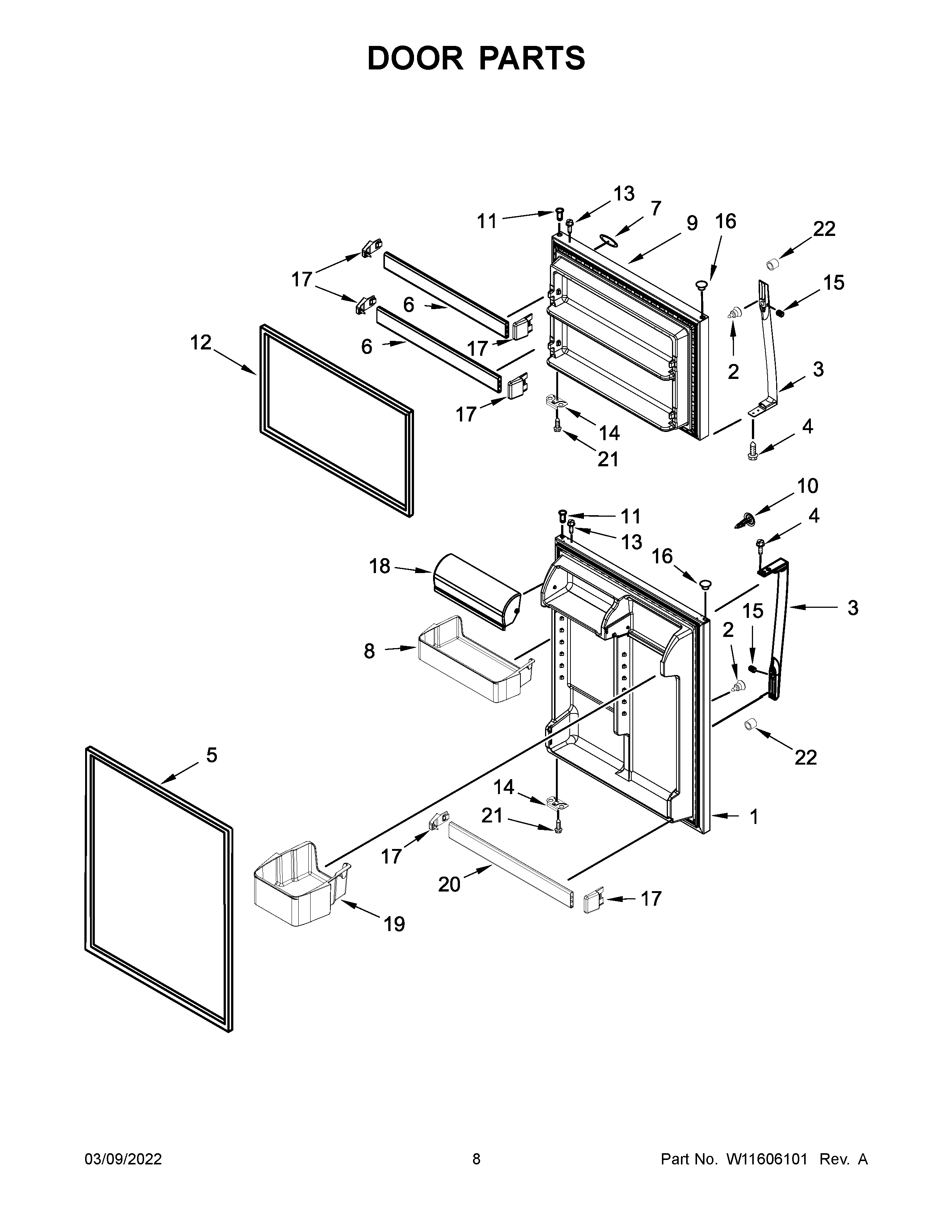

WRT541SZDB01 05 – DOOR PARTS

WRT541SZDB01 05 – DOOR PARTS

Written by

in

WRT541SZDB01 05 – DOOR PARTS

Products

PositionProduct
1ALW10648575 Whirlpool Refrigerator Door FIP
1BLW10648584 Whirlpool Refrigerator Door FIP
1LW10646224 Whirlpool Refrigerator Door FIP
2WP489357 Whirlpool Recessed Screw
3BW10837029 Whirlpool Refrigerator Stainless Steel Door Handle
3AW10839425 Whirlpool Refrigerator Handle
3W10837577 Whirlpool Refrigerator Door Handle
4WPW10170540 Whirlpool Screw
5A2177311 Whirlpool Refrigerator Magnetic Door Gasket
5W10860480 Whirlpool Refrigerator Door Gasket
5BW10249195 Whirlpool Refrigerator Door Gasket
6W10592150 Whirlpool Refrigerator Door Trim
7W11178521 Whirlpool Dishwasher Nameplate
8WPW10308868 Whirlpool Refrigerator Door Bin
9LW10646225 Whirlpool Refrigerator FIP Door
9ALW10648577 Whirlpool Refrigerator Door Flip
9BLW10648583 Whirlpool Refrigerator DOR FIP
10BW10830982 Whirlpool Handle Plug
10AW10830983 Whirlpool Refrigerator Handle Plug
10W10830984 Whirlpool Handle Plug
11W11189115 Whirlpool Refrigerator Thimble
12A2177310 Whirlpool Refrigerator Door Gasket
12BW10249196 Whirlpool Refrigerator Gasket FIP
12W10741118 Whirlpool Refrigerator Door Gasket
13WP8281206 Whirlpool Refrigerator Screw
14W11745278 Whirlpool Bracket
15SCREW, SET
16AWP2212651 Whirlpool Refrigerator Button Plug
16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
16BPLUG, HINGE SLEEVE (GREY)
17W10838039 Whirlpool Shelf Retainer Bar
18W11675283 Whirlpool Comp Door
19WPW10308869 Whirlpool Door Bin
20W11126062 Whirlpool Refrigerator Door Trim
21WP681249 Whirlpool Screw Assembly
22WPW10511911 Whirlpool Refrigerator Bushing
