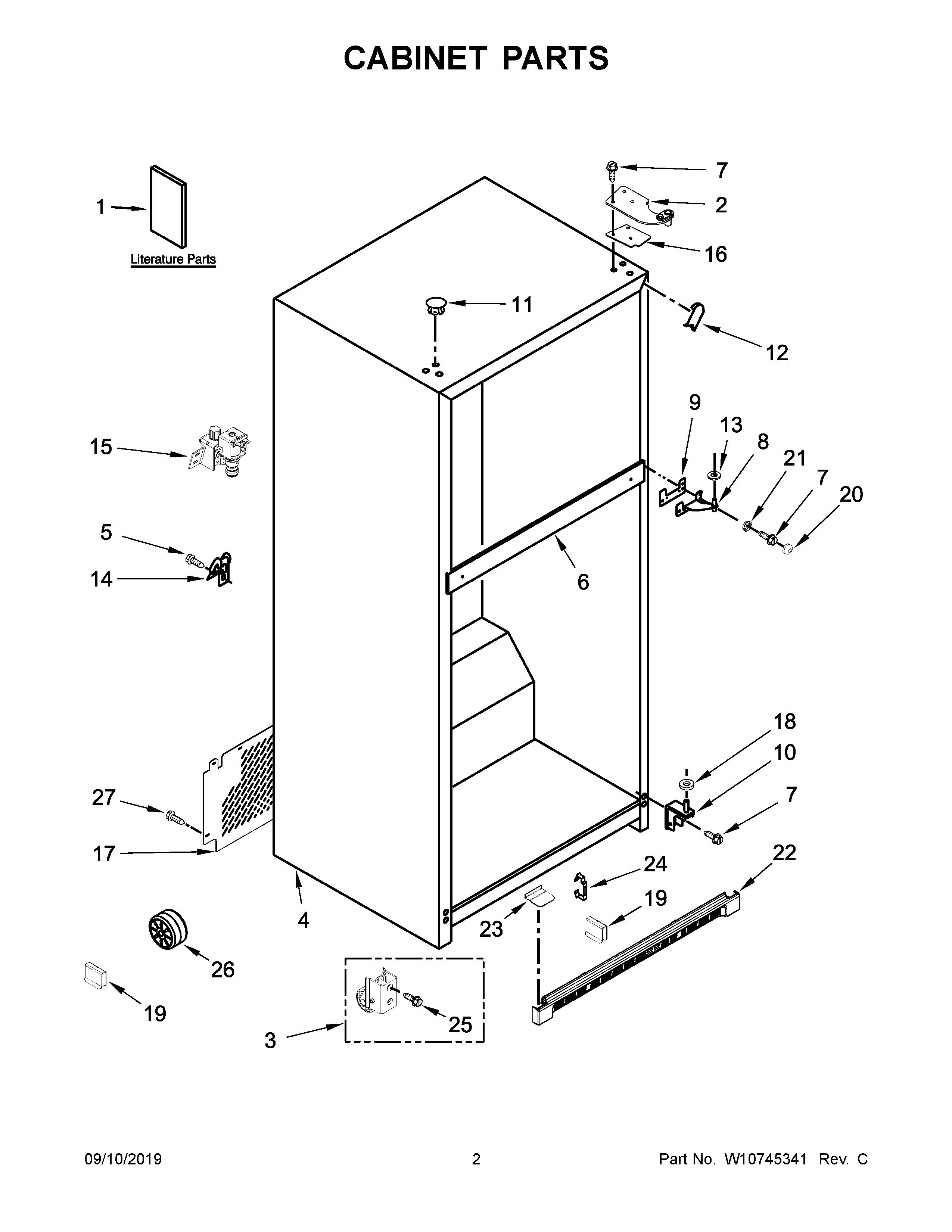

WRT541SZDM00 02 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1A	USE & CARE GUIDE
1B	ENERGY GUIDE
1C	Modular Icemaker Service Sheet
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	W10849386 Whirlpool Refrigerator CAB Roller
5	WP489442 Whirlpool Refrigerator Screw
6	CABINET (NOT A SERVICEABLE PART)
7	WP489497 Whirlpool Screw
8	WP2254618 Whirlpool Center Door Hinge
9	WP2183852 Whirlpool Refrigerator Shim
10	WP2254473 Whirlpool Refrigerator Door Hinge
11	WPW10520304 Whirlpool Refrigerator Button Plug
11A	WPW10520305 Whirlpool Refrigerator Button Plug
11B	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
12B	W11219642 Whirlpool Refrigerator Filler
12A	W11219641 Whirlpool Refrigerator Filler
12	W11219639 Whirlpool Refrigerator Filler
13	WP489467 Whirlpool Hinge Shim
14	W11234470 Whirlpool Refrigerator Clamp
15	WPW10279909 Whirlpool Refrigerator Inlet Valve
16	W10883637 Whirlpool Refrigerator Hinge Shim
17	W11307290 Whirlpool Unit Cover
18	WP487576 Whirlpool Washer
19	WP2174706 Whirlpool Refrigerator Pin Hitch
20A	W10853677 Whirlpool Refrigerator Screw Cap
20	W10846529 Whirlpool Refrigerator Screw Cap
20B	W10849198 Whirlpool Refrigerator Cap Screw
21	W10847959 Whirlpool Refrigerator Washer
22	W10839426 Whirlpool Refrigerator Grille
22B	W10860791 Whirlpool Refrigerator Grille
22A	W10860799 Whirlpool Refrigerator Grille
23B	W10468611 Whirlpool Refrigerator Endcap
23A	W10468609 Whirlpool Refrigerator End Cap
23	W10600071 Whirlpool Refrigerator Endcap
24	2254385 Whirlpool Refrigerator Clip
25	BOLT
26	WPW10475495 Whirlpool Roller Assembly
27	WP488729 Whirlpool Refrigerator Door Screw
28	W11292468 Whirlpool Refrigerator Fitting
29	WP1106508 Whirlpool Refrigerator Gasket
30	W10861184 Whirlpool Refrigerator Clamp
31	4387491 Whirlpool Refrigerator Insert
32	W10823511 Whirlpool Refrigerator Water Tube
