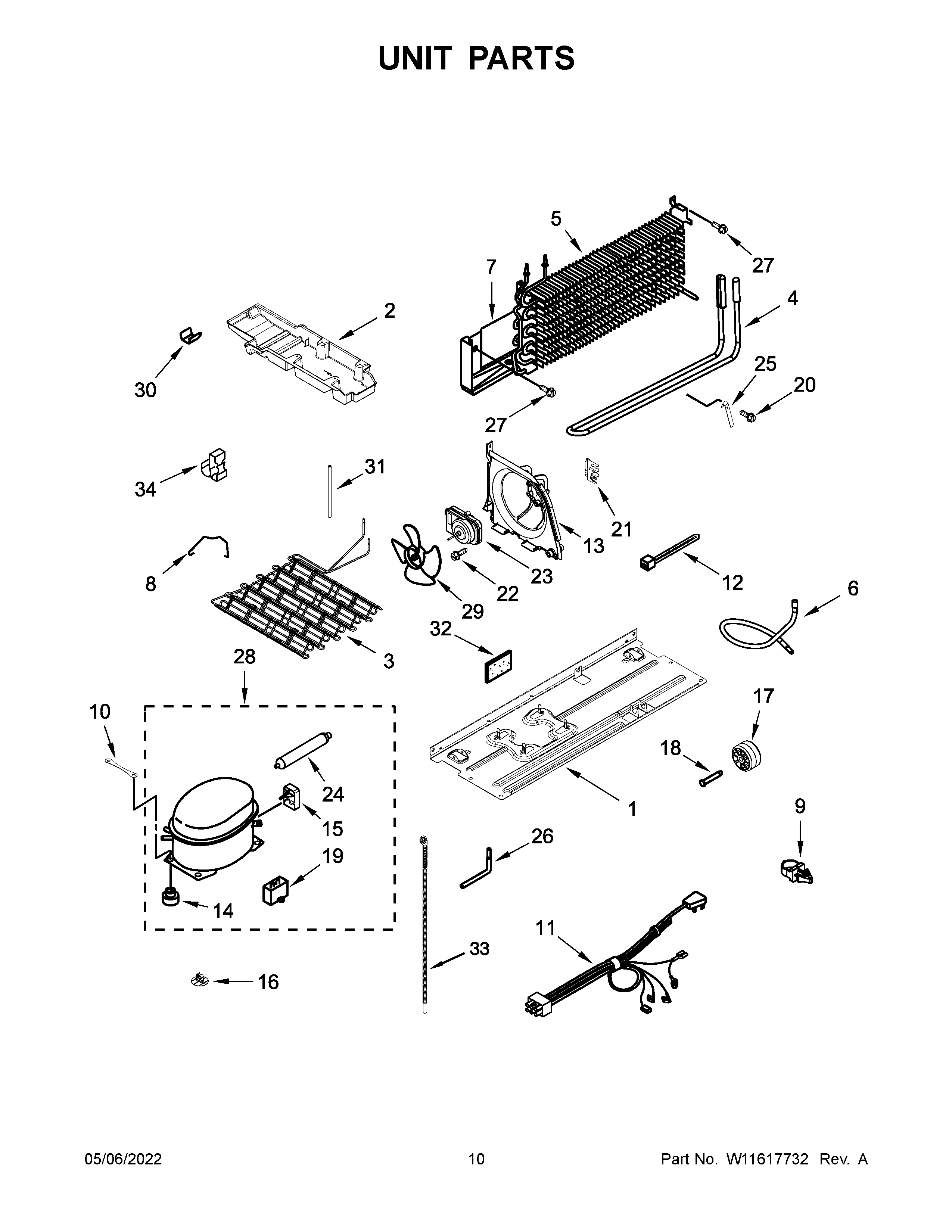

WRT541SZDZ01 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W11396825 Whirlpool Plate
2	W10890667 Whirlpool Refrigerator Drip Pan
3	W10609393 Whirlpool Refrigerator Condenser
3B	W11506624 Whirlpool Refrigerator Coupler
4	W11562215 Whirlpool Refrigerator Heater
5A	W11504450 Whirlpool Refrigerator Coupler
5	W11578004 Whirlpool Refrigerator Evaporator
6	W11741026 Whirlpool Tube Assembly
7	W11562216 Whirlpool Shield
8	W11577799 Whirlpool Refrigerator Clip
9	2219077 Whirlpool Refrigerator Clip
10	W10236396 Whirlpool Refrigerator Strap
11	W11625681 Whirlpool Refrigerator Wire Harness
12	WPW10339879 Whirlpool Wire Tie
13	W11605794 Whirlpool Air Baffle
14	W11678963 Whirlpool Grommet
15	W11547180 Whirlpool Refrigerator Start Device
16	W10815861 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	WPW10662129 Whirlpool Refrigerator Run Capacitor
20	WP489478 Whirlpool Refrigerator Screw
21	BRACKET, EVAPORATOR
22	W11501418 Whirlpool Refrigerator Screw
23	W11127829 Whirlpool Refrigerator Condenser Motor
24	W11109499 Whirlpool Refrigerator Tube
24B	W11504447 Whirlpool Refrigerator Coupler
24A	W11504445 Whirlpool Refrigerator Coupler
25	HEAT PROBE
26	W11661102 Whirlpool Tube
27	WP489442 Whirlpool Refrigerator Screw
28	COMPRESSOR
28C	COUPLER
28B	W11578570 Whirlpool Refrigerator Coupler
29	W11193484 Whirlpool Fan Blade
30	W10683556 Whirlpool Refrigerator Clip
31	W11190084 Whirlpool Refrigerator Drain Tube
32	W11553819 Whirlpool Refrigerator Insulation
33	W10475011 Whirlpool Refrigerator Drain Tube
34	W10812039 Whirlpool Clip
