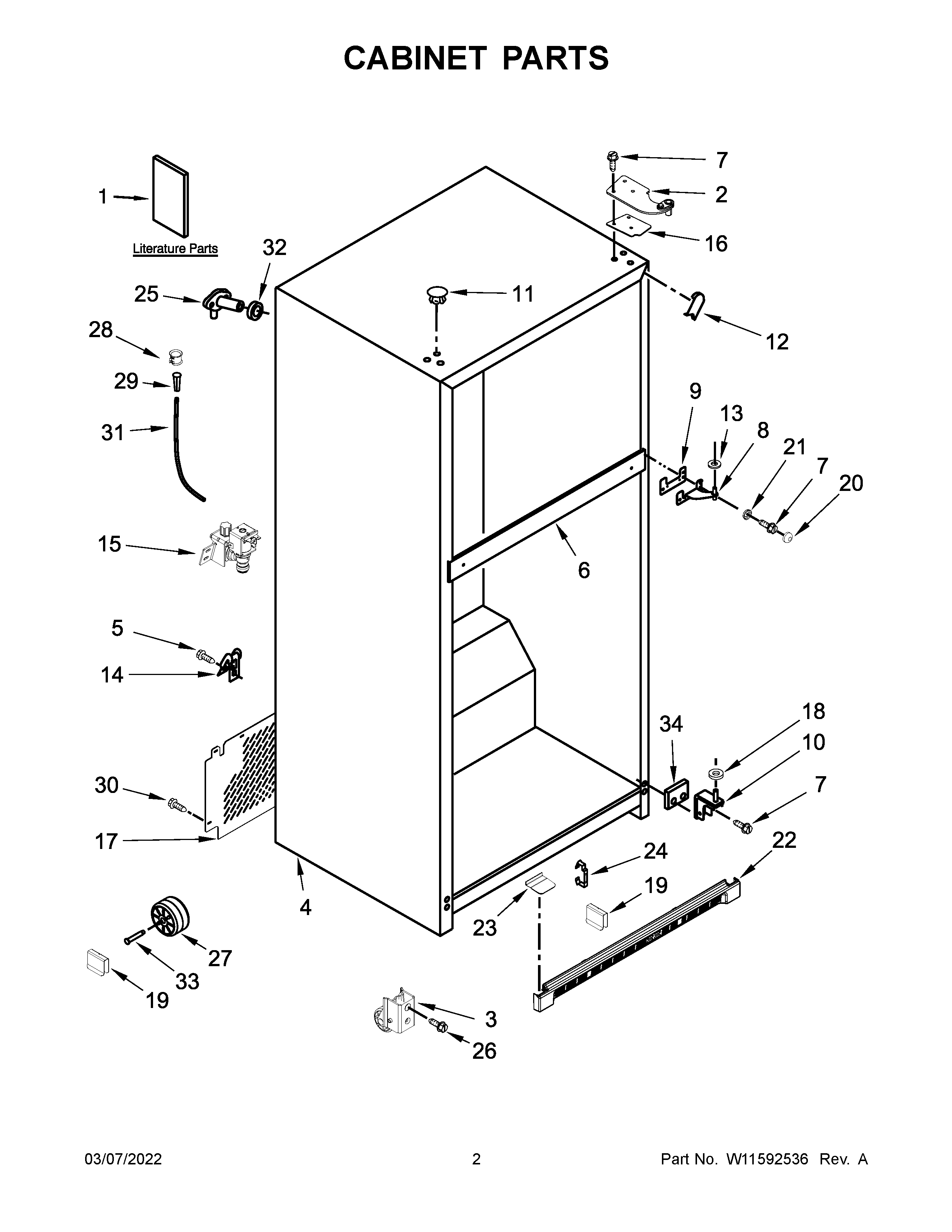

WRT541SZHV01 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1A	USE & CARE GUIDE
1	SERVICE & WIRING SHEET
1C	Modular Icemaker Service Sheet
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	W10849386 Whirlpool Refrigerator CAB Roller
4	CABINET (NOT SERVICED)
5	WP489442 Whirlpool Refrigerator Screw
6	RAIL, CENTER (NOT SERVICED)
7	WP489497 Whirlpool Screw
8	WP2254618 Whirlpool Center Door Hinge
9	WP2183852 Whirlpool Refrigerator Shim
10	WP2254473 Whirlpool Refrigerator Door Hinge
11	WPW10520305 Whirlpool Refrigerator Button Plug
12	W11219641 Whirlpool Refrigerator Filler
13	WP489467 Whirlpool Hinge Shim
14	W11234470 Whirlpool Refrigerator Clamp
15	WPW10279909 Whirlpool Refrigerator Inlet Valve
16	W10883637 Whirlpool Refrigerator Hinge Shim
17	W11307290 Whirlpool Unit Cover
18	WP487576 Whirlpool Washer
19	WP2174706 Whirlpool Refrigerator Pin Hitch
20	W10853677 Whirlpool Refrigerator Screw Cap
21	W10847959 Whirlpool Refrigerator Washer
22	W10860799 Whirlpool Refrigerator Grille
23	W10468609 Whirlpool Refrigerator End Cap
24	2254385 Whirlpool Refrigerator Clip
25	W11292468 Whirlpool Refrigerator Fitting
26	BOLT
27	WPW10475495 Whirlpool Roller Assembly
28	W10861184 Whirlpool Refrigerator Clamp
29	4387491 Whirlpool Refrigerator Insert
30	WP488729 Whirlpool Refrigerator Door Screw
31	W10823511 Whirlpool Refrigerator Water Tube
32	WP1106508 Whirlpool Refrigerator Gasket
33	W11594405 Whirlpool Axle
34	WP2201567 Whirlpool Hinge Shim
