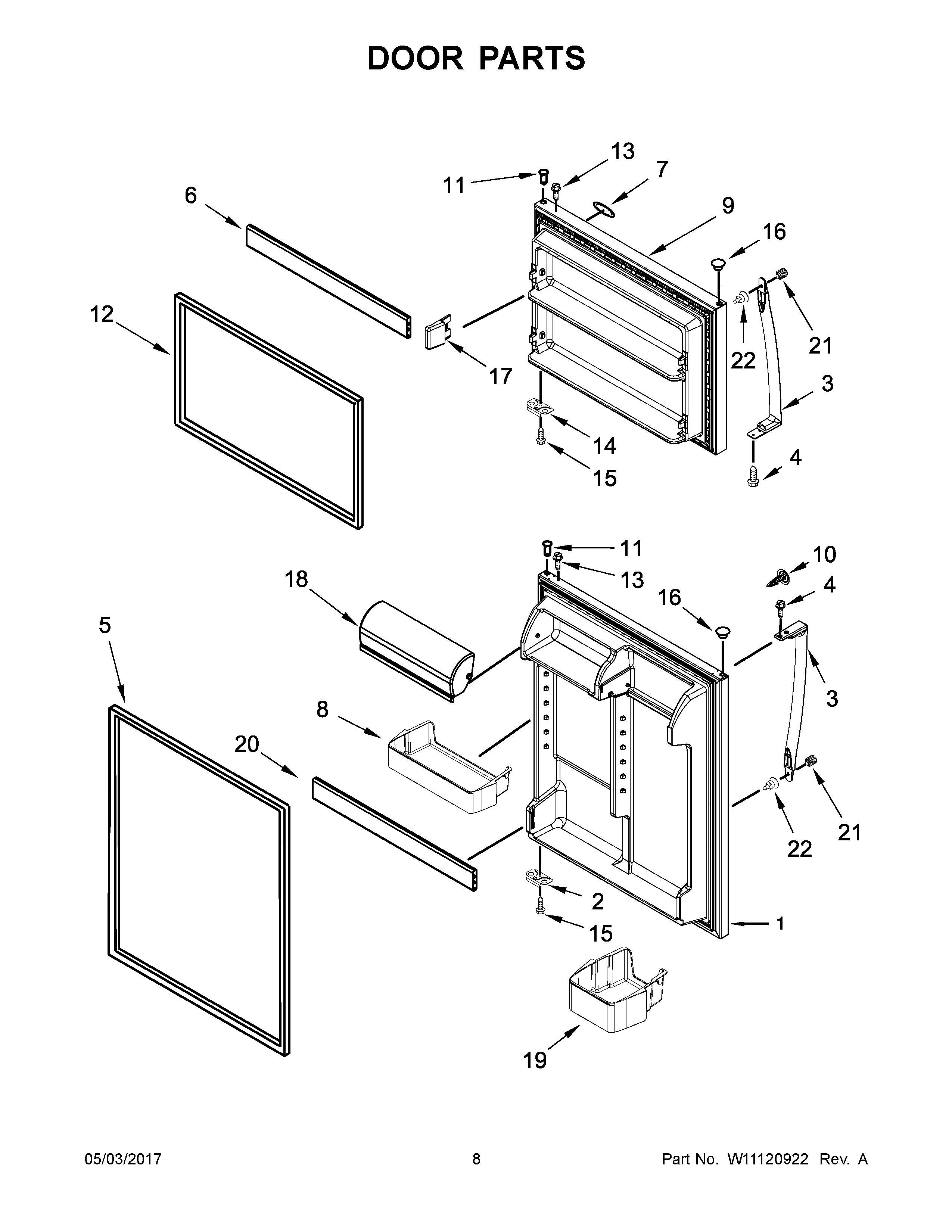

WRT549SZDB01 05 – DOOR PARTS

Products

Position	Product
1A	LW10672970 Whirlpool Refrigerator Door FIP
1	LW10636232 Whirlpool Refrigerator DOR-FIP
1B	LW10672972 Whirlpool Refrigerator FIP Door
2	W11402852 Whirlpool Refrigerator Bracket
3A	W10839425 Whirlpool Refrigerator Handle
3B	W10837029 Whirlpool Refrigerator Stainless Steel Door Handle
3	W10837577 Whirlpool Refrigerator Door Handle
4	WP489357 Whirlpool Recessed Screw
5	W10838574 Whirlpool Door Gasket
5A	W11240749 Whirlpool Refrigerator Door Gasket
5B	GASKET-DOR
6	W10592151 Whirlpool Refrigerator Door Trim
7A	W11178521 Whirlpool Dishwasher Nameplate
8	WPW10308868 Whirlpool Refrigerator Door Bin
9B	LW10672966 Whirlpool Refrigerator Duct Over Rack – FIP
9A	LW10672964 Whirlpool Refrigerator DOR FIP
9	LW10636404 Whirlpool Refrigerator Door FIP
10	W10830984 Whirlpool Handle Plug
10B	W10830982 Whirlpool Handle Plug
10A	W10830983 Whirlpool Refrigerator Handle Plug
11B	W11676573 Whirlpool Thimble
11	THIMBLE
11A	W11189115 Whirlpool Refrigerator Thimble
12	W10861499 Whirlpool Door Gasket
12A	W11229610 Whirlpool Refrigerator Door Gasket
12B	GASKET DOOR FC GREY
13	WP8281206 Whirlpool Refrigerator Screw
14	W11745278 Whirlpool Bracket
15	SCREW
16A	WP2212651 Whirlpool Refrigerator Button Plug
16	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
16B	PLUG, HINGE SLEEVE (GREY)
17	W10838039 Whirlpool Shelf Retainer Bar
18	W11675283 Whirlpool Comp Door
19	WPW10308867 Whirlpool Refrigerator Cantilever Bin
20	TRIM-DOOR
21	WPW10511911 Whirlpool Refrigerator Bushing
22	WPW10170540 Whirlpool Screw
