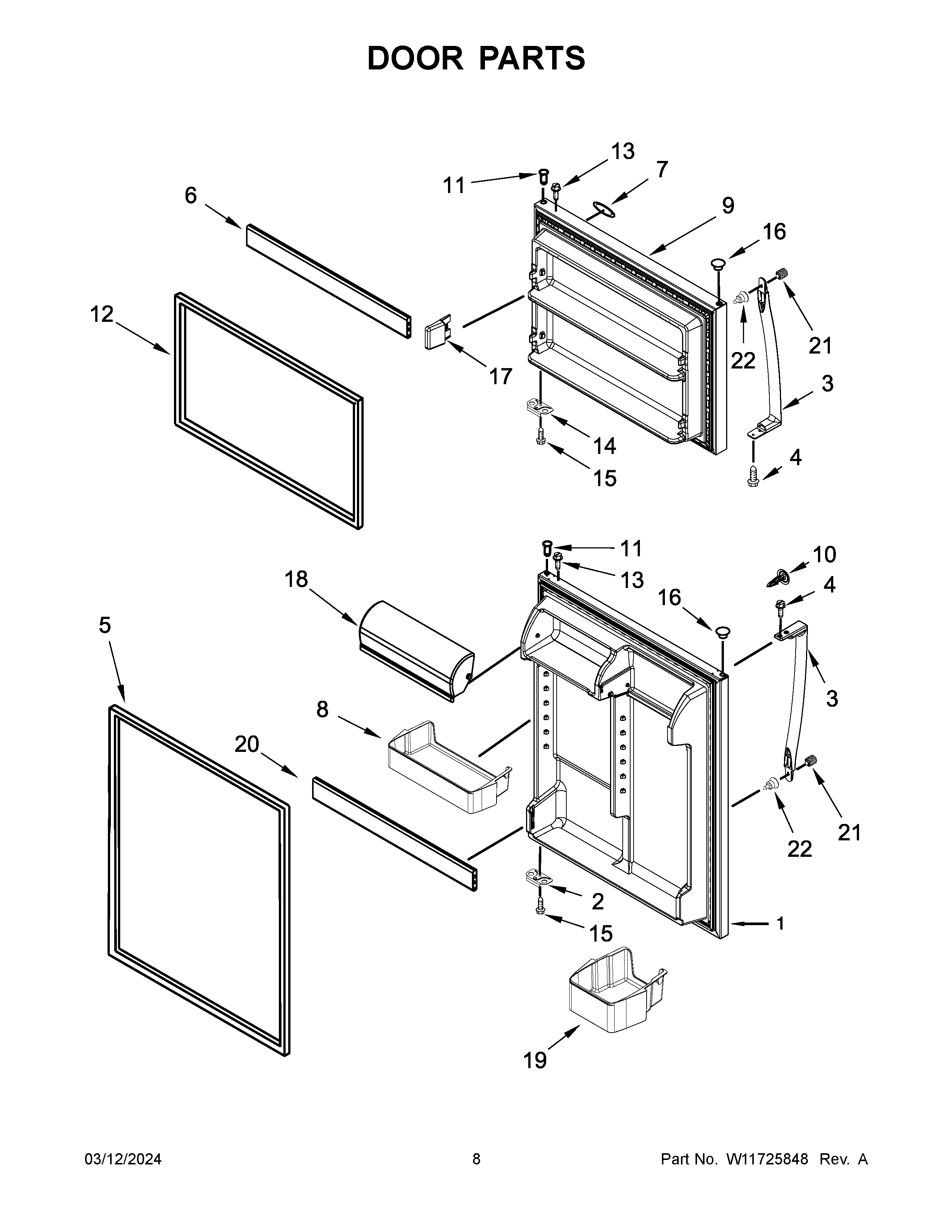

WRT549SZDM06 05 – DOOR PARTS

WRT549SZDM06 05 – DOOR PARTS

Written by

in

WRT549SZDM06 05 – DOOR PARTS

Products

PositionProduct
1ALW10672970 Whirlpool Refrigerator Door FIP
1LW10636232 Whirlpool Refrigerator DOR-FIP
1BLW10672972 Whirlpool Refrigerator FIP Door
2W11402852 Whirlpool Refrigerator Bracket
3AW10839425 Whirlpool Refrigerator Handle
3BW10837029 Whirlpool Refrigerator Stainless Steel Door Handle
3W10837577 Whirlpool Refrigerator Door Handle
4WP489357 Whirlpool Recessed Screw
5W10838574 Whirlpool Door Gasket
5AW11240749 Whirlpool Refrigerator Door Gasket
5BGASKET-DOR
6W10592151 Whirlpool Refrigerator Door Trim
7W11178521 Whirlpool Dishwasher Nameplate
8WPW10308868 Whirlpool Refrigerator Door Bin
9BLW10672966 Whirlpool Refrigerator Duct Over Rack – FIP
9ALW10672964 Whirlpool Refrigerator DOR FIP
9LW10636404 Whirlpool Refrigerator Door FIP
10W10830984 Whirlpool Handle Plug
10BW10830982 Whirlpool Handle Plug
10AW10830983 Whirlpool Refrigerator Handle Plug
11BW11676573 Whirlpool Thimble
11THIMBLE
11AW11189115 Whirlpool Refrigerator Thimble
12W10861499 Whirlpool Door Gasket
12AW11229610 Whirlpool Refrigerator Door Gasket
12BGASKET DOOR FC GREY
13WP8281206 Whirlpool Refrigerator Screw
14W11745278 Whirlpool Bracket
15SCREW
16AWP2212651 Whirlpool Refrigerator Button Plug
16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
16BPLUG, HINGE SLEEVE (GREY)
17W10838039 Whirlpool Shelf Retainer Bar
18W11675283 Whirlpool Comp Door
19WPW10308867 Whirlpool Refrigerator Cantilever Bin
20TRIM-DOOR
21WPW10511911 Whirlpool Refrigerator Bushing
22WPW10170540 Whirlpool Screw
