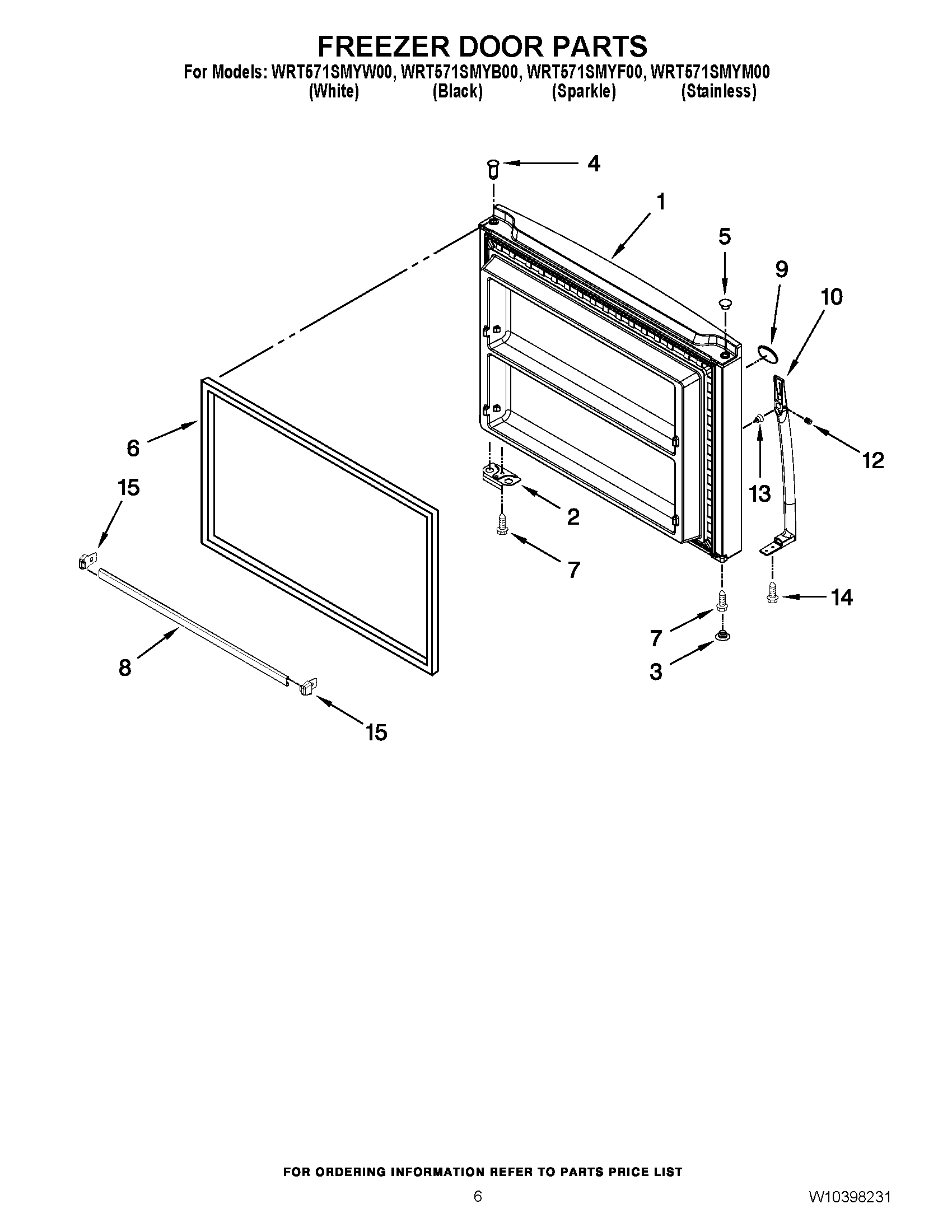

WRT571SMYF00 04 – FREEZER DOOR PARTS

WRT571SMYF00 04 – FREEZER DOOR PARTS

Written by

in

WRT571SMYF00 04 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10353319 Whirlpool Refrigerator DOR-FIP SS
1FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (BLACK)
1FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (WHITE)
1LW10353323 Whirlpool Refrigerator Door Service Kit
2W11745278 Whirlpool Bracket
3WPW10520307 Whirlpool Refrigerator Replacement Plug Button
3WP2183998 Whirlpool Refrigerator Button Plug
3WP2151652 Whirlpool Refrigerator Button Plug
4W11189115 Whirlpool Refrigerator Thimble
5PLUG, HINGE SLEEVE (GREY)
5WP2212651 Whirlpool Refrigerator Button Plug
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6DOOR GASKET, MAGNETIC (BLACK)
6W10249196 Whirlpool Refrigerator Gasket FIP
6WHITE DOOR GASKET-FIP
7WP681249 Whirlpool Screw Assembly
8WPW10469912 Whirlpool Refrigerator Door Trim
9W11178521 Whirlpool Dishwasher Nameplate
9WPW10393264 Whirlpool Refrigerator Nameplate
10WPW10646617 Whirlpool Refrigerator Handle
10WPW10498430 Whirlpool Refrigerator Handle
10WPW10498429 Whirlpool Refrigerator Handle
12SCREW, SET
13WPW10170540 Whirlpool Screw
14WP489357 Whirlpool Recessed Screw
15CAP, TRIM END (RIGHT HAND)
15WPW10338485 Whirlpool Refrigerator End Cap
