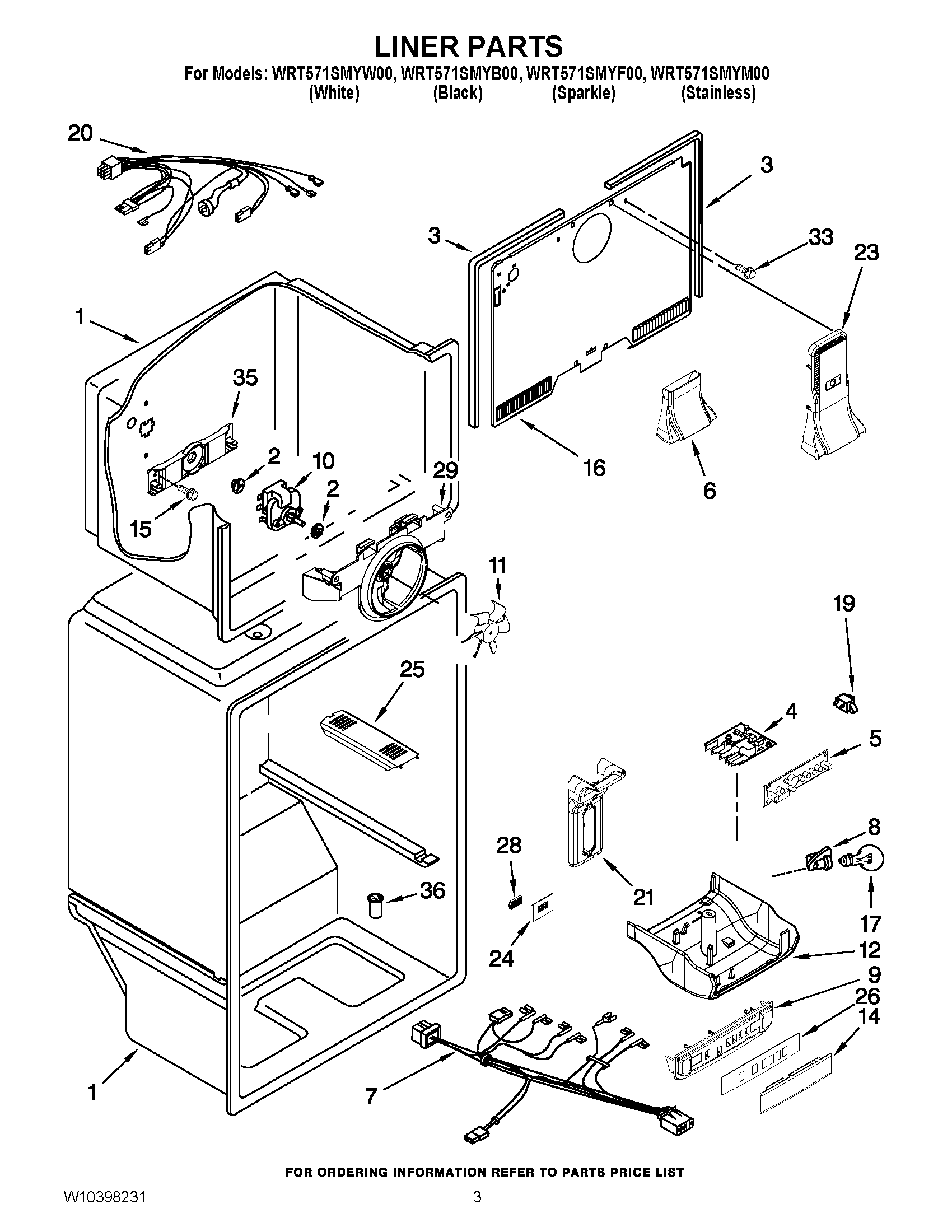

WRT571SMYM00 02 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WPW10392194-includeCORE Whirlpool WPW10392194 Refrigerator Electronic Control Board + Core
5	WPW10336519-includeCORE Whirlpool WPW10336519 Refrigerator Electronic Control Board + Core
6	ASSEMBLY, TOWER CONNECTION
7	W10292528 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	FASCIA, CONTROL
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10316942 Whirlpool Refrigerator Control Box
14	LENS, FASCIA
15	WP488163 Whirlpool Refrigerator Screw
16	COVER, EVAPORATOR
17	W10887190 Whirlpool Refrigerator Light Bulb
19	W11384469 Whirlpool Door Switch
20	WPW10283809 Whirlpool Refrigerator Wire Harness
21	WPW10305175 Whirlpool Refrigerator Cover
23	TOWER, AIR
24	WPW10330850 Whirlpool Refrigerator Grille
25	WPW10348614 Whirlpool Refrigerator Cover
26	OVERLAY
28	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
29	W10850162 Whirlpool Refrigerator Orifice
33	WP489478 Whirlpool Refrigerator Screw
35	2254454 Whirlpool Refrigerator Bracket
36	WP2210509 Whirlpool Refrigerator Tub Valve
