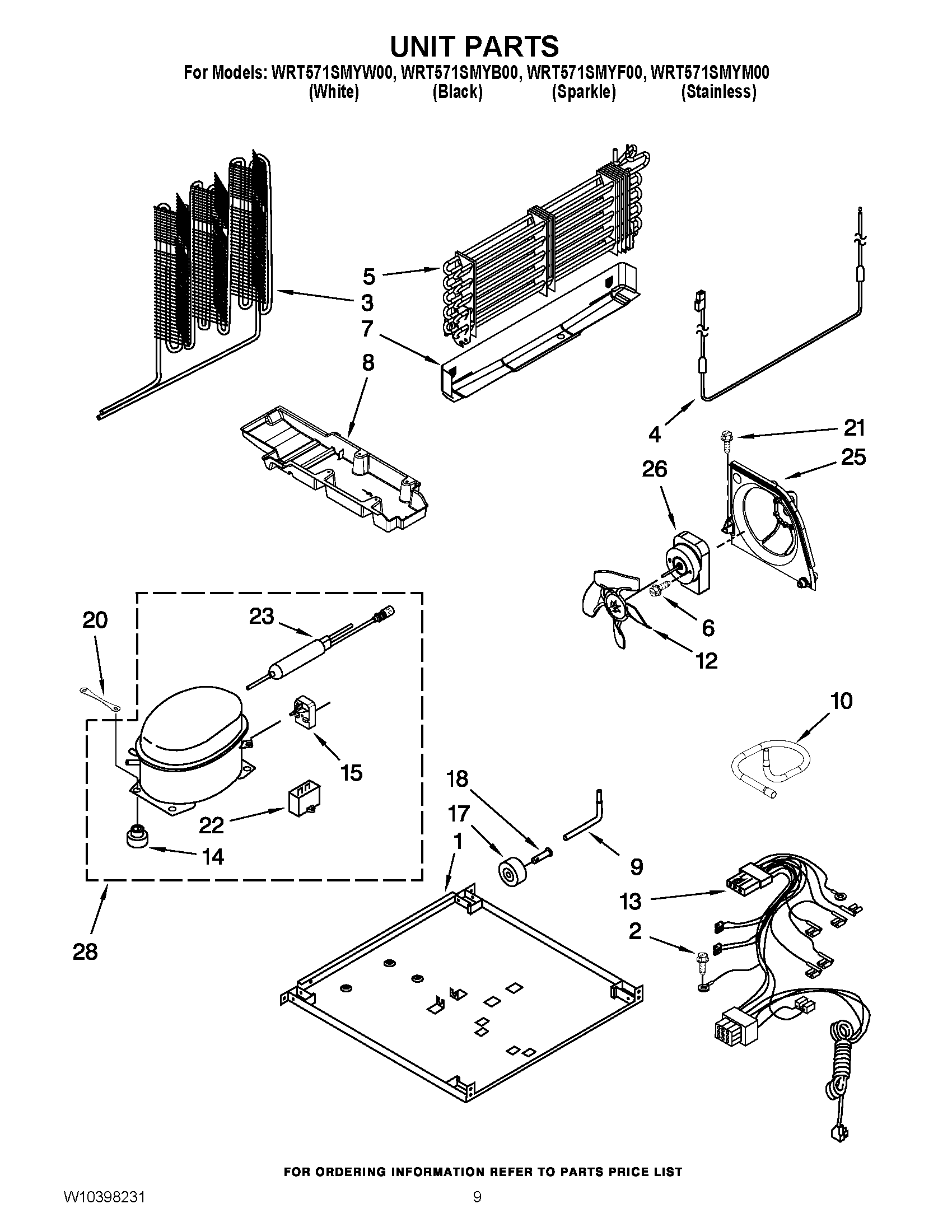

WRT571SMYM00 06 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
1	W11396825 Whirlpool Plate
2	WP489128 Whirlpool Refrigerator Screw
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
8	W10890667 Whirlpool Refrigerator Drip Pan
9	2154109 Whirlpool Refrigerator Tube
10	W10466682 Whirlpool Refrigerator Tube
12	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
13	WIRE ASSY. UNIT
14	876811 Whirlpool Grommet
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WPW10197428 Whirlpool Start Device
15	WPW10197426 Whirlpool Refrigerator Start Device
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
20	W10236396 Whirlpool Refrigerator Strap
21	3400518 Whirlpool Oven Foot Mount Screw
22	WPW10662129 Whirlpool Refrigerator Run Capacitor
23	WPW10143759 Whirlpool Dryer Filter
25	WP2315541 Whirlpool Refrigerator Air Baffle
26	WP2188874 Whirlpool Refrigerator Condenser Motor
28	W10309988 Whirlpool Refrigerator Compressor
