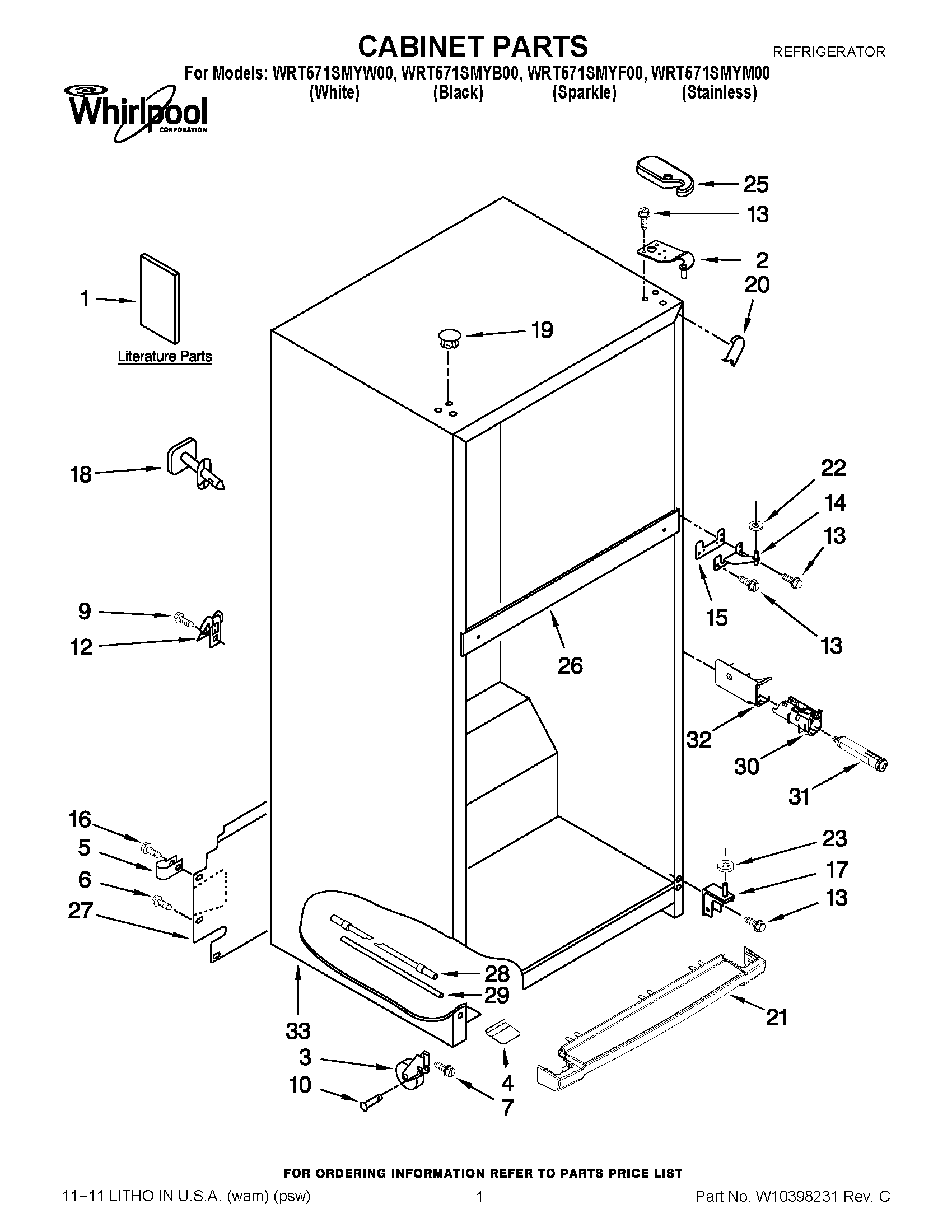

WRT571SMYW00 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	ENERGY LABEL
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	W10849386 Whirlpool Refrigerator CAB Roller
4	W10353930 Whirlpool Refrigerator Grill End Cap
4	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
4	WPW10353932 Whirlpool Refrigerator Grille Endcap
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489427 Whirlpool Refrigerator Screw
7	W10850698 Whirlpool Refrigerator Screw
9	WP489442 Whirlpool Refrigerator Screw
10	W11594405 Whirlpool Axle
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14	WP2254618 Whirlpool Center Door Hinge
15	WP2183852 Whirlpool Refrigerator Shim
16	WP489464 Whirlpool Refrigerator Screw
17	WP2254473 Whirlpool Refrigerator Door Hinge
19	WP2183998 Whirlpool Refrigerator Button Plug
19	WP2151652 Whirlpool Refrigerator Button Plug
19	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
20	W11252732 Whirlpool Refrigerator Filler
20	WPW10283959 Whirlpool Refrigerator Filler
20	W10851579 Whirlpool Refrigerator Filler
21	WPW10353941 Whirlpool Refrigerator Grille
21	WPW10353939 Whirlpool Refrigerator Grille
21	WPW10300129 Whirlpool Refrigerator Grille
22	WP489467 Whirlpool Hinge Shim
23	WP487576 Whirlpool Washer
25	W10353947A Whirlpool Refrigerator Cover
25	W10331560A Whirlpool Refrigerator Cover
25	W10353950A Whirlpool Refrigerator Cover
25	COVER, HINGE (WHITE LS)
25	W10353948A Whirlpool Refrigerator Cover
25	W10353945A Whirlpool Refrigerator Cover
27	WPW10384414 Whirlpool Refrigerator Unit Cover
28	TUBE, FILTER OUTLET
29	TUBE, FILTER OUTLET
30	W10844267 Whirlpool Refrigerator Housing
31	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
32	WPW10306392 Whirlpool Refrigerator Filter Cover
33	CABINET (NOT A SERVICEABLE PART)
