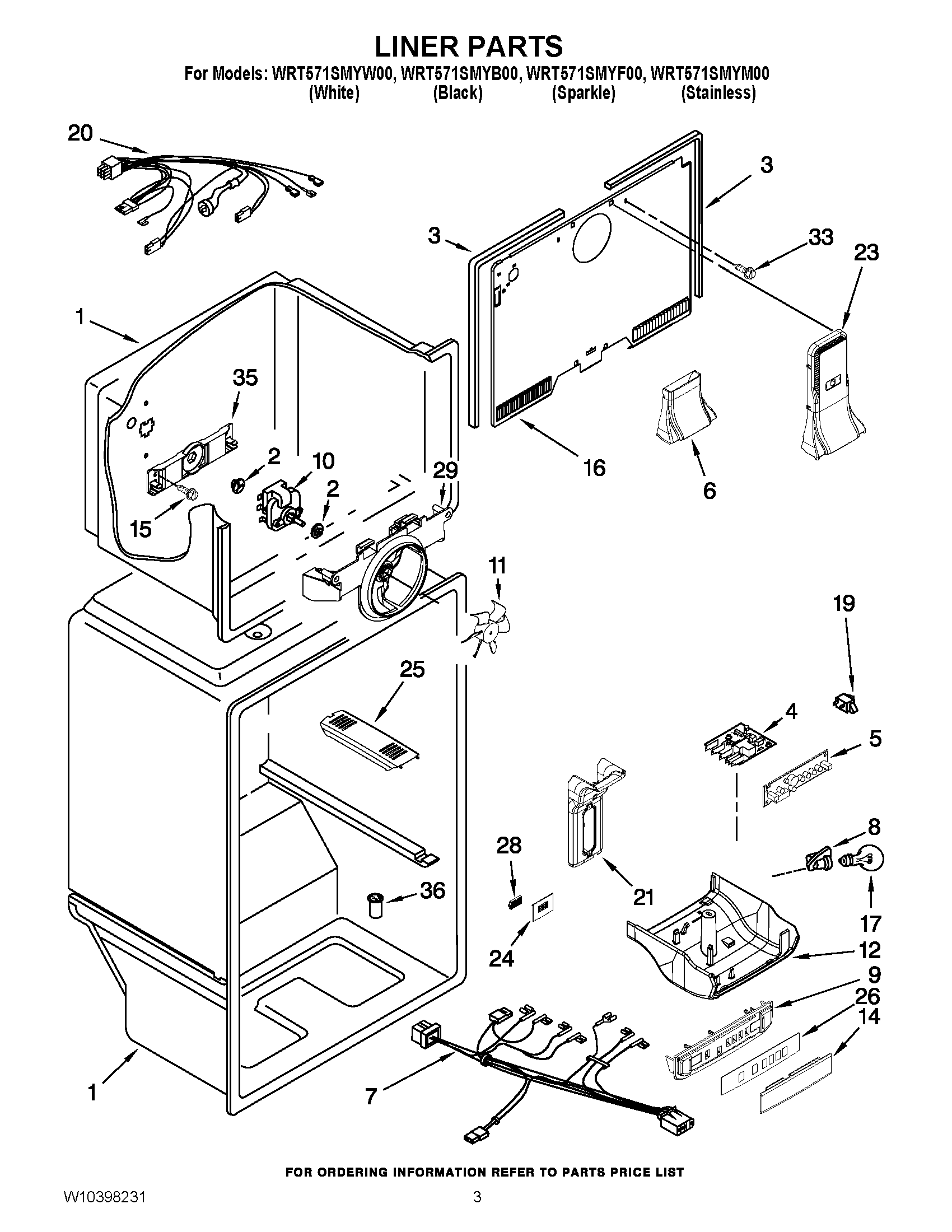

WRT571SMYW00 02 – LINER PARTSadmin2025-04-26T11:15:11+00:00WRT571SMYW00 02 – LINER PARTS ProductsPositionProduct1CABINET (NOT A SERVICEABLE PART)2WP2264462 Whirlpool Refrigerator Grommet3WP2254360 Whirlpool Refrigerator Gasket4WPW10392194-includeCORE Whirlpool WPW10392194 Refrigerator Electronic Control Board + Core5WPW10336519-includeCORE Whirlpool WPW10336519 Refrigerator Electronic Control Board + Core6ASSEMBLY, TOWER CONNECTION7W10292528 Whirlpool Refrigerator Wire Harness84387478 Whirlpool Refrigerator Light Socket9FASCIA, CONTROL10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor11WP2163777 Whirlpool Refrigerator Fan Blade12W10316942 Whirlpool Refrigerator Control Box14LENS, FASCIA15WP488163 Whirlpool Refrigerator Screw16COVER, EVAPORATOR17W10887190 Whirlpool Refrigerator Light Bulb19W11384469 Whirlpool Door Switch20WPW10283809 Whirlpool Refrigerator Wire Harness21WPW10305175 Whirlpool Refrigerator Cover23TOWER, AIR24WPW10330850 Whirlpool Refrigerator Grille25WPW10348614 Whirlpool Refrigerator Cover26OVERLAY28W10311524 Whirlpool FreshFlow Refrigerator Air Filter29W10850162 Whirlpool Refrigerator Orifice33WP489478 Whirlpool Refrigerator Screw352254454 Whirlpool Refrigerator Bracket36WP2210509 Whirlpool Refrigerator Tub Valve
