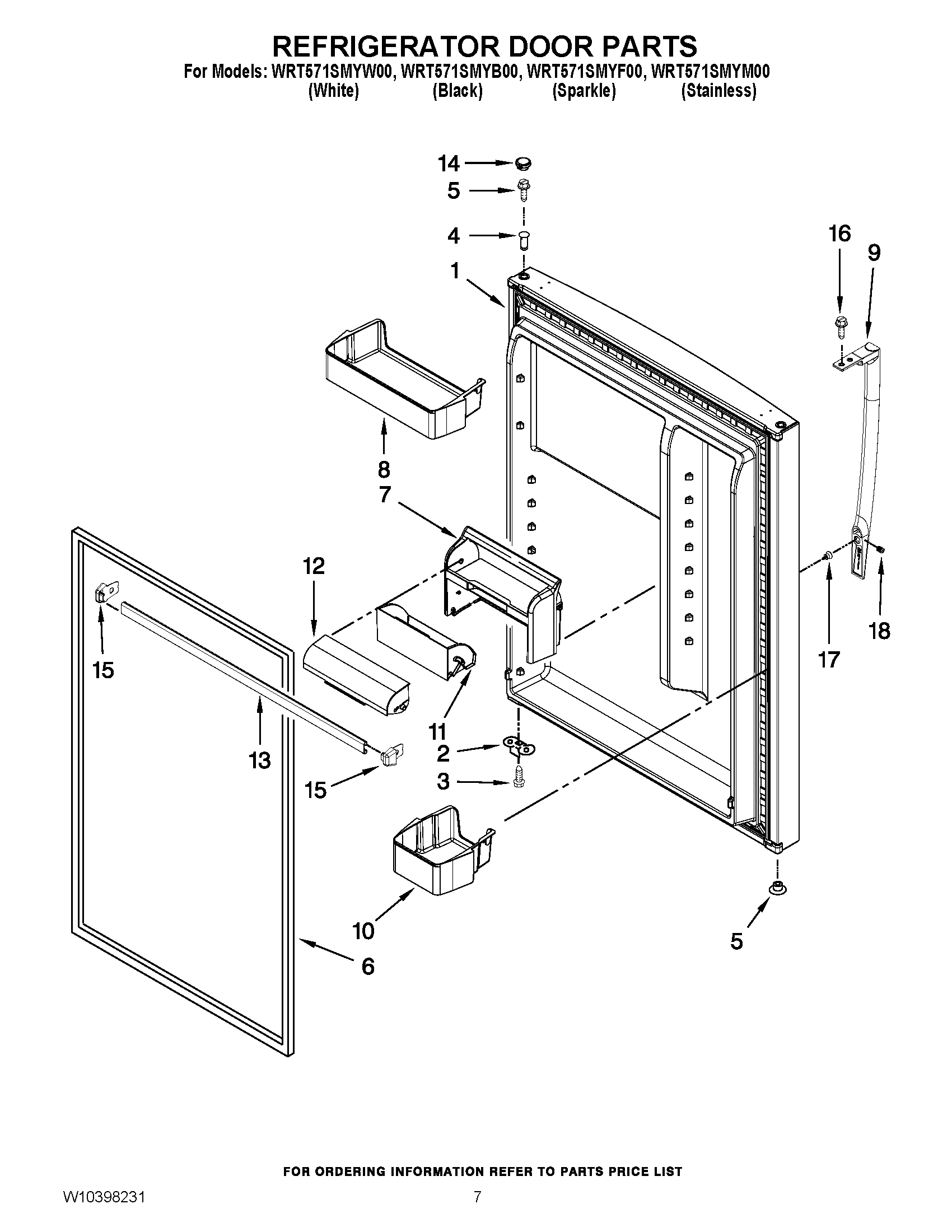

WRT571SMYW00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (WHITE)
1	LW10354005 Whirlpool Refrigerator Door FIP Silver
1	LW10353892 Whirlpool Refrigerator DOR-FIP SS
1	LW10353880 Whirlpool Refrigerator Black Foam In Place Door
2	W11745278 Whirlpool Bracket
3	WP681249 Whirlpool Screw Assembly
4	W11189115 Whirlpool Refrigerator Thimble
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5	WP2212651 Whirlpool Refrigerator Button Plug
5	PLUG, HINGE SLEEVE (GREY)
6	2159061 Whirlpool Refrigerator Door Gasket
6	W10249195 Whirlpool Refrigerator Door Gasket
6	2177311 Whirlpool Refrigerator Magnetic Door Gasket
7	HOUSING, COMPARTMENT
8	WPW10308868 Whirlpool Refrigerator Door Bin
9	WPW10646617 Whirlpool Refrigerator Handle
9	WPW10498430 Whirlpool Refrigerator Handle
9	WPW10498429 Whirlpool Refrigerator Handle
10	WPW10308869 Whirlpool Door Bin
11	BIN, TILT OUT
12	WPW10308843 Whirlpool Refrigerator Door Compressor
13	WPW10469911 Whirlpool Refrigerator Door Trim
14	WP2183998 Whirlpool Refrigerator Button Plug
14	WP2151652 Whirlpool Refrigerator Button Plug
15	CAP, TRIM END (RIGHT HAND)
15	WPW10338485 Whirlpool Refrigerator End Cap
16	WP489357 Whirlpool Recessed Screw
17	WPW10170540 Whirlpool Screw
18	SCREW, SET
