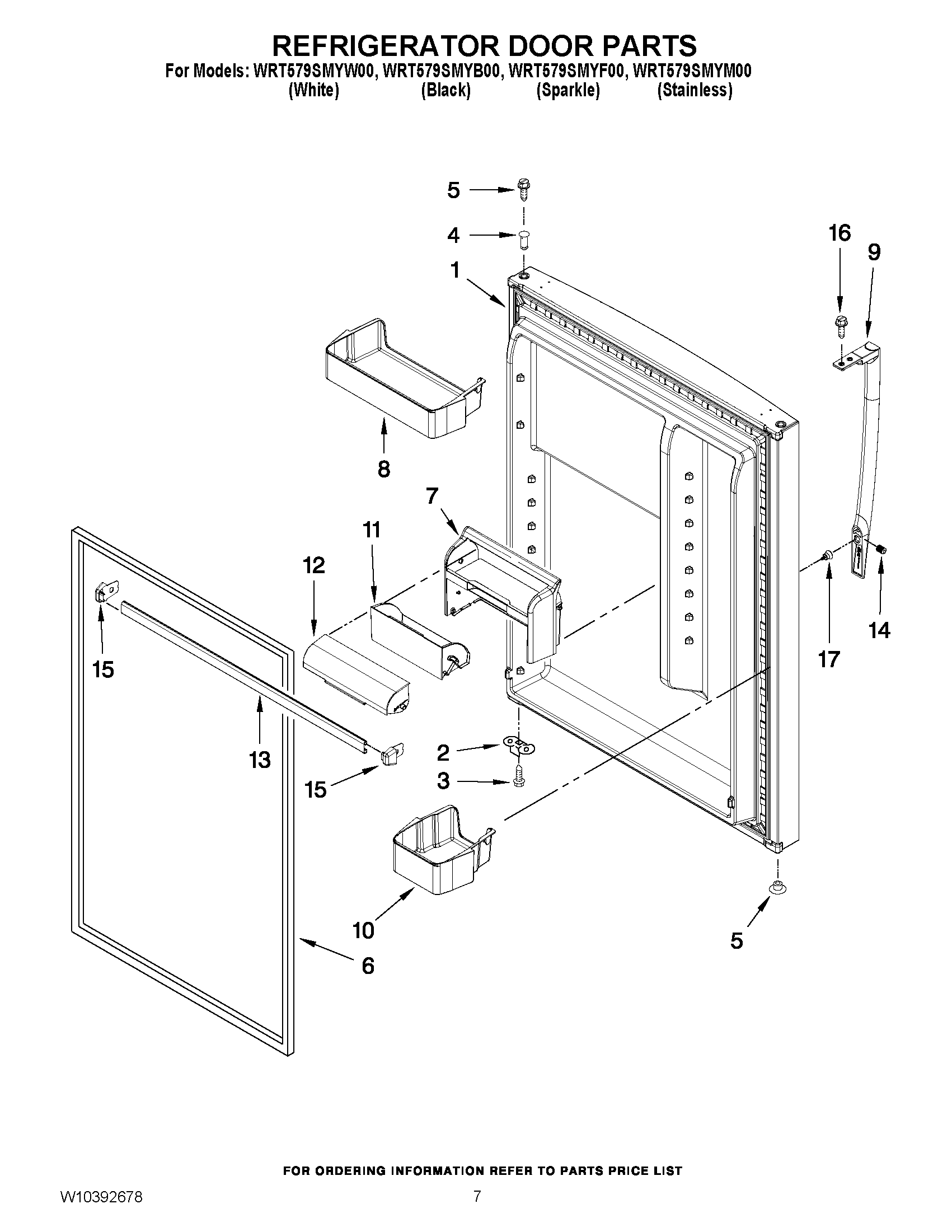

WRT579SMYB00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (SPARKLE)
1LW10353893 Whirlpool Stainless Steel FIP Door
1LW10353882 Whirlpool Foam In Place Door Blower
1LW10298864 Whirlpool Refrigerator DOR-FIP WH
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4W11189115 Whirlpool Refrigerator Thimble
5PLUG, HINGE SLEEVE (GREY)
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5WP2212651 Whirlpool Refrigerator Button Plug
62159057 Whirlpool Refrigerator Fresh Food Door Gasket
62177305 Whirlpool Refrigerator Door FIP Gasket
6W11624977 Whirlpool Refrigerator FIP Gasket
7HOUSING, COMPARTMENT
8WPW10308868 Whirlpool Refrigerator Door Bin
9WPW10498430 Whirlpool Refrigerator Handle
9WPW10498429 Whirlpool Refrigerator Handle
9WPW10646617 Whirlpool Refrigerator Handle
10WPW10308867 Whirlpool Refrigerator Cantilever Bin
11BIN, TILT OUT
12WPW10308843 Whirlpool Refrigerator Door Compressor
13TRIM, DOOR SHELF
14SCREW, SET
15CAP, TRIM END (RIGHT HAND)
15WPW10338485 Whirlpool Refrigerator End Cap
16WP489357 Whirlpool Recessed Screw
17WPW10170540 Whirlpool Screw
