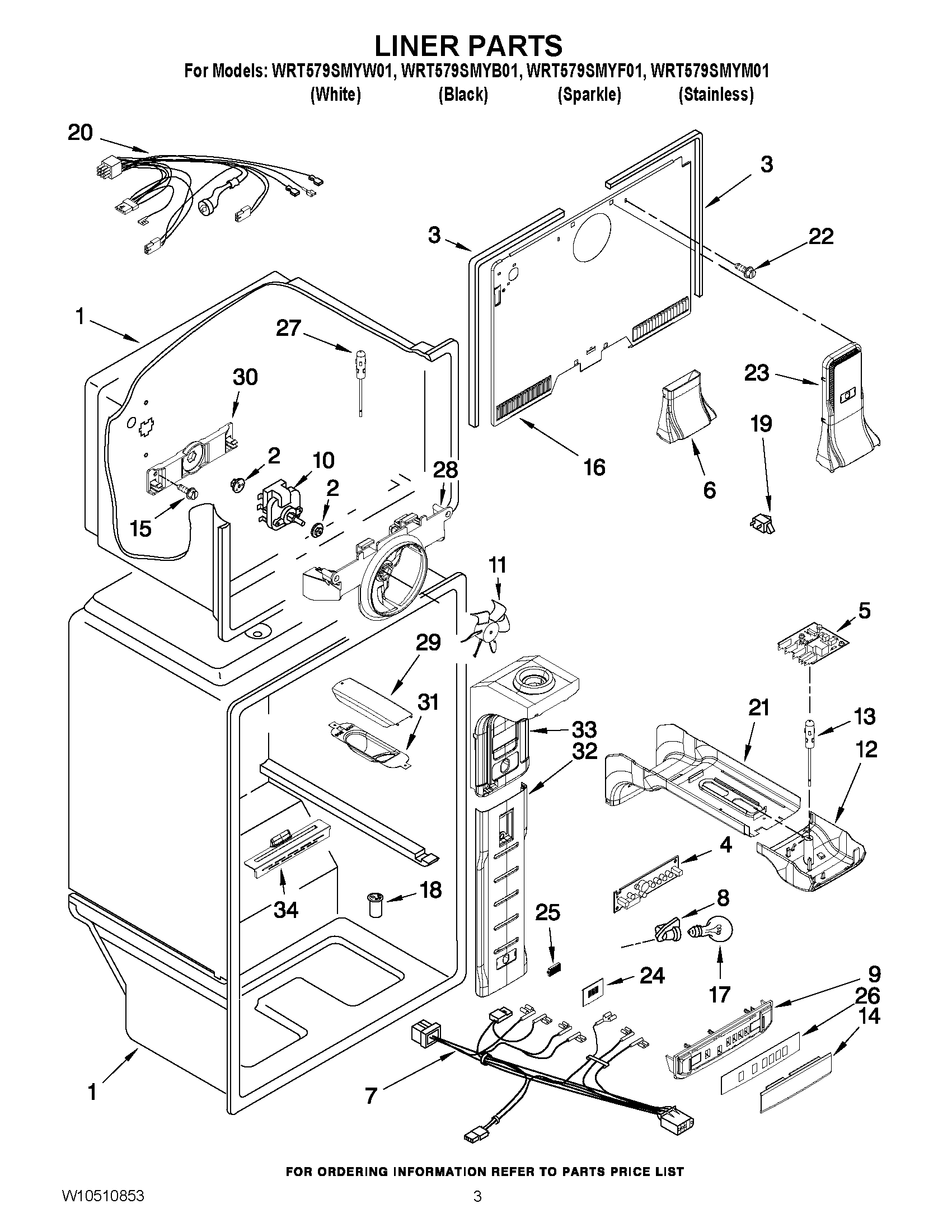

WRT579SMYB01 02 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WPW10336519-includeCORE Whirlpool WPW10336519 Refrigerator Electronic Control Board + Core
5	WPW10392184-includeCORE Whirlpool WPW10392184 Refrigerator Electronic Control Board + Core
6	ASSEMBLY, TOWER CONNECTION
7	W10292528 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	FASCIA, CONTROL
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10316942 Whirlpool Refrigerator Control Box
13	WPW10384183 Whirlpool Thermistor
14	LENS, FASCIA
15	WP488163 Whirlpool Refrigerator Screw
16	COVER, EVAPORATOR
17	W10887190 Whirlpool Refrigerator Light Bulb
18	WP2210509 Whirlpool Refrigerator Tub Valve
19	W11384469 Whirlpool Door Switch
20	WPW10283809 Whirlpool Refrigerator Wire Harness
21	WPW10305175 Whirlpool Refrigerator Cover
22	WP489478 Whirlpool Refrigerator Screw
23	TOWER, AIR
24	WPW10330850 Whirlpool Refrigerator Grille
25	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26	OVERLAY
27	THERMISTOR-REFRIGERATOR
28	W10850162 Whirlpool Refrigerator Orifice
29	WPW10348614 Whirlpool Refrigerator Cover
30	2254454 Whirlpool Refrigerator Bracket
31	W10300161 Whirlpool Refrigerator Shield
32	WPW10356895 Whirlpool Refrigerator Cover
33	WPW10395376 Whirlpool Refrigerator Air Tower
34	W10326336 Whirlpool Cover
