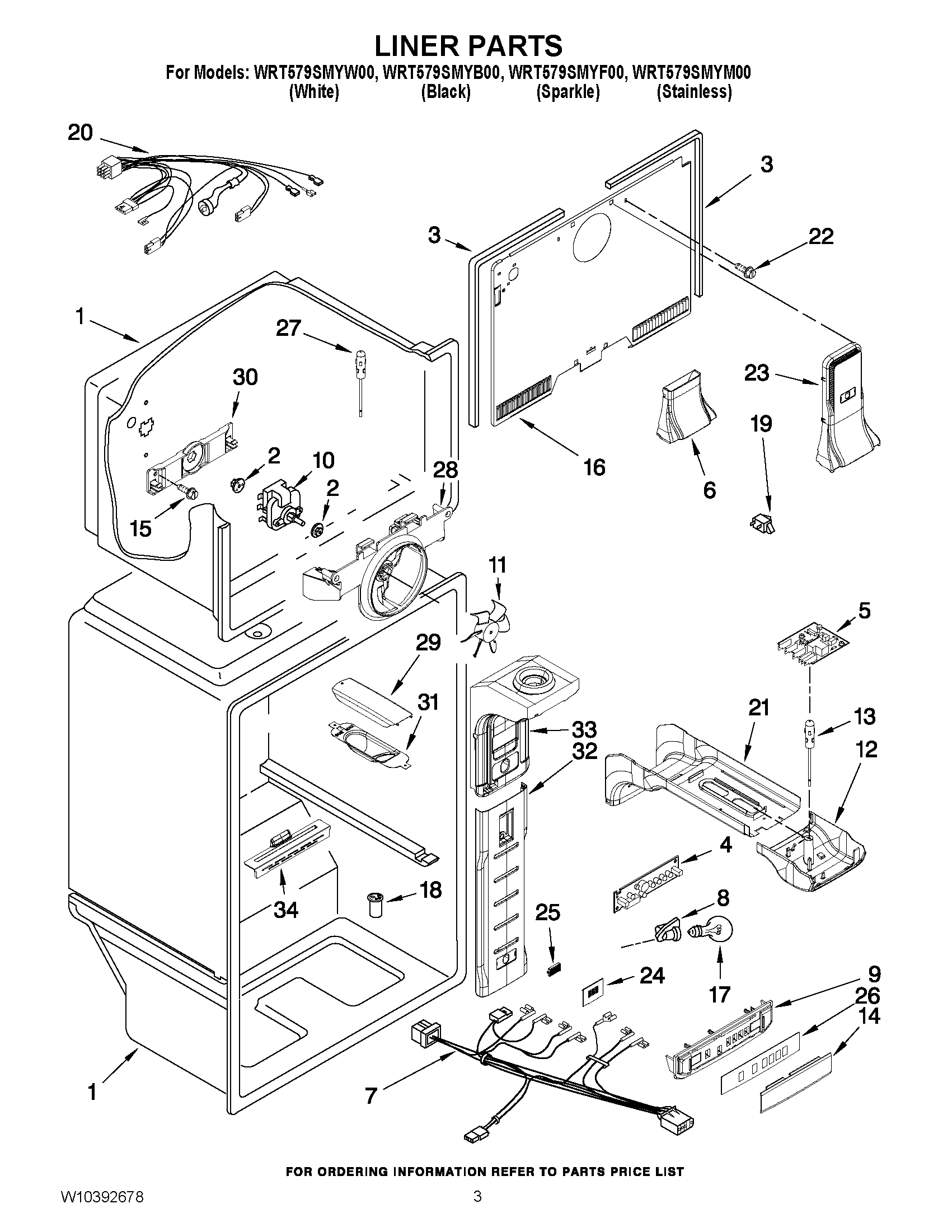

WRT579SMYM00 02 – LINER PARTS

WRT579SMYM00 02 – LINER PARTS

Written by

in

WRT579SMYM00 02 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WPW10336519-includeCORE Whirlpool WPW10336519 Refrigerator Electronic Control Board + Core
5WPW10392184-includeCORE Whirlpool WPW10392184 Refrigerator Electronic Control Board + Core
6ASSEMBLY, TOWER CONNECTION
7W10292528 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9FASCIA, CONTROL
10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12W10316942 Whirlpool Refrigerator Control Box
13WPW10384183 Whirlpool Thermistor
14LENS, FASCIA
15WP488163 Whirlpool Refrigerator Screw
16COVER, EVAPORATOR
17W10887190 Whirlpool Refrigerator Light Bulb
18WP2210509 Whirlpool Refrigerator Tub Valve
19W11384469 Whirlpool Door Switch
20WPW10283809 Whirlpool Refrigerator Wire Harness
21WPW10305175 Whirlpool Refrigerator Cover
22WP489478 Whirlpool Refrigerator Screw
23TOWER, AIR
24WPW10330850 Whirlpool Refrigerator Grille
25W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26OVERLAY
27THERMISTOR-REFRIGERATOR
28W10850162 Whirlpool Refrigerator Orifice
29WPW10348614 Whirlpool Refrigerator Cover
302254454 Whirlpool Refrigerator Bracket
31W10300161 Whirlpool Refrigerator Shield
32WPW10356895 Whirlpool Refrigerator Cover
33WPW10395376 Whirlpool Refrigerator Air Tower
34W10326336 Whirlpool Cover
