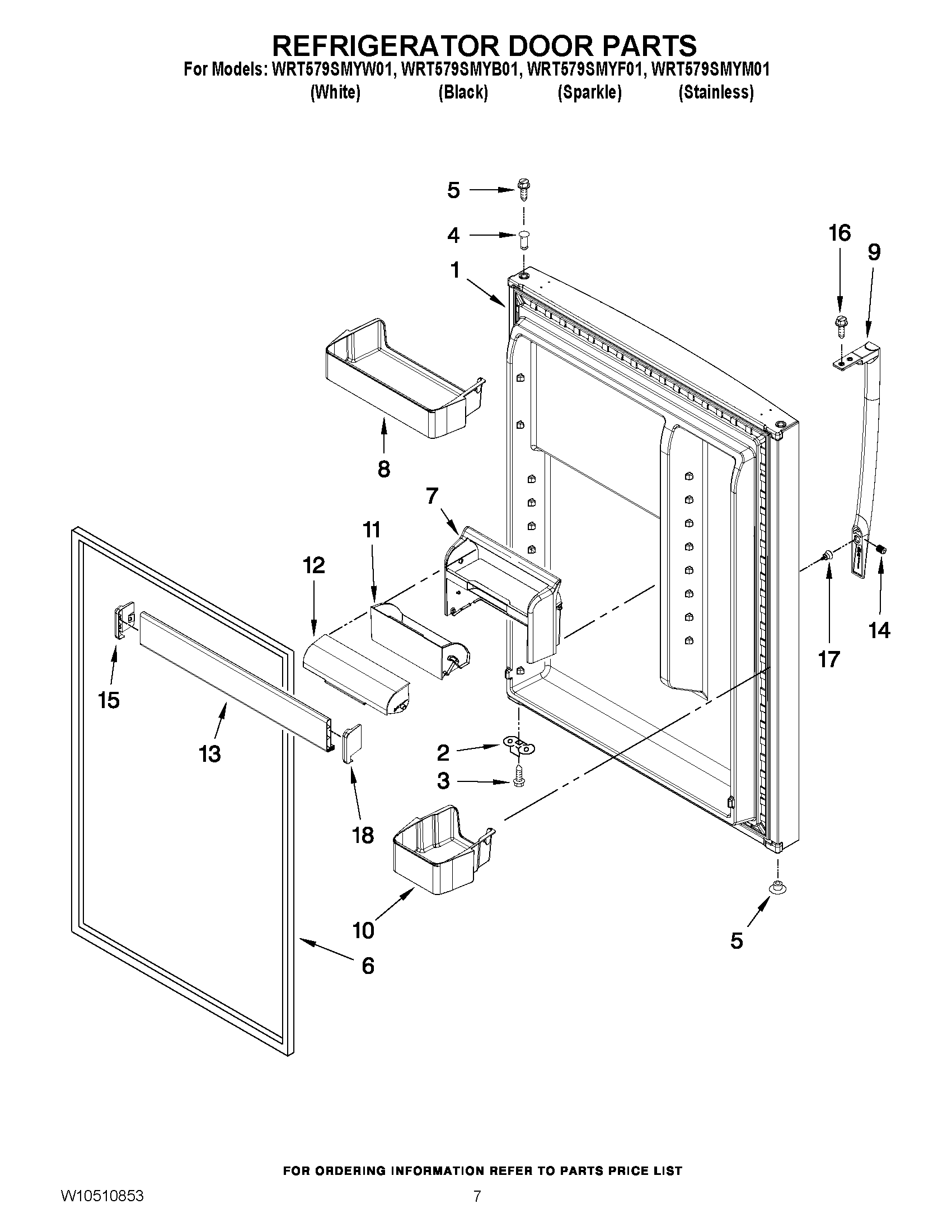

WRT579SMYM01 05 – REFRIGERATOR DOOR PARTSadmin2025-04-26T11:12:59+00:00WRT579SMYM01 05 – REFRIGERATOR DOOR PARTS ProductsPositionProduct1REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (SPARKLE)1LW10353893 Whirlpool Stainless Steel FIP Door1LW10353882 Whirlpool Foam In Place Door Blower1LW10298864 Whirlpool Refrigerator DOR-FIP WH2W11745278 Whirlpool Bracket3WP681249 Whirlpool Screw Assembly4W11189115 Whirlpool Refrigerator Thimble5PLUG, HINGE SLEEVE (GREY)5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug5WP2212651 Whirlpool Refrigerator Button Plug62159057 Whirlpool Refrigerator Fresh Food Door Gasket62177305 Whirlpool Refrigerator Door FIP Gasket6W11624977 Whirlpool Refrigerator FIP Gasket7HOUSING, COMPARTMENT8WPW10308868 Whirlpool Refrigerator Door Bin9WPW10498430 Whirlpool Refrigerator Handle9WPW10498429 Whirlpool Refrigerator Handle9WPW10646617 Whirlpool Refrigerator Handle10WPW10308867 Whirlpool Refrigerator Cantilever Bin11BIN, TILT OUT12WPW10308843 Whirlpool Refrigerator Door Compressor13TRIM, DOOR SHELF14SCREW, SET15WPW10338485 Whirlpool Refrigerator End Cap16WP489357 Whirlpool Recessed Screw17WPW10170540 Whirlpool Screw18CAP, TRIM END (RIGHT HAND)
