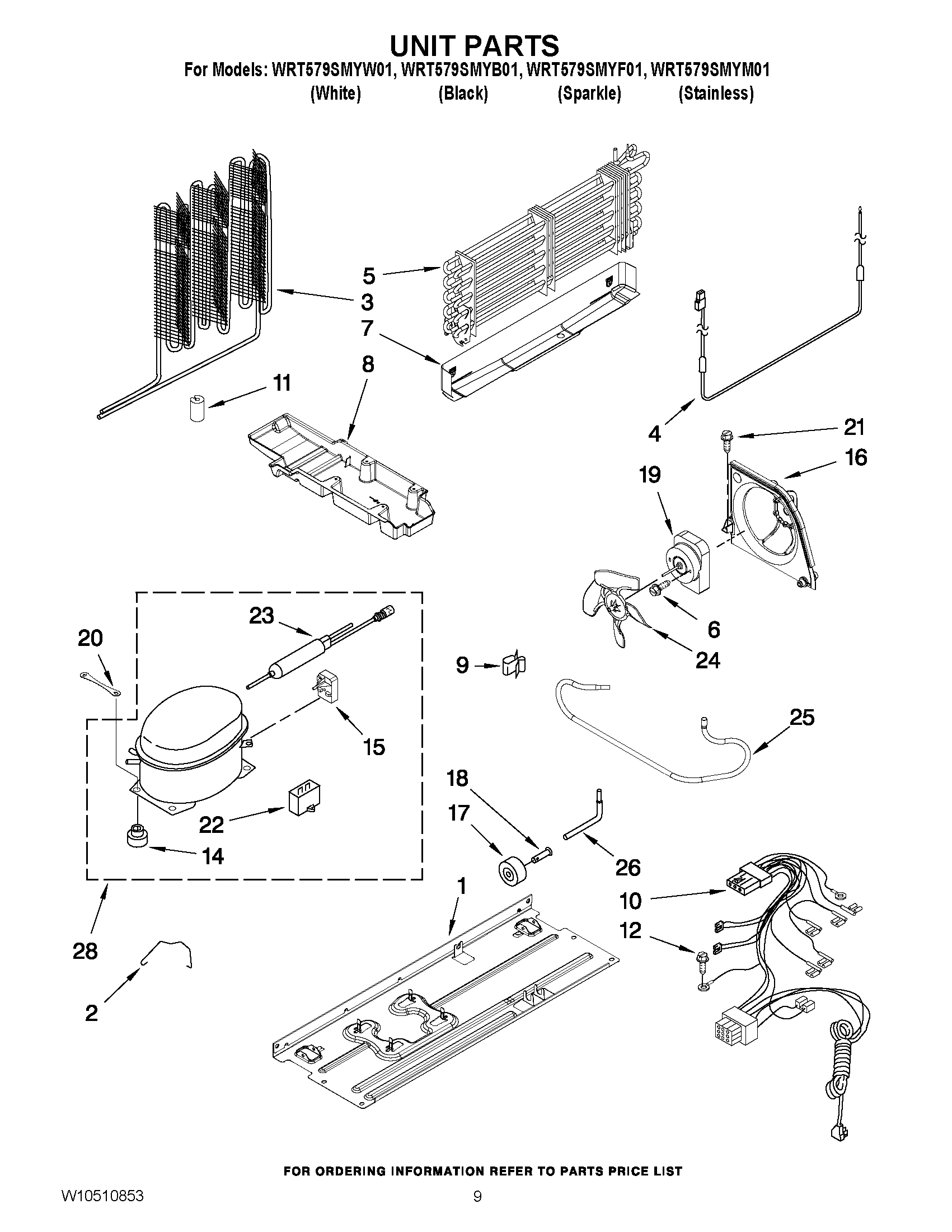

WRT579SMYM01 06 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
1	W10300116 Whirlpool Refrigerator Base Plate
2	W11661170 Whirlpool Clip
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
7	WPW10314195 Whirlpool Refrigerator Shield
8	W10890667 Whirlpool Refrigerator Drip Pan
9	W10812038 Whirlpool Refrigerator Clip
10	WIRE ASSY. UNIT
11	W10852725 Whirlpool Refrigerator Grommet
12	WP489128 Whirlpool Refrigerator Screw
14	WPW10169124 Whirlpool Refrigerator Grommet
15	START-DEV
16	WP2315541 Whirlpool Refrigerator Air Baffle
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	WP2188874 Whirlpool Refrigerator Condenser Motor
20	W10236396 Whirlpool Refrigerator Strap
21	W11501418 Whirlpool Refrigerator Screw
22	WPW10662129 Whirlpool Refrigerator Run Capacitor
23	WPW10143759 Whirlpool Dryer Filter
24	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
25	TUBE, SUCTION
26	W11676464 Whirlpool Tube
28	WPW10507886 Whirlpool Refrigerator Compressor
