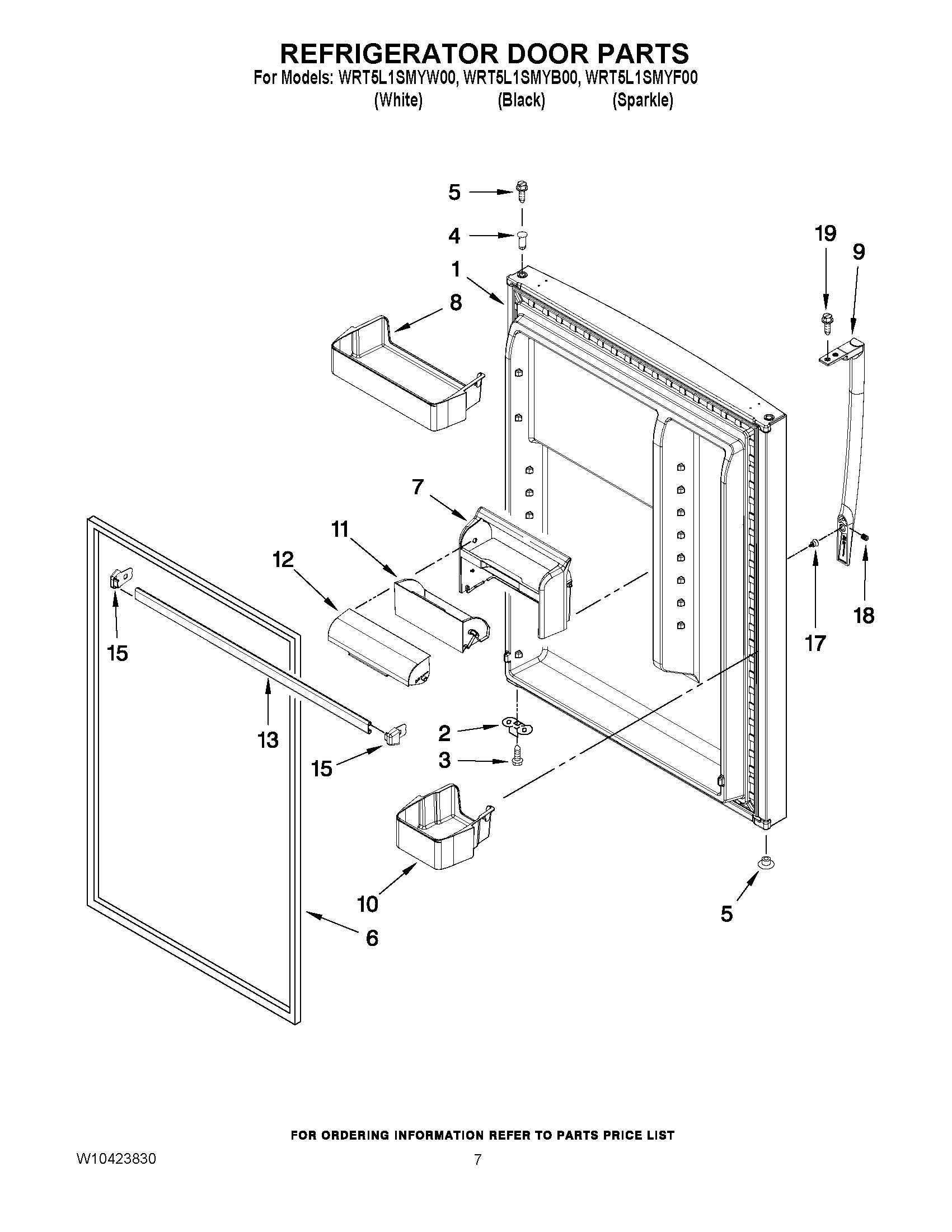

WRT5L1SMYB00 05 – REFRIGERATOR DOOR PARTS

WRT5L1SMYB00 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRT5L1SMYB00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (WHITE)
1LW10354005 Whirlpool Refrigerator Door FIP Silver
1LW10353880 Whirlpool Refrigerator Black Foam In Place Door
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4W11189115 Whirlpool Refrigerator Thimble
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5WP2212651 Whirlpool Refrigerator Button Plug
5PLUG, HINGE SLEEVE (GREY)
6W10249195 Whirlpool Refrigerator Door Gasket
62177311 Whirlpool Refrigerator Magnetic Door Gasket
62159061 Whirlpool Refrigerator Door Gasket
7HOUSING, COMPARTMENT
8WPW10308868 Whirlpool Refrigerator Door Bin
9WPW10498430 Whirlpool Refrigerator Handle
9WPW10646617 Whirlpool Refrigerator Handle
9WPW10498429 Whirlpool Refrigerator Handle
10WPW10308869 Whirlpool Door Bin
11BIN, TILT OUT
12WPW10308843 Whirlpool Refrigerator Door Compressor
13WPW10469911 Whirlpool Refrigerator Door Trim
15WPW10338485 Whirlpool Refrigerator End Cap
15CAP, TRIM END (RIGHT HAND)
17WPW10170540 Whirlpool Screw
18SCREW, SET
198534058 Whirlpool Refrigerator Screw
