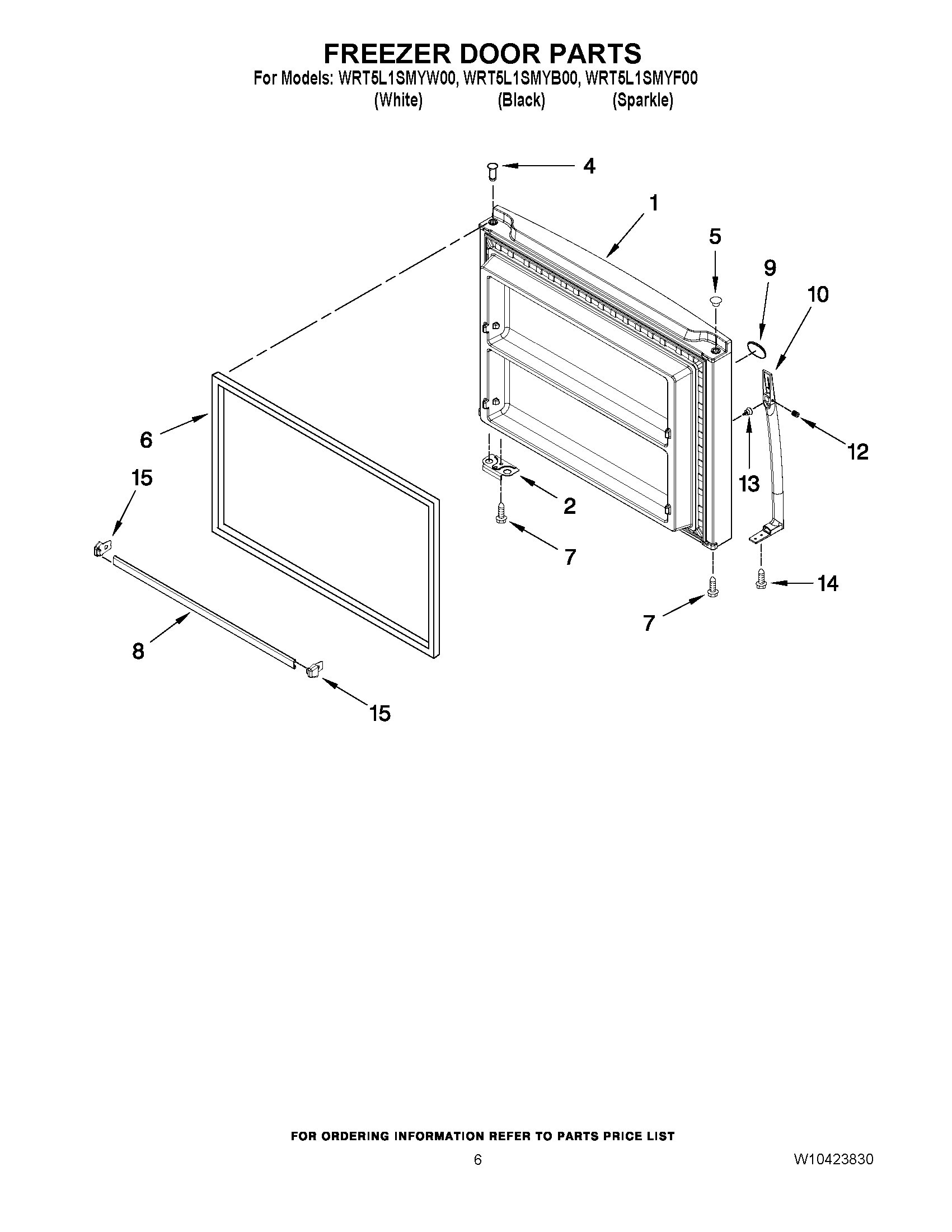

WRT5L1SMYF00 04 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (BLACK)
1	LW10353323 Whirlpool Refrigerator Door Service Kit
1	FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (WHITE)
2	W11745278 Whirlpool Bracket
4	W11189115 Whirlpool Refrigerator Thimble
5	PLUG, HINGE SLEEVE (GREY)
5	WP2212651 Whirlpool Refrigerator Button Plug
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6	WHITE DOOR GASKET-FIP
6	2177310 Whirlpool Refrigerator Door Gasket
6	W10249196 Whirlpool Refrigerator Gasket FIP
7	WP681249 Whirlpool Screw Assembly
8	WPW10469912 Whirlpool Refrigerator Door Trim
9	WPW10393264 Whirlpool Refrigerator Nameplate
9	W11178521 Whirlpool Dishwasher Nameplate
10	WPW10498430 Whirlpool Refrigerator Handle
10	WPW10498429 Whirlpool Refrigerator Handle
10	WPW10646617 Whirlpool Refrigerator Handle
12	SCREW, SET
13	8534058 Whirlpool Refrigerator Screw
14	WPW10170540 Whirlpool Screw
15	CAP, TRIM END (RIGHT HAND)
15	WPW10338485 Whirlpool Refrigerator End Cap
