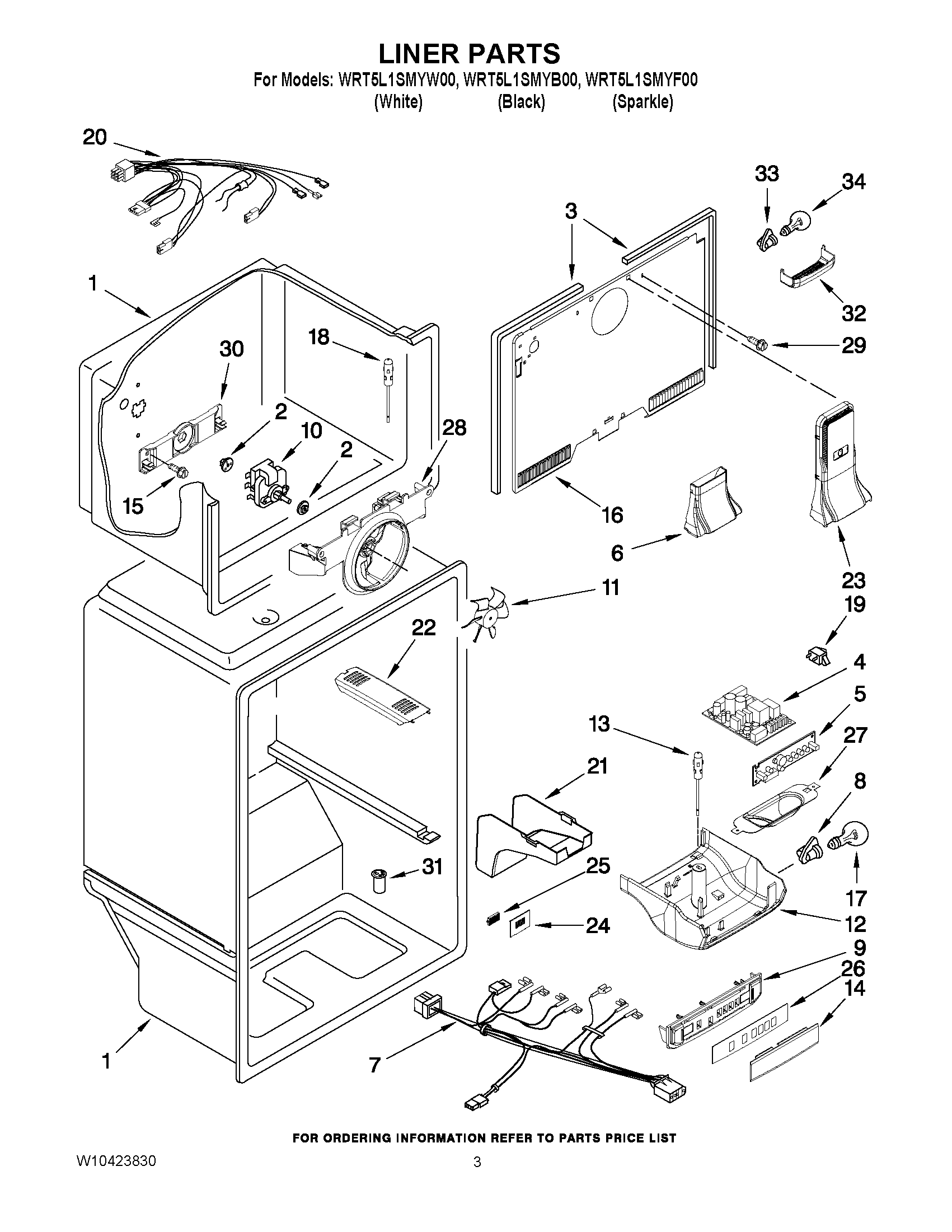

WRT5L1SMYW00 02 – LINER PARTS

WRT5L1SMYW00 02 – LINER PARTS

Written by

in

WRT5L1SMYW00 02 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WPW10392194-includeCORE Whirlpool WPW10392194 Refrigerator Electronic Control Board + Core
5WPW10336519-includeCORE Whirlpool WPW10336519 Refrigerator Electronic Control Board + Core
6ASSEMBLY, TOWER CONNECTION
7W10292528 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9FASCIA, CONTROL
10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12W10316942 Whirlpool Refrigerator Control Box
13WPW10384183 Whirlpool Thermistor
14LENS, FASCIA
15WP488163 Whirlpool Refrigerator Screw
16COVER, EVAPORATOR
17W10887190 Whirlpool Refrigerator Light Bulb
18THERMISTOR-REFRIGERATOR
19W11384469 Whirlpool Door Switch
20WIRE ASSEMBLY, FRZR. COMPARTMENT
21WPW10305175 Whirlpool Refrigerator Cover
22WPW10348614 Whirlpool Refrigerator Cover
23TOWER, AIR
24WPW10330850 Whirlpool Refrigerator Grille
25W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26OVERLAY
27W10300161 Whirlpool Refrigerator Shield
28BRACKET, FAN MOTOR
29WP489478 Whirlpool Refrigerator Screw
302254454 Whirlpool Refrigerator Bracket
31WP2210509 Whirlpool Refrigerator Tub Valve
32WPW10313918 Whirlpool Refrigerator Light Lens
33WPW10191429 Whirlpool Refrigerator Socket
34WPW10406725 Whirlpool Refrigerator Light Bulb
