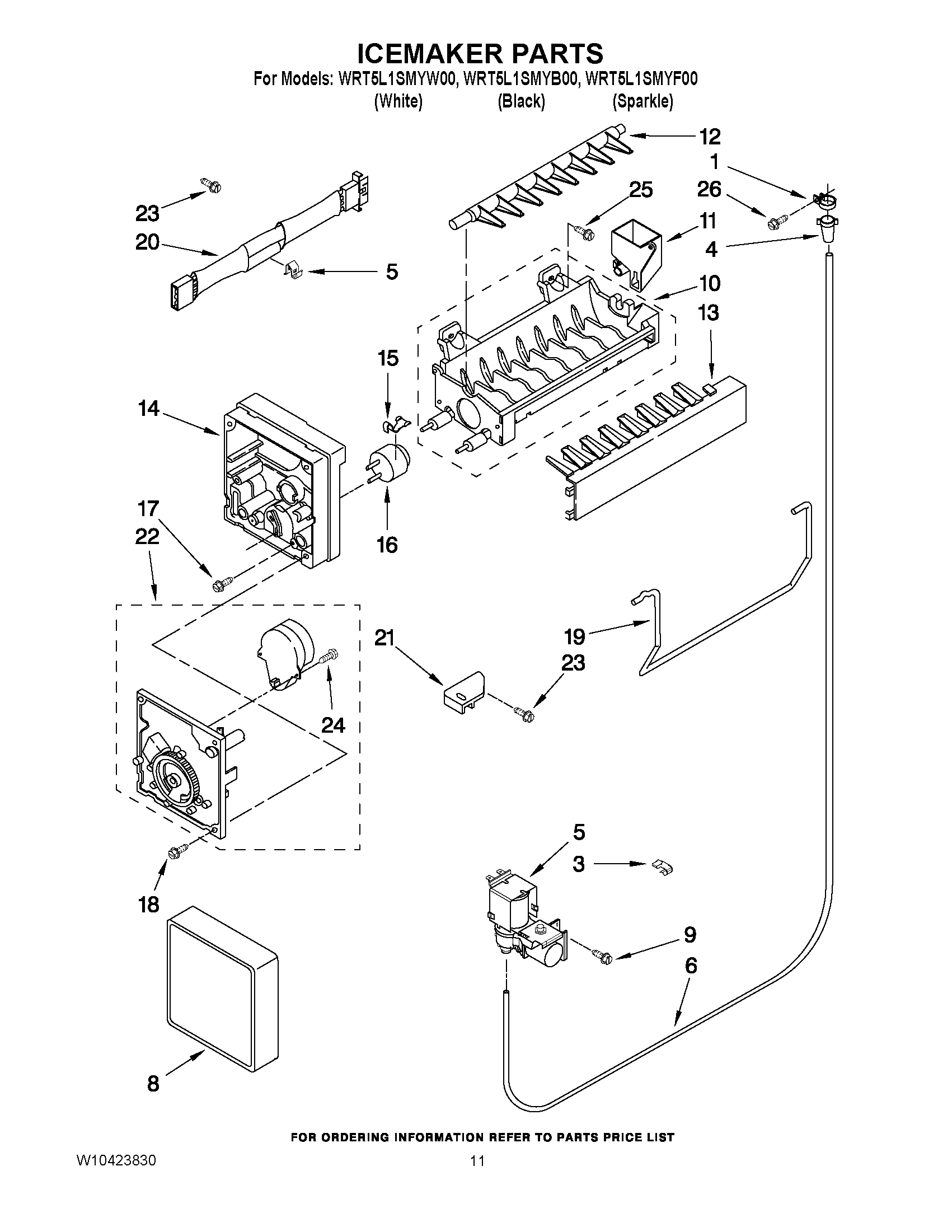

WRT5L1SMYW00 07 – ICEMAKER PARTSadmin2025-04-26T11:16:29+00:00WRT5L1SMYW00 07 – ICEMAKER PARTS ProductsPositionProduct1WP488878 Whirlpool Refrigerator Tube Clamp32210495 Whirlpool Refrigerator Clip44387491 Whirlpool Refrigerator Insert5WPW10279909 Whirlpool Refrigerator Inlet Valve6W10823511 Whirlpool Refrigerator Water Tube8COVER, IM MODULE9WP489442 Whirlpool Refrigerator Screw10WPW10190929 Whirlpool Refrigerator Ice Maker Mold11W10122561 Whirlpool Refrigerator Cup Fill12WP627843 Whirlpool Refrigerator Ejector Arm13WPW10122563 Whirlpool Refrigerator Stripper Arm14WP2195914 Whirlpool Refrigerator Ice Maker Housing15WP2315522 Whirlpool Refrigerator Clip16WP627985 Whirlpool Icemaker Cycling Thermostat178533917 Whirlpool Refrigerator Screw18WP681249 Whirlpool Screw Assembly19WP627792 Whirlpool Refrigerator Shut Off Arm20WP2187464 Whirlpool Refrigerator Wire Harness21W11500948 Whirlpool Refrigerator Bracket228201515 Whirlpool Refrigerator Motor and Gear Module Kit23WP489478 Whirlpool Refrigerator Screw24489136 Whirlpool Refrigerator Screw25WP488163 Whirlpool Refrigerator Screw26WP488787 Whirlpool Refrigerator Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly
