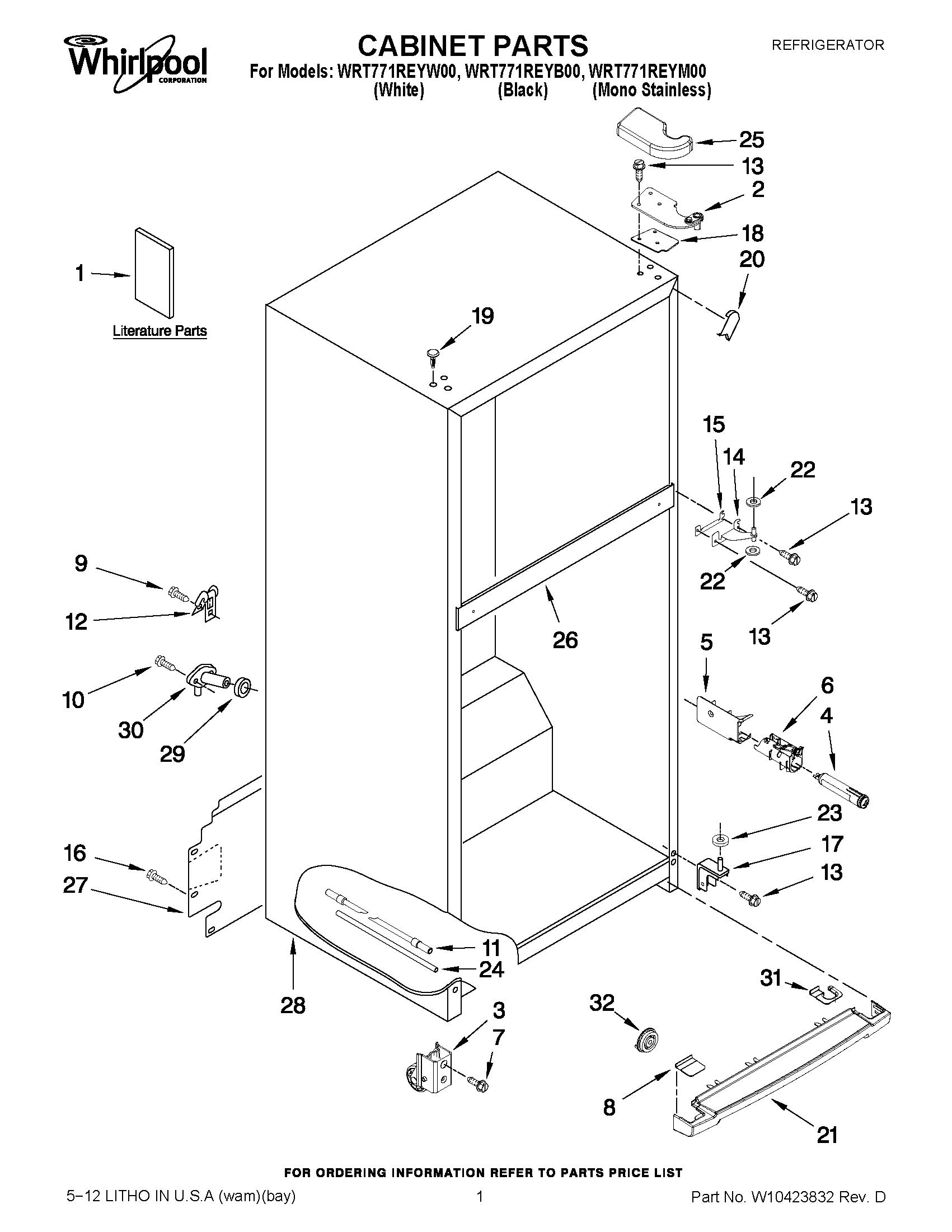

WRT771REYB00 01 – CABINET PARTS

WRT771REYB00 01 – CABINET PARTS

Written by

in

WRT771REYB00 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1Service & Wiring Sheet
1USE & CARE GUIDE
1Modular Icemaker Service Sheet
2WPW10300065 Whirlpool Refrigerator Door Hinge
3W10849386 Whirlpool Refrigerator CAB Roller
4EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5WPW10306392 Whirlpool Refrigerator Filter Cover
6W10844267 Whirlpool Refrigerator Housing
7BOLT
8WPW10339257 Whirlpool Refrigerator Toe Grille Cover
8WPW10353932 Whirlpool Refrigerator Grille Endcap
8W10353930 Whirlpool Refrigerator Grill End Cap
9WP489442 Whirlpool Refrigerator Screw
10WP489478 Whirlpool Refrigerator Screw
11TUBE, FILTER INLET
12549193 Whirlpool Refrigerator Power Clamp
13WP489497 Whirlpool Screw
14WP2254618 Whirlpool Center Door Hinge
15WP2183852 Whirlpool Refrigerator Shim
16WP489464 Whirlpool Refrigerator Screw
17WP2254473 Whirlpool Refrigerator Door Hinge
18W10883637 Whirlpool Refrigerator Hinge Shim
19WP2183998 Whirlpool Refrigerator Button Plug
19WP2151652 Whirlpool Refrigerator Button Plug
19WPW10520307 Whirlpool Refrigerator Replacement Plug Button
20W10851579 Whirlpool Refrigerator Filler
20WPW10283959 Whirlpool Refrigerator Filler
20W11252732 Whirlpool Refrigerator Filler
21WPW10353941 Whirlpool Refrigerator Grille
21WPW10300129 Whirlpool Refrigerator Grille
21WPW10353939 Whirlpool Refrigerator Grille
22WP489467 Whirlpool Hinge Shim
23WP487576 Whirlpool Washer
24WPW10306394 Whirlpool Refrigerator Water Tube
25W10353945A Whirlpool Refrigerator Cover
25W10353947A Whirlpool Refrigerator Cover
25W10331560A Whirlpool Refrigerator Cover
27WPW10384414 Whirlpool Refrigerator Unit Cover
28CABINET (NOT A SERVICEABLE PART)
29WP1106508 Whirlpool Refrigerator Gasket
30W11292468 Whirlpool Refrigerator Fitting
31ENDCAP, GRILLE HINGE (WHITE)
31ENDCAP, GRILLE HINGE (BLACK)
31ENDCAP, GRILLE HINGE (MIDNIGHT GREY)
32W10331226 Whirlpool Refrigerator Clip
