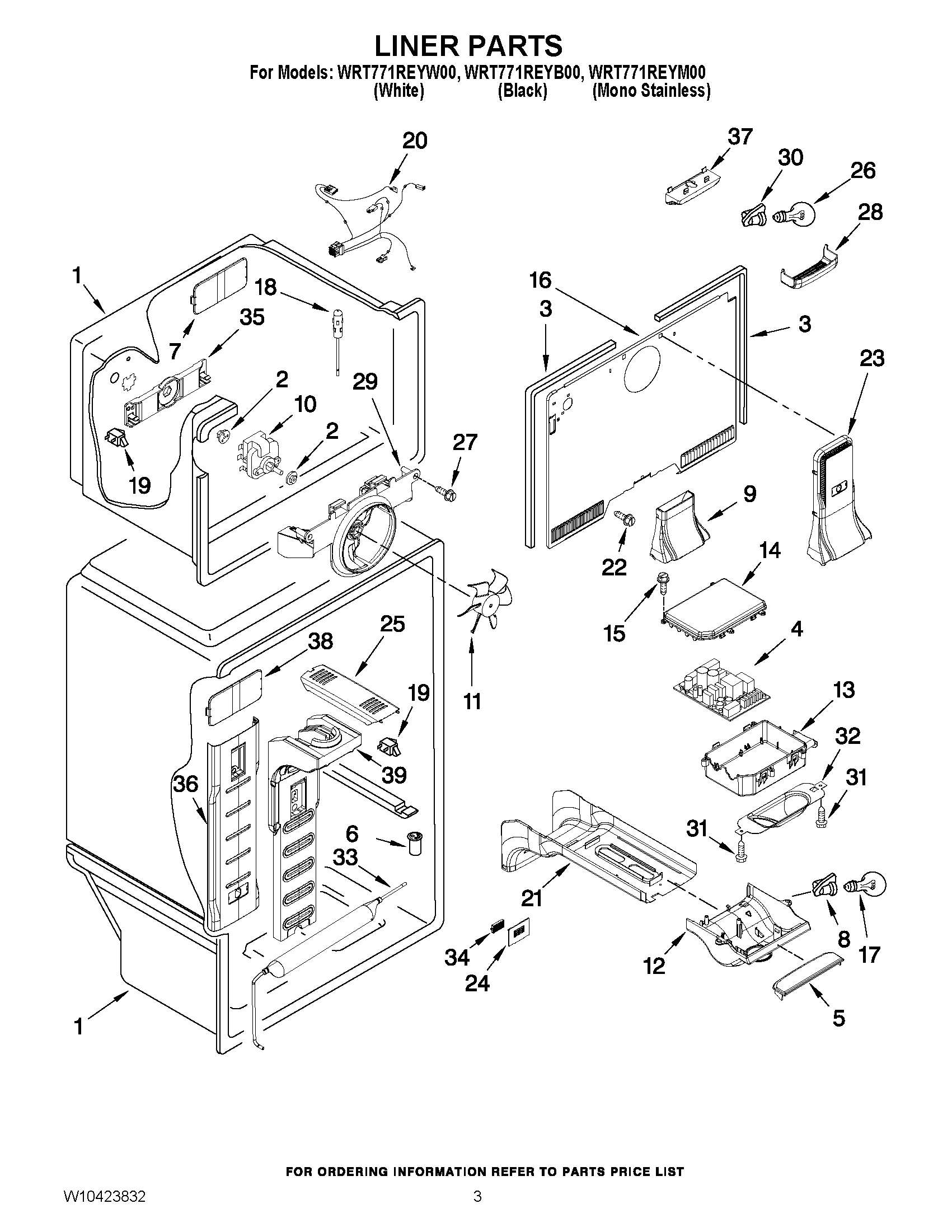

WRT771REYB00 02 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	W11034365-includeCORE Whirlpool W11034365 Refrigerator Electronic Control Board + Core
4	W11034365 Whirlpool Refrigerator Electronic Control Board
5	FASCIA CONTROL
6	WP2210509 Whirlpool Refrigerator Tub Valve
7	SCREW CUP
8	WPW10191429 Whirlpool Refrigerator Socket
9	ASSEMBLY, TOWER CONNECTION
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10316942 Whirlpool Refrigerator Control Box
13	2323186 Whirlpool Refrigerator Housing
14	W10313215 Whirlpool Refrigerator Box Cover
15	WPW10171469 Whirlpool Refrigerator Screw
16	COVER, EVAPORATOR
17	WPA3073101 Whirlpool Light Bulb
18	THERMISTOR-REFRIGERATOR
19	W11384469 Whirlpool Door Switch
20	WPW10283809 Whirlpool Refrigerator Wire Harness
21	WPW10305175 Whirlpool Refrigerator Cover
22	WPW10142283 Whirlpool Refrigerator Screw
23	TOWER, AIR
24	WPW10330850 Whirlpool Refrigerator Grille
25	LIGHT COVER, RC
26	W11518235 Whirlpool LED Light
27	WP488163 Whirlpool Refrigerator Screw
28	WPW10313918 Whirlpool Refrigerator Light Lens
29	W10850162 Whirlpool Refrigerator Orifice
30	W11661565 Whirlpool Refrigerator Socket
31	WP489174 Whirlpool Refrigerator Screw
32	2223680 Whirlpool Refrigerator Shield
33	WPW10364161 Whirlpool Refrigerator Reservoir
34	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
35	2254454 Whirlpool Refrigerator Bracket
36	WPW10356895 Whirlpool Refrigerator Cover
37	WPW10313917 Whirlpool Refrigerator Housing
38	W10336009 Whirlpool Refrigerator Cover
39	WPW10395376 Whirlpool Refrigerator Air Tower
