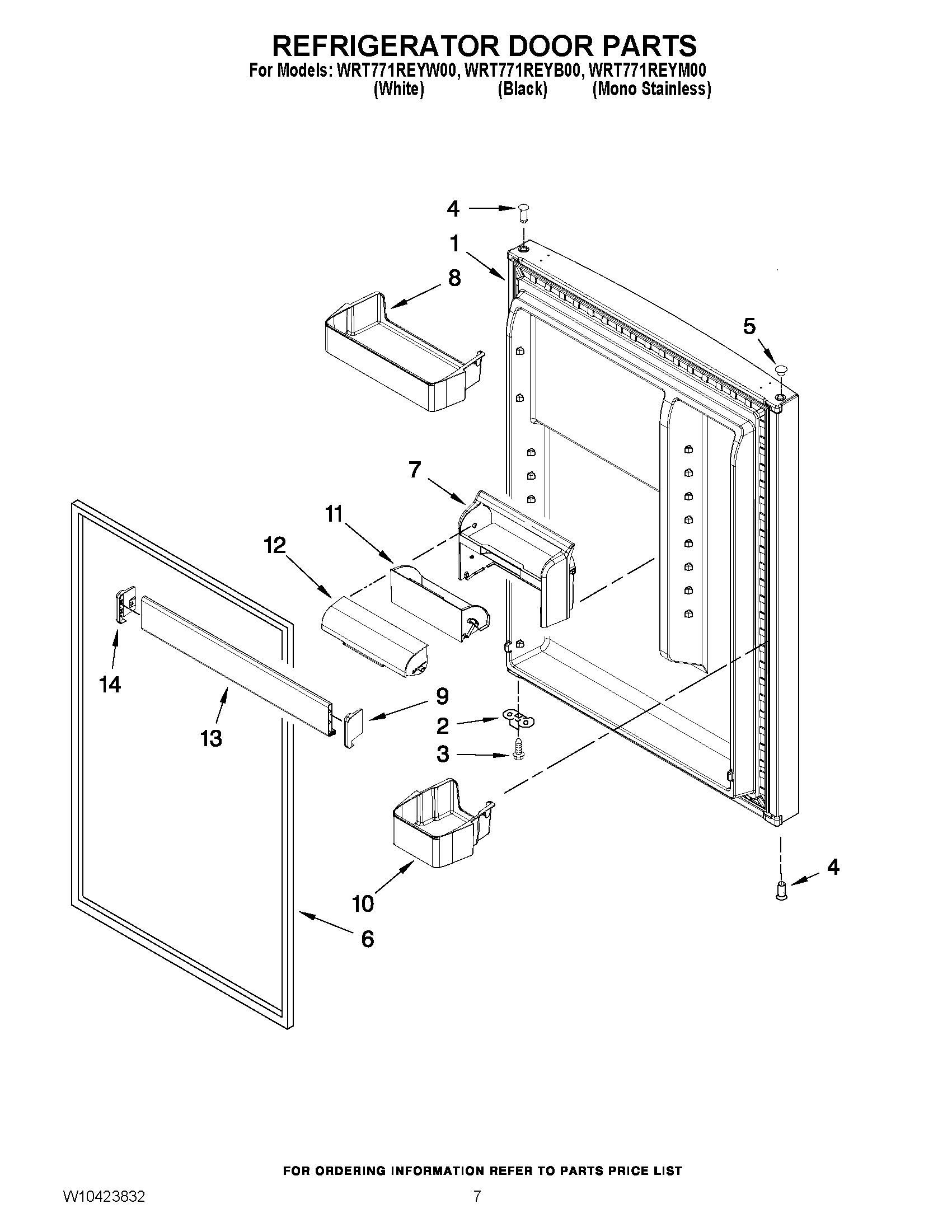

WRT771REYB00 05 – REFRIGERATOR DOOR PARTS

WRT771REYB00 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRT771REYB00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEMS 4, 5 & 6) (MONO STAINLESS)
1REFRIGERATOR DOOR (INCLUDES ITEMS 4, 5 & 6) (BLACK)
1REFRIGERATOR DOOR (INCLUDES ITEMS 4, 5 & 6) (WHITE)
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4W11189115 Whirlpool Refrigerator Thimble
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5PLUG, HINGE SLEEVE (GREY)
5WP2212651 Whirlpool Refrigerator Button Plug
6W10249195 Whirlpool Refrigerator Door Gasket
62177311 Whirlpool Refrigerator Magnetic Door Gasket
62159061 Whirlpool Refrigerator Door Gasket
7HOUSING, COMPARTMENT
8WPW10308868 Whirlpool Refrigerator Door Bin
9CAP, TRIM END (RIGHT HAND)
10WPW10308869 Whirlpool Door Bin
11BIN, TILT OUT
12WPW10308843 Whirlpool Refrigerator Door Compressor
13WPW10469911 Whirlpool Refrigerator Door Trim
14WPW10338485 Whirlpool Refrigerator End Cap
