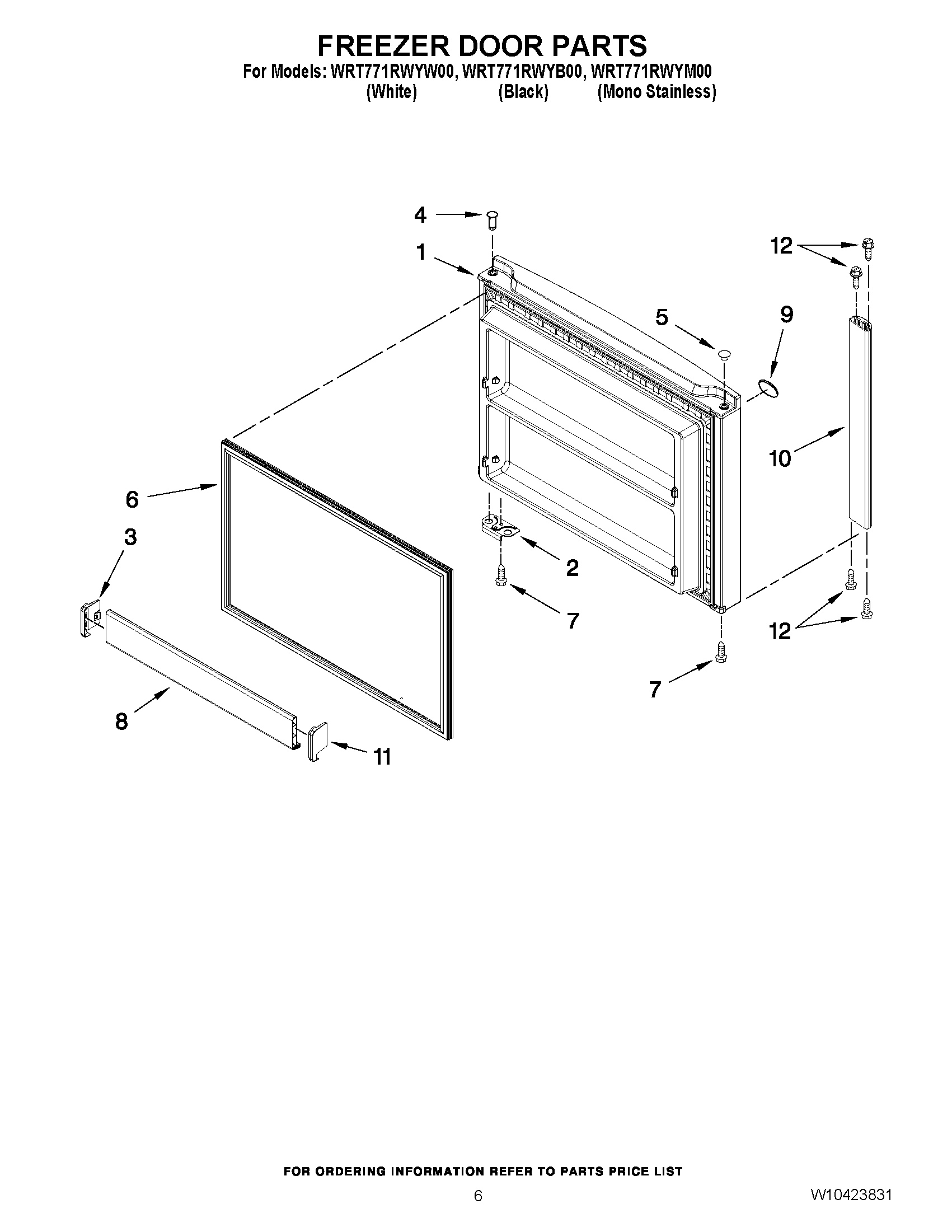

WRT771RWYM00 04 – FREEZER DOOR PARTS

WRT771RWYM00 04 – FREEZER DOOR PARTS

Written by

in

WRT771RWYM00 04 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEMS 4, 5, 6 & 10) (STAINLESS)
1FREEZER DOOR (INCLUDES ITEMS 4, 5, 6 & 10) (WHITE)
1FREEZER DOOR (INCLUDES ITEMS 4, 5, 6 & 10) (BLACK)
2W11745278 Whirlpool Bracket
3WPW10338485 Whirlpool Refrigerator End Cap
4W11189115 Whirlpool Refrigerator Thimble
5WP2212651 Whirlpool Refrigerator Button Plug
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5PLUG, HINGE SLEEVE (GREY)
6WHITE DOOR GASKET-FIP
62177310 Whirlpool Refrigerator Door Gasket
6W10249196 Whirlpool Refrigerator Gasket FIP
7WP681249 Whirlpool Screw Assembly
8WPW10469912 Whirlpool Refrigerator Door Trim
9W11178521 Whirlpool Dishwasher Nameplate
10HANDLE, EMBEDDED
10HANDLE, EMBEDDED (BLACK)
11CAP, TRIM END (RIGHT HAND)
12WP488163 Whirlpool Refrigerator Screw
