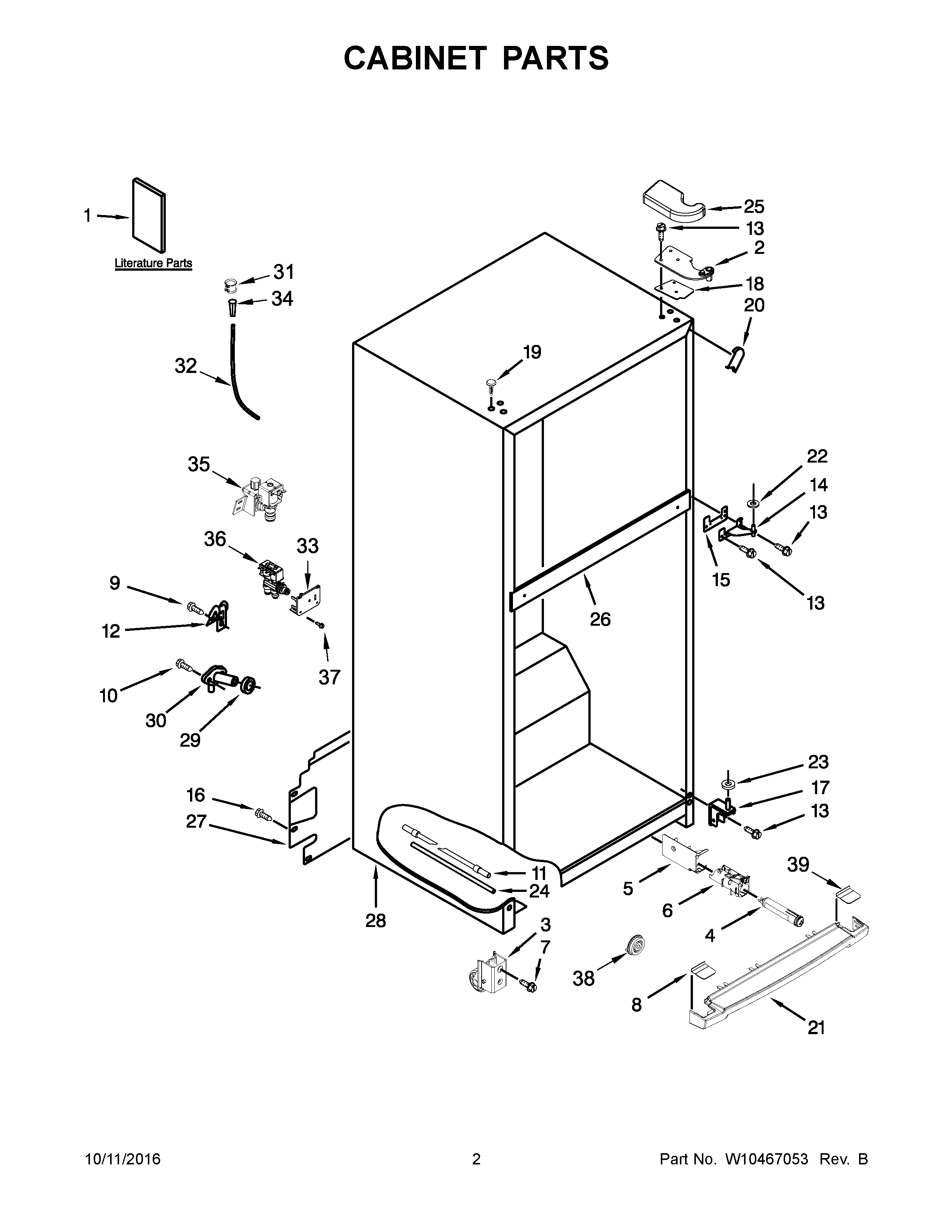

WRT771RWYM01 02 – CABINET PARTS

Products

Position	Product
1A	USE AND CARE GUIDE
1	ENERGY LABEL
1B	Modular Icemaker Service Sheet
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	W10849386 Whirlpool Refrigerator CAB Roller
4	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5	WPW10306392 Whirlpool Refrigerator Filter Cover
6	W10844267 Whirlpool Refrigerator Housing
7	BOLT
8	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
8A	W10353930 Whirlpool Refrigerator Grill End Cap
8B	WPW10353932 Whirlpool Refrigerator Grille Endcap
9	WP489442 Whirlpool Refrigerator Screw
10	WP489478 Whirlpool Refrigerator Screw
11	TUBE, FILTER INLET
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14	WP2254618 Whirlpool Center Door Hinge
15	WP2183852 Whirlpool Refrigerator Shim
16	WP488729 Whirlpool Refrigerator Door Screw
17	WP2254473 Whirlpool Refrigerator Door Hinge
18	W10883637 Whirlpool Refrigerator Hinge Shim
19A	WPW10520305 Whirlpool Refrigerator Button Plug
19	WPW10520304 Whirlpool Refrigerator Button Plug
19B	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
20B	W10851579 Whirlpool Refrigerator Filler
20A	W11252732 Whirlpool Refrigerator Filler
20	WPW10283959 Whirlpool Refrigerator Filler
21A	WPW10353939 Whirlpool Refrigerator Grille
21	WPW10300129 Whirlpool Refrigerator Grille
21B	WPW10353941 Whirlpool Refrigerator Grille
22	WP489467 Whirlpool Hinge Shim
23	WP487576 Whirlpool Washer
24	WPW10306394 Whirlpool Refrigerator Water Tube
25	W10465765 Whirlpool Refrigerator Cover
25A	W10465764 Whirlpool Refrigerator Cover
25B	W10465771 Whirlpool Refrigerator Cover
25D	W10465768 Whirlpool Hinge Cover
25E	W10465767 Whirlpool Refrigerator Cover
25C	W10465770 Whirlpool Hinge Cover
27	WPW10384414 Whirlpool Refrigerator Unit Cover
28	CABINET (NOT A SERVICEABLE PART)
29	WP1106508 Whirlpool Refrigerator Gasket
30	WPW10601149 Whirlpool Refrigerator Fitting
31	W10861184 Whirlpool Refrigerator Clamp
32	TUBE, WATER INLET
33	W10847867 Whirlpool Refrigerator Bracket
34	4387491 Whirlpool Refrigerator Insert
35	VALVE-INLT REFR
36	WPW10279866 Whirlpool Refrigerator Inlet Valve
37	WPW10141625 Whirlpool Refrigerator Screw Assembly
38	W10331226 Whirlpool Refrigerator Clip
39	W10381059 Whirlpool Refrigerator End Cap – GRL
39A	WPL W10381060
39B	WPL W10381064
