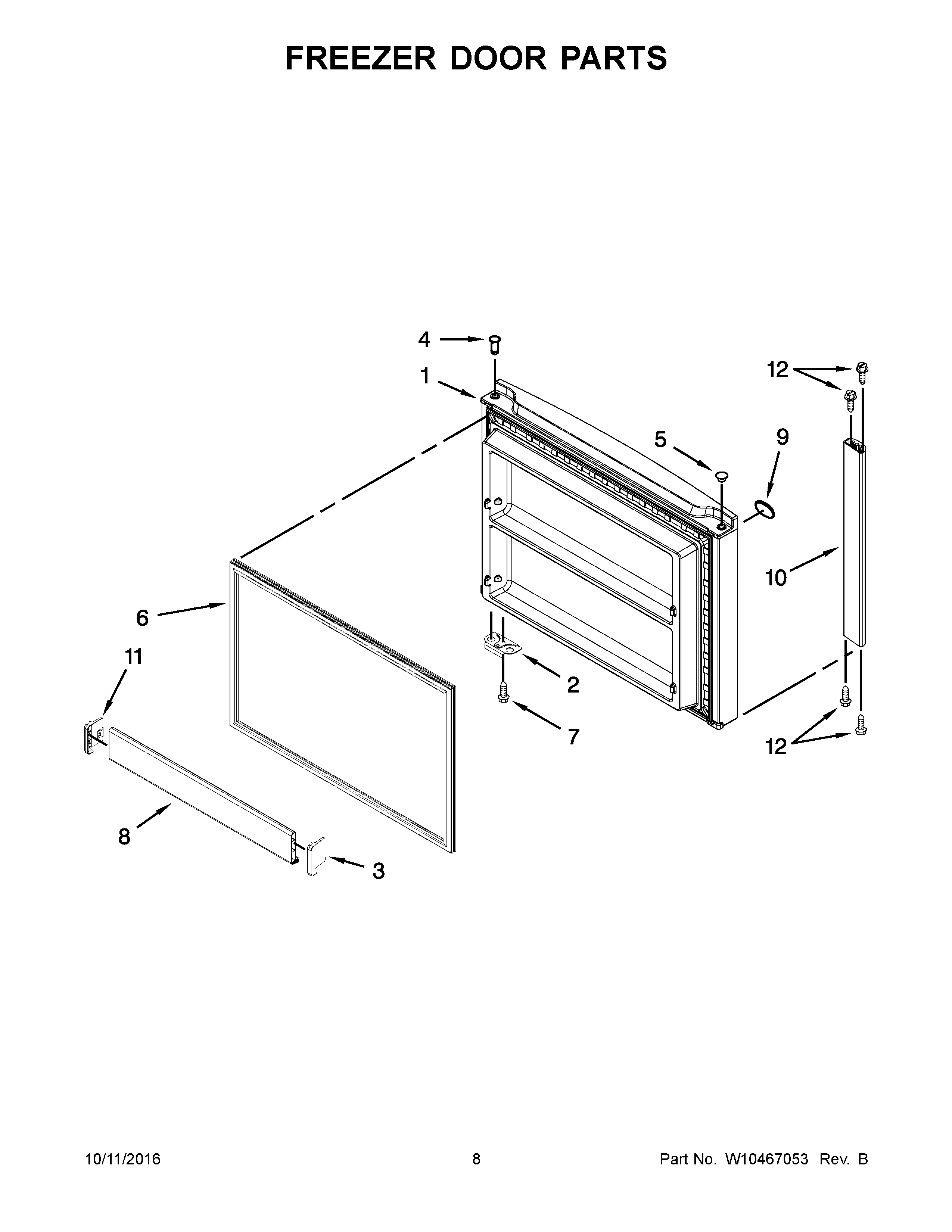

WRT771RWYM01 05 – FREEZER DOOR PARTS

Products

Position	Product
1B	FREEZER DOOR (INCLUDES ITEMS 4, 5, 6 & 10) (STAINLESS)
1	FREEZER DOOR (INCLUDES ITEMS 4, 5, 6 & 10) (WHITE)
1A	FREEZER DOOR (INCLUDES ITEMS 4, 5, 6 & 10) (BLACK)
2	W11745278 Whirlpool Bracket
3	CAP, TRIM END (RIGHT HAND)
4	WP2182181 Whirlpool Refrigerator Thimble
5A	WP2212651 Whirlpool Refrigerator Button Plug
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5B	PLUG, HINGE SLEEVE (GREY)
6	WHITE DOOR GASKET-FIP
6A	2177310 Whirlpool Refrigerator Door Gasket
6B	W10249196 Whirlpool Refrigerator Gasket FIP
7	WP681249 Whirlpool Screw Assembly
8	WPW10469912 Whirlpool Refrigerator Door Trim
9A	W11178521 Whirlpool Dishwasher Nameplate
10	HANDLE, EMBEDDED
11	WPW10338485 Whirlpool Refrigerator End Cap
12	WP488163 Whirlpool Refrigerator Screw
