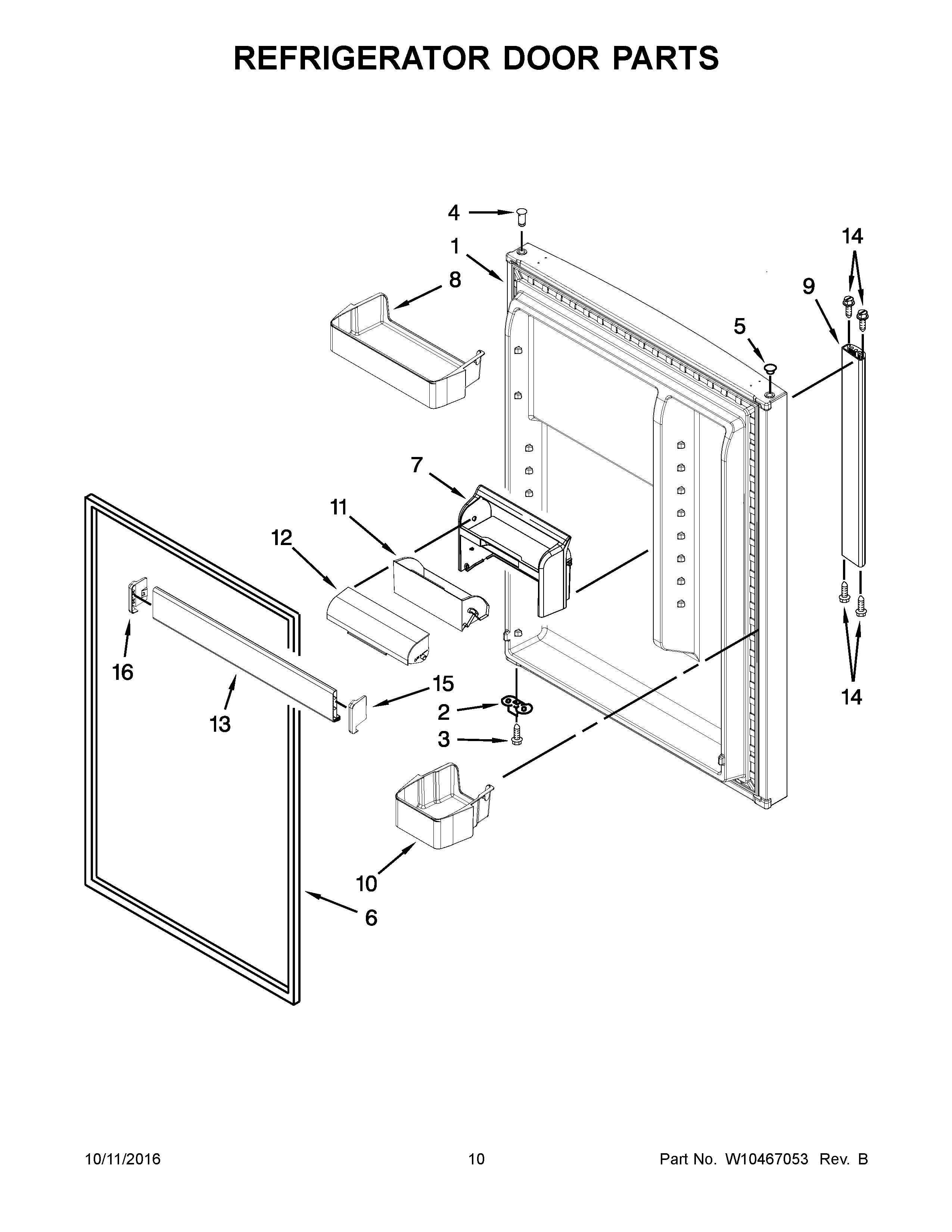

WRT771RWYM01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1BREFRIGERATOR DOOR (INCLUDES ITEMS 4, 5, 6 & 9) (STAINLESS)
1AREFRIGERATOR DOOR (INCLUDES ITEMS 4, 5, 6 & 9) (BLACK)
1REFRIGERATOR DOOR (INCLUDES ITEMS 4, 5, 6 & 9) (WHITE)
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4W11189115 Whirlpool Refrigerator Thimble
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5BPLUG, HINGE SLEEVE (GREY)
5AWP2212651 Whirlpool Refrigerator Button Plug
6BW10249195 Whirlpool Refrigerator Door Gasket
62159061 Whirlpool Refrigerator Door Gasket
6A2177311 Whirlpool Refrigerator Magnetic Door Gasket
7HOUSING, COMPARTMENT
8WPW10308868 Whirlpool Refrigerator Door Bin
9HANDLE, EMBEDDED
10WPW10308869 Whirlpool Door Bin
11BIN, TILT OUT
12WPW10308843 Whirlpool Refrigerator Door Compressor
13WPW10469911 Whirlpool Refrigerator Door Trim
14WP488163 Whirlpool Refrigerator Screw
15CAP, TRIM END (RIGHT HAND)
16WPW10338485 Whirlpool Refrigerator End Cap
