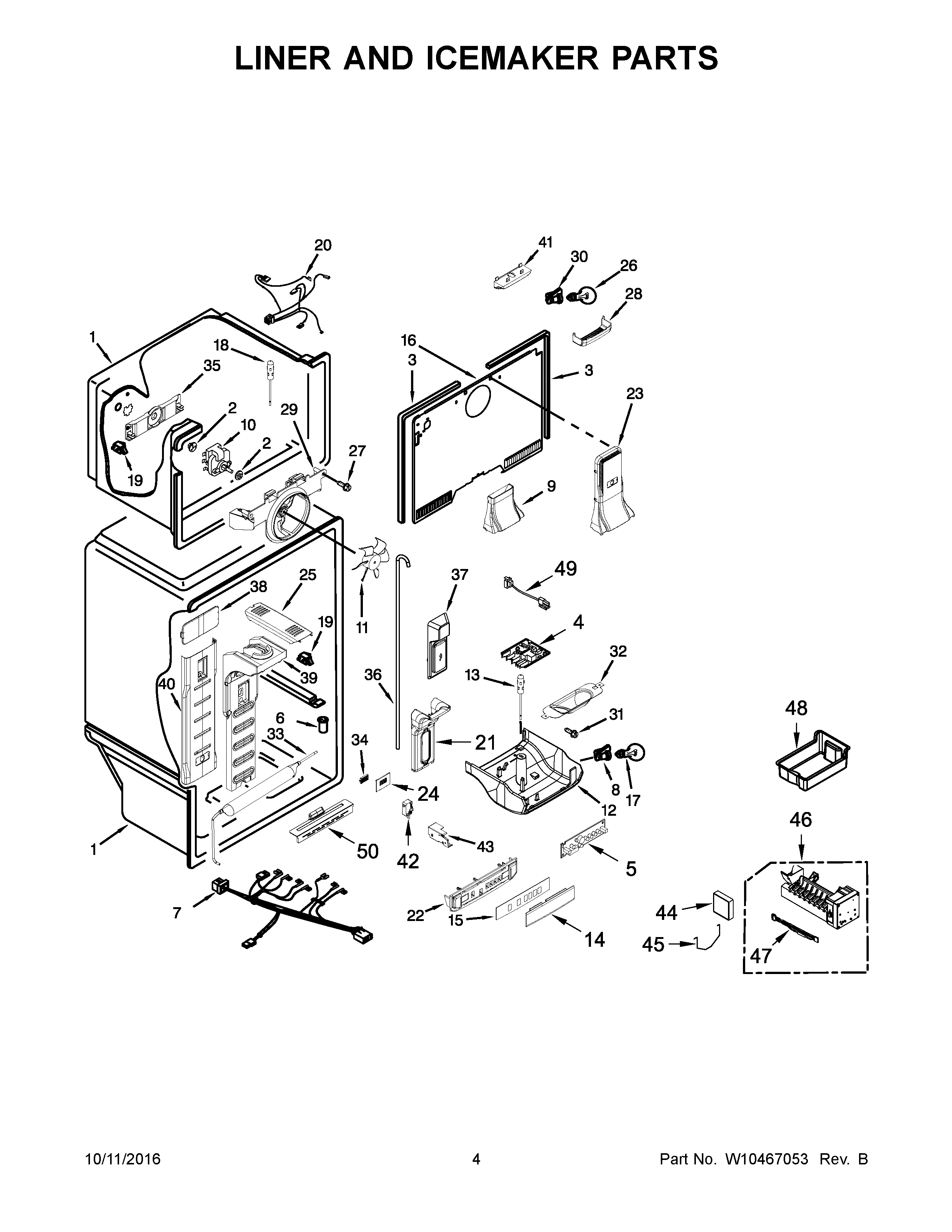

WRT771RWYW01 03 – LINER AND ICEMAKER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WPW10392194-includeCORE Whirlpool WPW10392194 Refrigerator Electronic Control Board + Core
5	WPW10336519-includeCORE Whirlpool WPW10336519 Refrigerator Electronic Control Board + Core
6	WP2210509 Whirlpool Refrigerator Tub Valve
7	W10557784 Whirlpool Wire Harness
8	WPW10191429 Whirlpool Refrigerator Socket
9	ASSEMBLY, TOWER CONNECTION
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10316942 Whirlpool Refrigerator Control Box
13	WPW10384183 Whirlpool Thermistor
14	LENS, FASCIA
15	OVERLAY
16	COVER, EVAPORATOR
17	WPA3073101 Whirlpool Light Bulb
18	THERMISTOR-REFRIGERATOR
19	W11384469 Whirlpool Door Switch
20	WPW10487766 Whirlpool Refrigerator Wire Harness
21	WPW10305175 Whirlpool Refrigerator Cover
22	FASCIA, CONTROL
23	TOWER, AIR
24	WPW10330850 Whirlpool Refrigerator Grille
25	LIGHT COVER, RC
26	W10914194 Whirlpool Refrigerator Light Bulb
27	WP488163 Whirlpool Refrigerator Screw
28	WPW10313918 Whirlpool Refrigerator Light Lens
29	W10850162 Whirlpool Refrigerator Orifice
30	W11661565 Whirlpool Refrigerator Socket
31	WP489174 Whirlpool Refrigerator Screw
32	2223680 Whirlpool Refrigerator Shield
33	WPW10364161 Whirlpool Refrigerator Reservoir
34	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
35	2254454 Whirlpool Refrigerator Bracket
36	WATER LINE, DISPENSER
37	W11243624 Whirlpool Refrigerator Cover
38	W10336009 Whirlpool Refrigerator Cover
39	WPW10395376 Whirlpool Refrigerator Air Tower
40	WPW10356895 Whirlpool Refrigerator Cover
41	WPW10313917 Whirlpool Refrigerator Housing
42	WP12575501 Whirlpool Refrigerator Micro Switch
43	W11362531 Whirlpool Refrigerator Cover
44	WPW10289690 Whirlpool Ice Maker Cover
45	WP627792 Whirlpool Refrigerator Shut Off Arm
46	4317943 Whirlpool Refrigerator Ice Maker Assembly
47	W11643622 Whirlpool Wire Harness
48	WPW10425538 Whirlpool Refrigerator Ice Pan
49	W10579721 Whirlpool Wire Harness
50	W10345375 Whirlpool Cover Assembly
