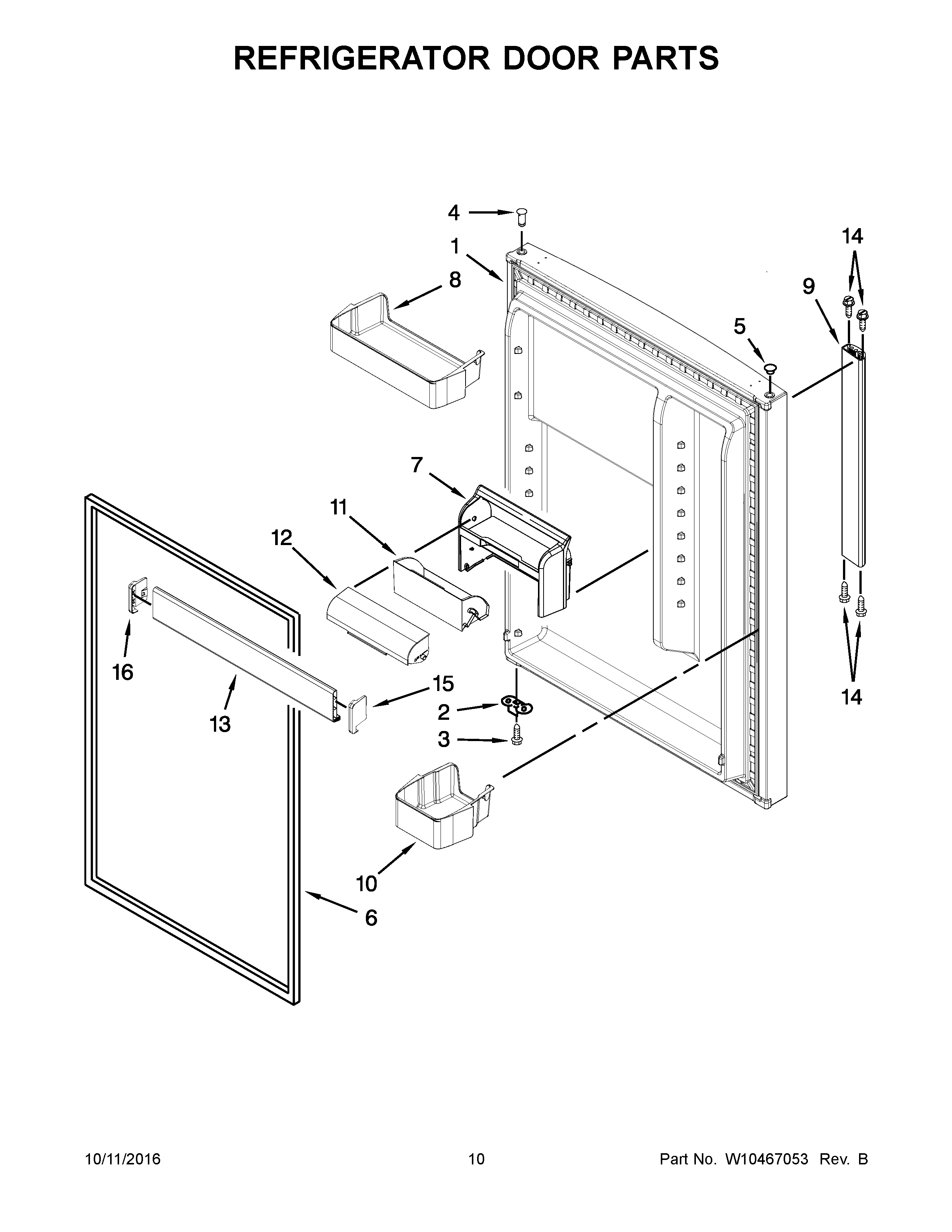

WRT771RWYW01 06 – REFRIGERATOR DOOR PARTSadmin2025-04-26T11:13:18+00:00WRT771RWYW01 06 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1B | REFRIGERATOR DOOR (INCLUDES ITEMS 4, 5, 6 & 9) (STAINLESS) |
| 1A | REFRIGERATOR DOOR (INCLUDES ITEMS 4, 5, 6 & 9) (BLACK) |
| 1 | REFRIGERATOR DOOR (INCLUDES ITEMS 4, 5, 6 & 9) (WHITE) |
| 2 | W11745278 Whirlpool Bracket |
| 3 | WP681249 Whirlpool Screw Assembly |
| 4 | W11189115 Whirlpool Refrigerator Thimble |
| 5 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 5B | PLUG, HINGE SLEEVE (GREY) |
| 5A | WP2212651 Whirlpool Refrigerator Button Plug |
| 6B | W10249195 Whirlpool Refrigerator Door Gasket |
| 6 | 2159061 Whirlpool Refrigerator Door Gasket |
| 6A | 2177311 Whirlpool Refrigerator Magnetic Door Gasket |
| 7 | HOUSING, COMPARTMENT |
| 8 | WPW10308868 Whirlpool Refrigerator Door Bin |
| 9 | HANDLE, EMBEDDED |
| 10 | WPW10308869 Whirlpool Door Bin |
| 11 | BIN, TILT OUT |
| 12 | WPW10308843 Whirlpool Refrigerator Door Compressor |
| 13 | WPW10469911 Whirlpool Refrigerator Door Trim |
| 14 | WP488163 Whirlpool Refrigerator Screw |
| 15 | CAP, TRIM END (RIGHT HAND) |
| 16 | WPW10338485 Whirlpool Refrigerator End Cap |
