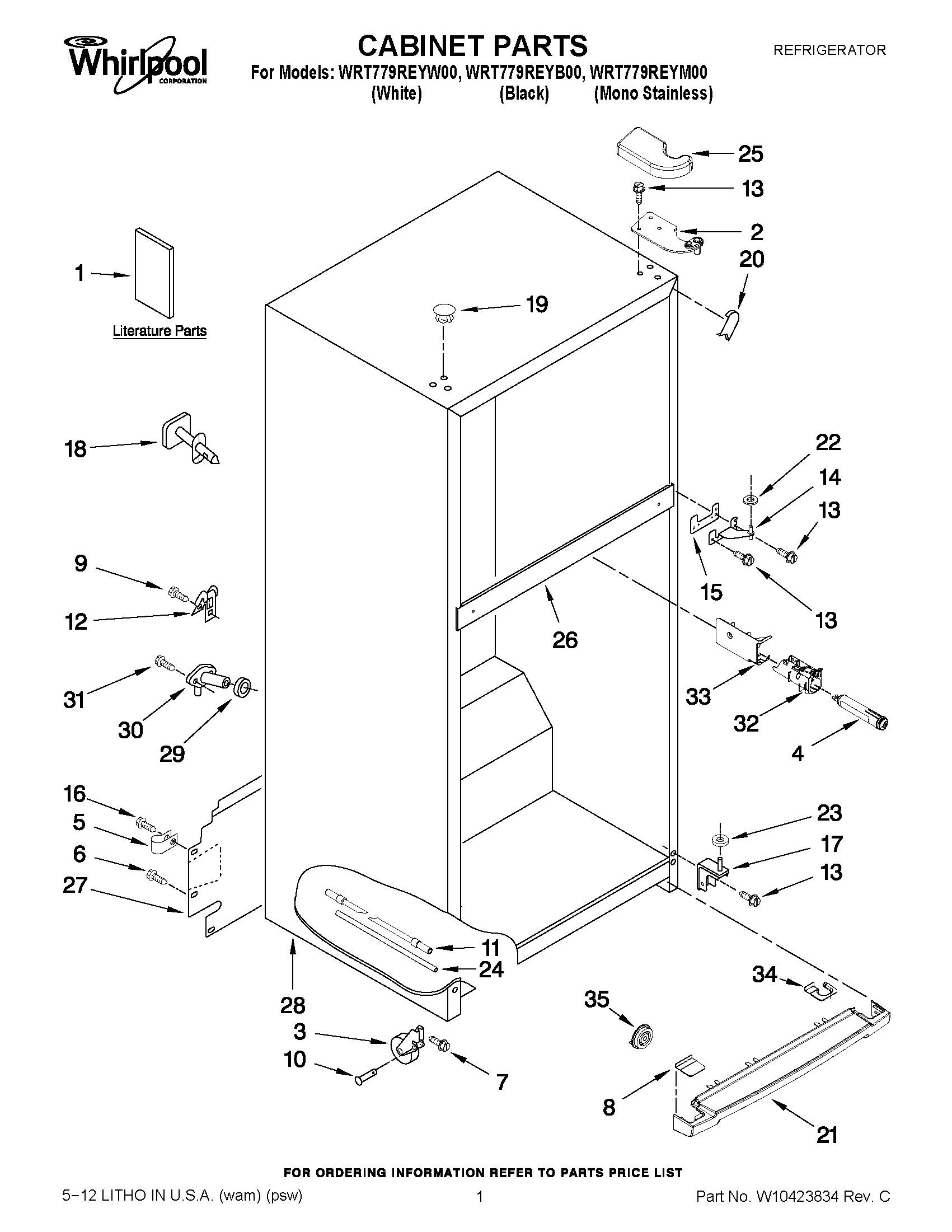

WRT779REYB00 01 – CABINET PARTS

Products

Position	Product
1	ENERGY LABEL
1	USE & CARE GUIDE
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489427 Whirlpool Refrigerator Screw
7	W10850698 Whirlpool Refrigerator Screw
8	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
8	W10353930 Whirlpool Refrigerator Grill End Cap
8	WPW10353932 Whirlpool Refrigerator Grille Endcap
9	WP489442 Whirlpool Refrigerator Screw
10	W11594405 Whirlpool Axle
11	TUBE, FILTER INLET
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14	WP2254618 Whirlpool Center Door Hinge
15	WP2183852 Whirlpool Refrigerator Shim
16	WP489464 Whirlpool Refrigerator Screw
17	WP2254473 Whirlpool Refrigerator Door Hinge
19	WP2151652 Whirlpool Refrigerator Button Plug
19	WP2183998 Whirlpool Refrigerator Button Plug
19	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
20	W10851579 Whirlpool Refrigerator Filler
20	WPW10283959 Whirlpool Refrigerator Filler
20	W11252732 Whirlpool Refrigerator Filler
21	WPW10300127 Whirlpool Refrigerator Grille
21	WPW10353935 Whirlpool Refrigerator Grille
21	WPW10353933 Whirlpool Refrigerator Grille
22	WP489467 Whirlpool Hinge Shim
23	WP487576 Whirlpool Washer
24	WPW10306394 Whirlpool Refrigerator Water Tube
25	COVER, HINGE (WHITE LS)
25	W10353950A Whirlpool Refrigerator Cover
25	W10353947A Whirlpool Refrigerator Cover
25	W10331560A Whirlpool Refrigerator Cover
25	W10353945A Whirlpool Refrigerator Cover
25	W10353948A Whirlpool Refrigerator Cover
27	W10636716 Whirlpool Refrigerator Cover Unit
28	CABINET (NOT A SERVICEABLE PART)
29	WP1106508 Whirlpool Refrigerator Gasket
30	W11292468 Whirlpool Refrigerator Fitting
31	WP488729 Whirlpool Refrigerator Door Screw
32	W10844267 Whirlpool Refrigerator Housing
33	WPW10306392 Whirlpool Refrigerator Filter Cover
34	ENDCAP, GRILLE HINGE (WHITE)
34	ENDCAP, GRILLE HINGE (BLACK)
34	ENDCAP, GRILLE HINGE (MIDNIGHT GREY)
35	W10331226 Whirlpool Refrigerator Clip
